Single Feedthroughs

Product Collection

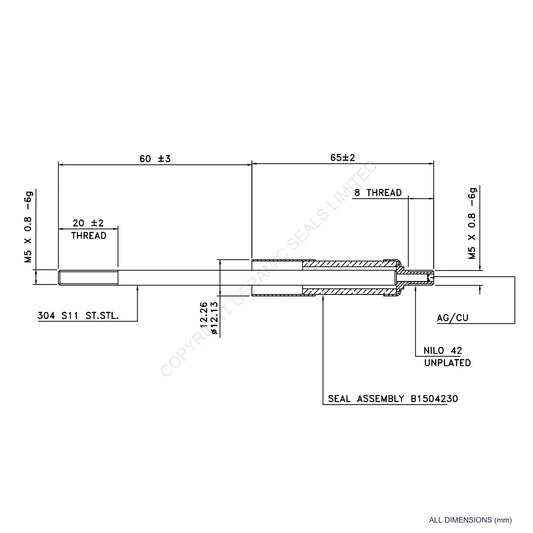

  • 15kV Seal Assembly

    15kV Seal Assembly

    15kV Seal Assembly

    Working Voltage: 15.0kV Current Rating: 15A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 15A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 12.16/12.13mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV
  • 15kV Single Feedthrough Flanged

    15kV Single Feedthrough Flanged

    15kV Single Feedthrough Flanged

    Working Voltage: 15.0kV Current Rating: 15A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 15A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV
  • 15kV Double Feedthrough Flanged

    15kV Double Feedthrough Flanged

    15kV Double Feedthrough Flanged

    Working Voltage: 15.0kV Current Rating: 15A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 15A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

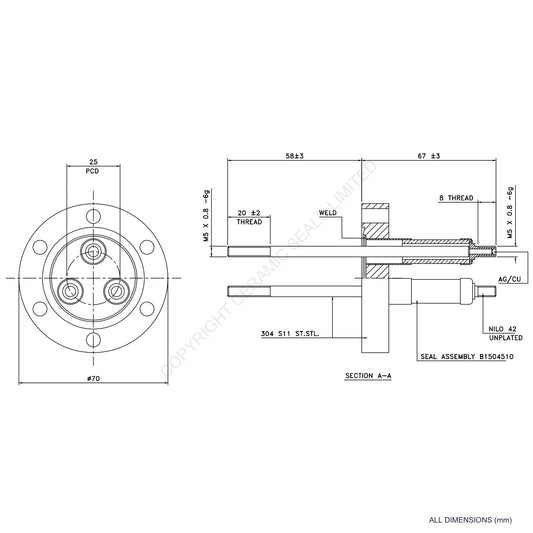

  • 15kV Three Way Feedthrough Flanged

    15kV Three Way Feedthrough Flanged

    15kV Three Way Feedthrough Flanged

    Working Voltage: 15.0kV Current Rating: 15A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 15A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 3
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV
  • 15kV Four Way Feedthrough Flanged

    15kV Four Way Feedthrough Flanged

    15kV Four Way Feedthrough Flanged

    Working Voltage: 15.0kV Current Rating: 15A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 15A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 4
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

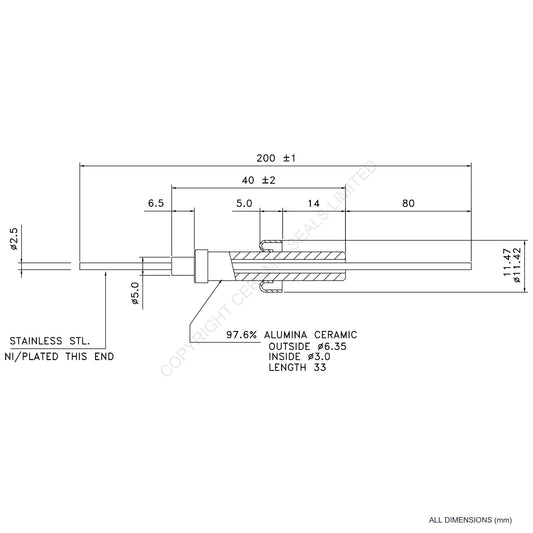

  • 8kV Metal Ceramic Seal

    8kV Metal Ceramic Seal

    8kV Metal Ceramic Seal

    Working Voltage: 8.0kV Current Rating: 7A Termination: Skirt (Weld)
    Conductor Material Stainless Steel
    Current Rating 7A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 8.0kV

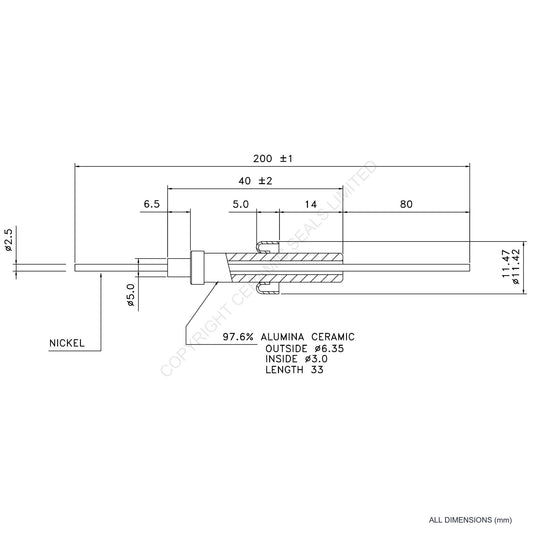

  • 8kV Metal Ceramic Seal

    8kV Metal Ceramic Seal

    8kV Metal Ceramic Seal

    Working Voltage: 8.0kV Current Rating: 20A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 20A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 8.0kV
  • 8kV Metal Ceramic Seal

    8kV Metal Ceramic Seal

    8kV Metal Ceramic Seal

    Working Voltage: 8.0kV Current Rating: 40A Termination: Skirt (Weld)
    Conductor Material OFHC Copper
    Current Rating 40A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 8.0kV

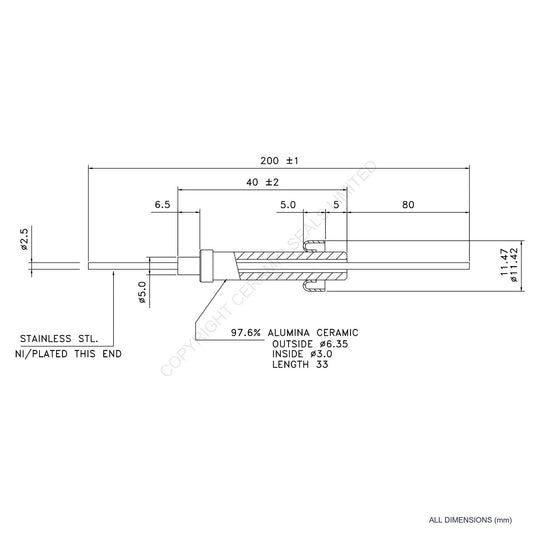

  • 15kV Metal Ceramic Seal

    15kV Metal Ceramic Seal

    15kV Metal Ceramic Seal

    Working Voltage: 15.0kV Current Rating: 7A Termination: Skirt (Weld)
    Conductor Material Stainless Steel
    Current Rating 7A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

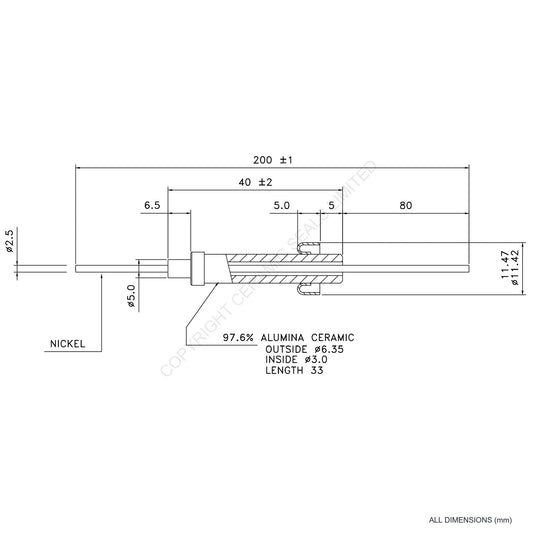

  • 15kV Metal Ceramic Seal

    15kV Metal Ceramic Seal

    15kV Metal Ceramic Seal

    Working Voltage: 15.0kV Current Rating: 20A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 20A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

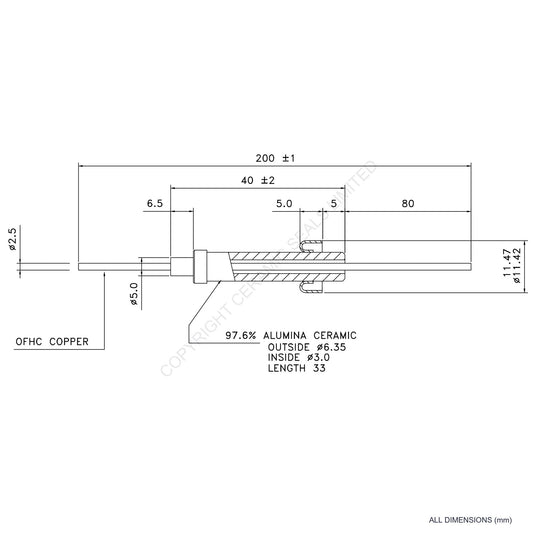

  • 15kV Metal Ceramic Seal

    15kV Metal Ceramic Seal

    15kV Metal Ceramic Seal

    Working Voltage: 15.0kV Current Rating: 40A Termination: Skirt (Weld)
    Conductor Material OFHC Copper
    Current Rating 40A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

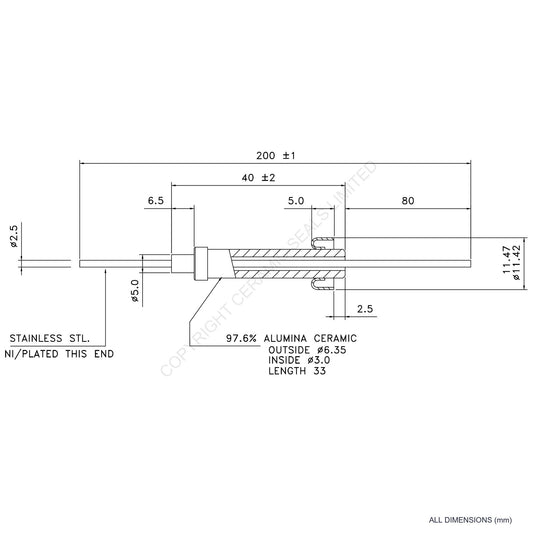

  • 20kV Metal Ceramic Seal

    20kV Metal Ceramic Seal

    20kV Metal Ceramic Seal

    Working Voltage: 20.0kV Current Rating: 7A Termination: Skirt (Weld)
    Conductor Material Stainless Steel
    Current Rating 7A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 20.0kV
