Multi-pin

Product Collection

  • 9 Way Plug

    9 Way Plug

    9 Way Plug

    No. of Pins: 9 Breakdown Voltage: 7.0kV
    Breakdown Voltage Centre Pin To Ground 7.0kV
    Breakdown Voltage Pin To Ground 7.0kV
    Breakdown Voltage Pin To Pin 7.0kV
    Current Rating 1.4A
    Insulating Material PTFE
    Magnetic Yes
    Multi Pin Type Plug
    No Of Pins 9
    Termination Cable
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C

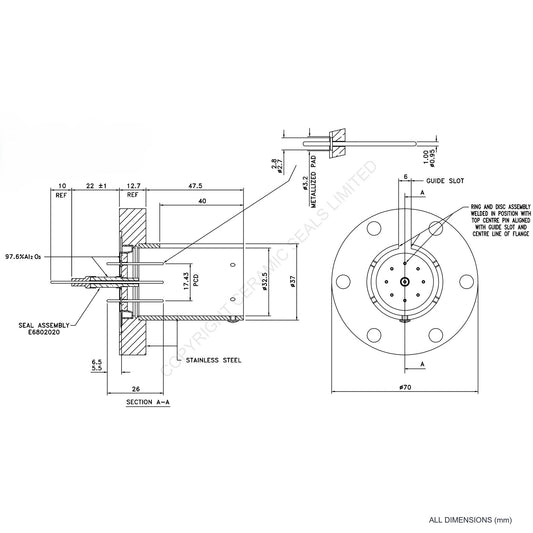

  • 9 Way Socket

    9 Way Socket

    9 Way Socket

    No. of Pins: 9 Breakdown Voltage: 5.0kV

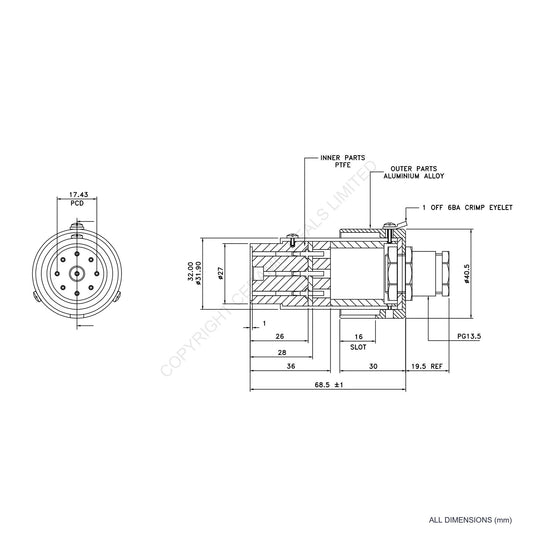

    Atmosphere Plug E2001810
    Breakdown Voltage Centre Pin To Ground 7.0kV
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 5.0kV
    Current Rating 1.4A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper Fixed
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Socket
    No Of Pins 9
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

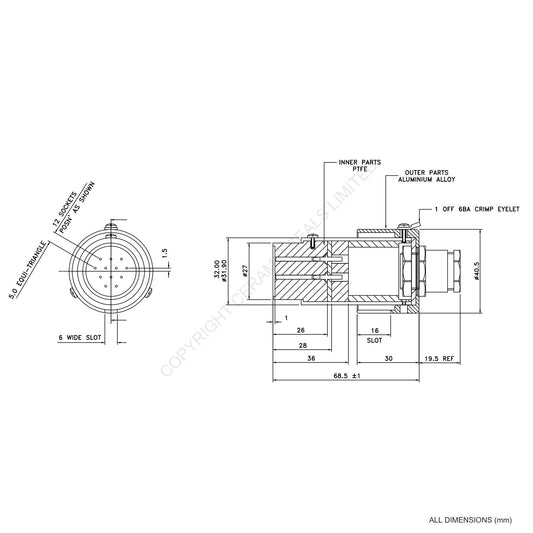

  • 12 Way Plug

    12 Way Plug

    12 Way Plug

    No. of Pins: 12 Breakdown Voltage: 5.0kV
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 5.0kV
    Current Rating 1.4A
    Insulating Material PTFE
    Magnetic Yes
    Multi Pin Type Plug
    No Of Pins 12
    Termination Cable
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C

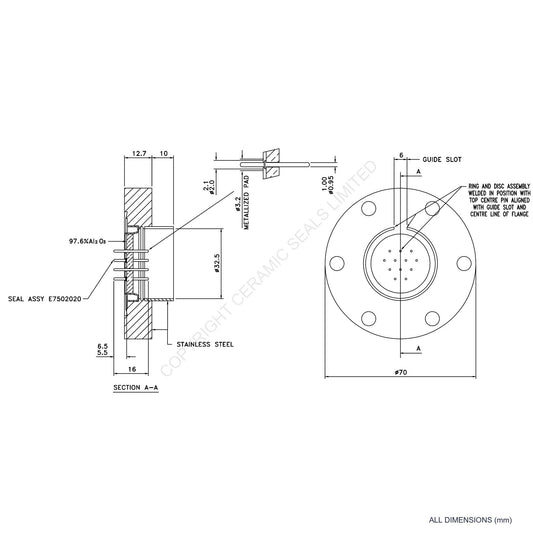

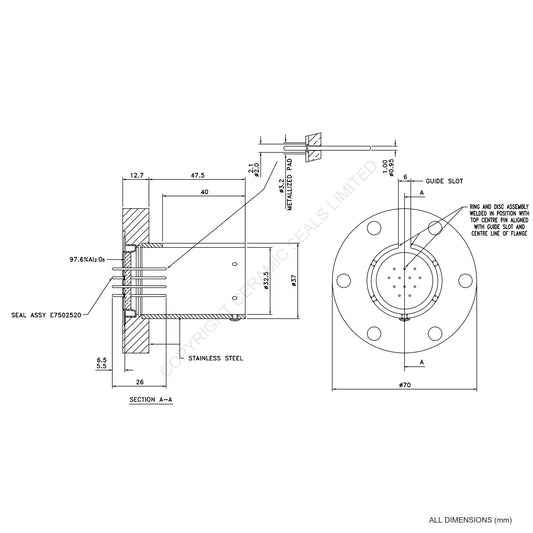

  • 12 Way Socket

    12 Way Socket

    12 Way Socket

    No. of Pins: 12 Breakdown Voltage: 3.0kV
    Atmosphere Plug E2001910
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper Fixed
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Socket
    No Of Pins 12
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9002040
    Working Temperature -196°C to 450°C

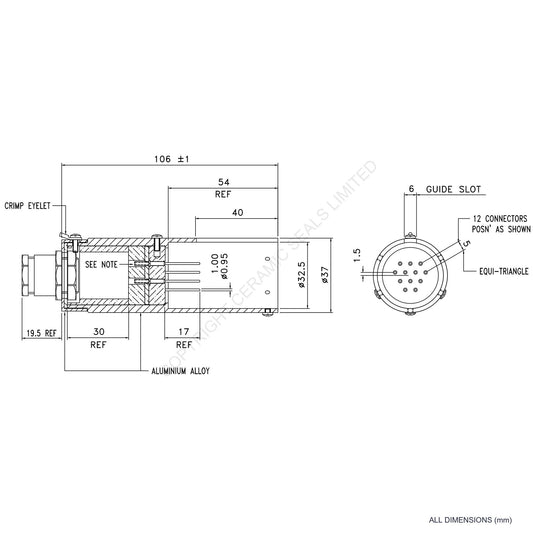

  • 12 Way Plug

    12 Way Plug

    12 Way Plug

    No. of Pins: 12 Breakdown Voltage: 5.0kV
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 5.0kV
    Current Rating 1.4A
    Insulating Material PTFE
    Magnetic Yes
    Multi Pin Type Plug
    No Of Pins 12
    Termination Cable
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
  • 12 Way Socket

    12 Way Socket

    12 Way Socket

    No. of Pins: 12 Breakdown Voltage: 3.0kV

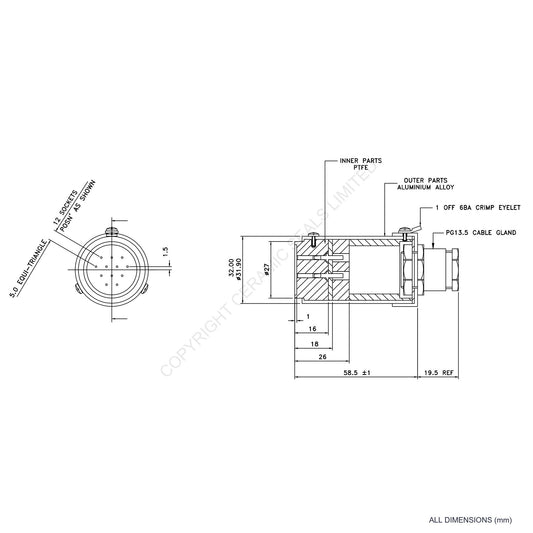

    Atmosphere Plug E2002010
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper Fixed
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Socket
    No Of Pins 12
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9002040
    Working Temperature -196°C to 450°C
  • 12 Way Plug

    12 Way Plug

    12 Way Plug

    No. of Pins: 12 Breakdown Voltage: 5.0kV
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 5.0kV
    Current Rating 1.4A
    Insulating Material PTFE
    Magnetic Yes
    Multi Pin Type Plug
    No Of Pins 12
    Termination Cable
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C

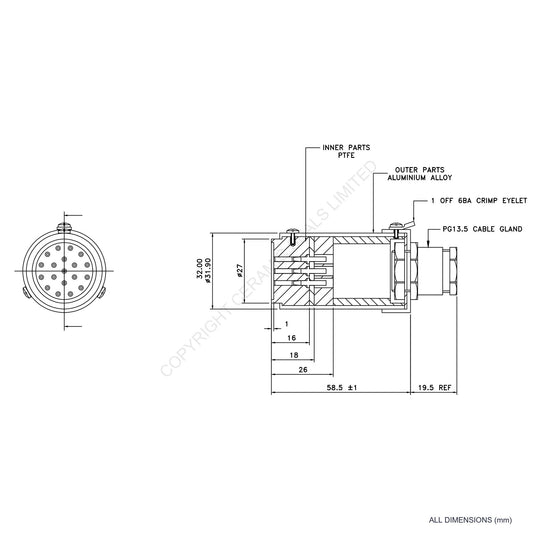

  • 19 Way Plug

    19 Way Plug

    19 Way Plug

    No. of Pins: 19 Breakdown Voltage: 2.0kV
    Breakdown Voltage Pin To Ground 2.0kV
    Breakdown Voltage Pin To Pin 2.0kV
    Current Rating 1.4A
    Insulating Material PTFE
    Magnetic Yes
    Multi Pin Type Plug
    No Of Pins 19
    Termination Cable
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C

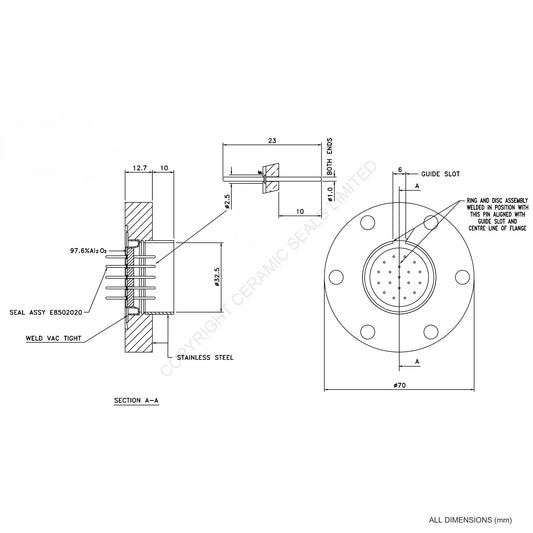

  • 19 Way Socket

    19 Way Socket

    19 Way Socket

    No. of Pins: 19 Breakdown Voltage: 1.5kV
    Atmosphere Plug E2004010
    Breakdown Voltage Pin To Ground 1.5kV
    Breakdown Voltage Pin To Pin 1.5kV
    Current Rating 1.4A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper Fixed
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Socket
    No Of Pins 19
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9003040
    Working Temperature -196°C to 450°C

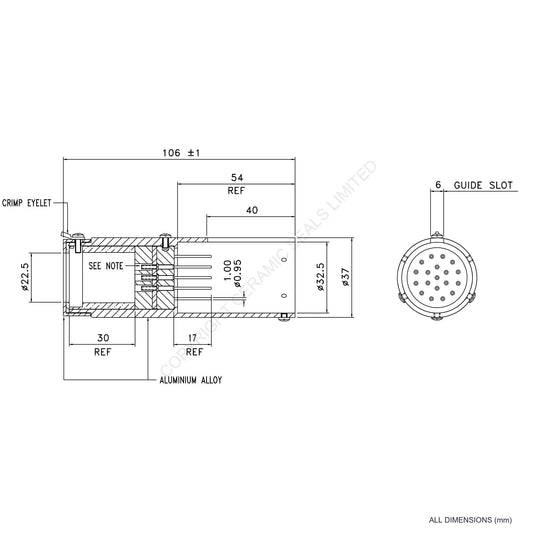

  • 19 Way Plug

    19 Way Plug

    19 Way Plug

    No. of Pins: 19 Breakdown Voltage: 2.0kV
    Breakdown Voltage Pin To Ground 2.0kV
    Breakdown Voltage Pin To Pin 2.0kV
    Current Rating 1.4A
    Insulating Material PTFE
    Magnetic Yes
    Multi Pin Type Plug
    No Of Pins 19
    Termination Cable
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C

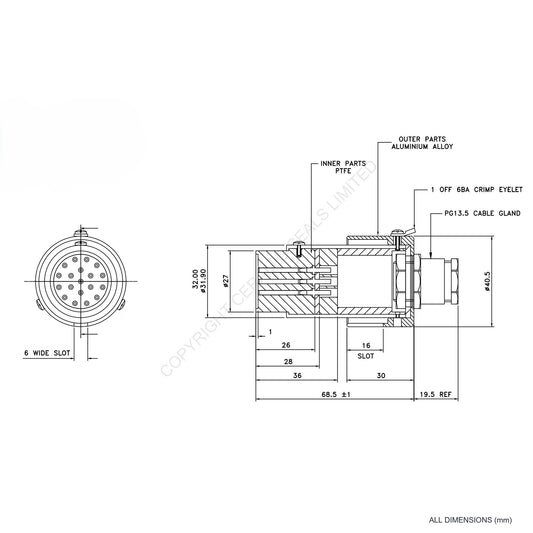

  • 19 Way Plug

    19 Way Plug

    19 Way Plug

    No. of Pins: 19 Breakdown Voltage: 1.5kV
    Breakdown Voltage Pin To Ground 1.5kV
    Breakdown Voltage Pin To Pin 1.5kV
    Current Rating 1.4A
    Insulating Material PTFE
    Magnetic Yes
    Multi Pin Type Plug
    No Of Pins 19
    Termination Cable
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C

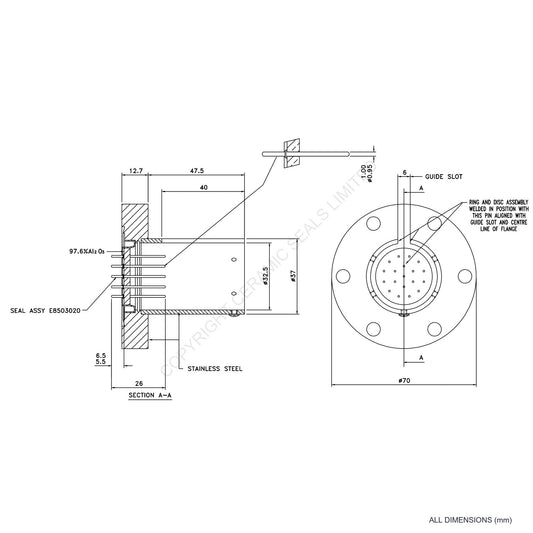

  • 19 Way Socket

    19 Way Socket

    19 Way Socket

    No. of Pins: 19 Breakdown Voltage: 1.5kV
    Atmosphere Plug E2004310
    Breakdown Voltage Pin To Ground 1.5kV
    Breakdown Voltage Pin To Pin 1.5kV
    Current Rating 1.4A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper Fixed
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Socket
    No Of Pins 19
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9003040
    Working Temperature -196°C to 450°C
