Multi-pin

Product Collection

  • 9 Pin Plug

    9 Pin Plug

    No. of Pins: 9 Breakdown Voltage: 10.0kV Termination: Cable
    Breakdown Voltage Pin To Ground 10.0kV
    Breakdown Voltage Pin To Pin 10.0kV
    Current Rating 2.5A
    Insulating Material PTFE
    Magnetic Yes
    Multi Pin Type Plug
    No Of Pins 9
    Termination Cable
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C

  • 9 Pin Socket

    9 Pin Socket

    No. of Pins: 9 Breakdown Voltage: 10.0kV Termination: CF Flange
    Atmosphere Plug E6004010
    Breakdown Voltage Pin To Ground 10.0kV
    Breakdown Voltage Pin To Pin 10.0kV
    Current Rating 2.5A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper Fixed
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Socket
    No Of Pins 9
    Termination CF Flange
    Termination Size 114mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9005020
    Working Temperature -196°C to 450°C
  • Twin Tube Seal

    Twin Tube Seal

    Twin Tube Seal

    No. of Pins: 2 Breakdown Voltage: 500V Termination: Tube (Weld)
    Breakdown Voltage Pin To Pin 500V
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 2
    Termination Tube (Weld)
    Termination Size 7.25/7.10mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

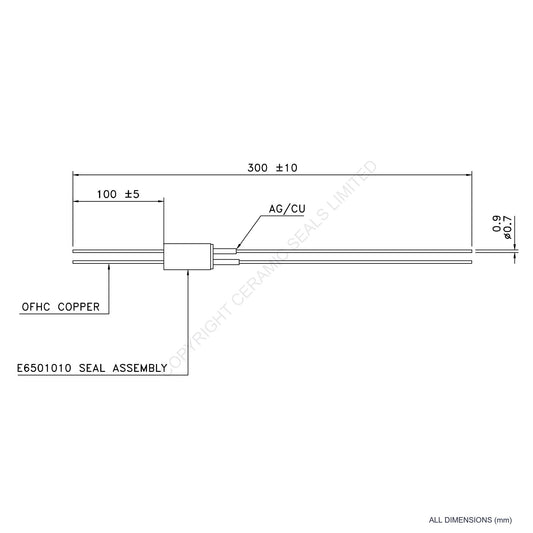

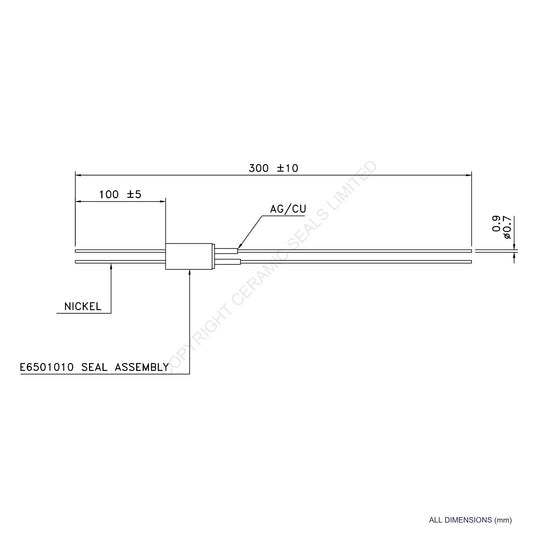

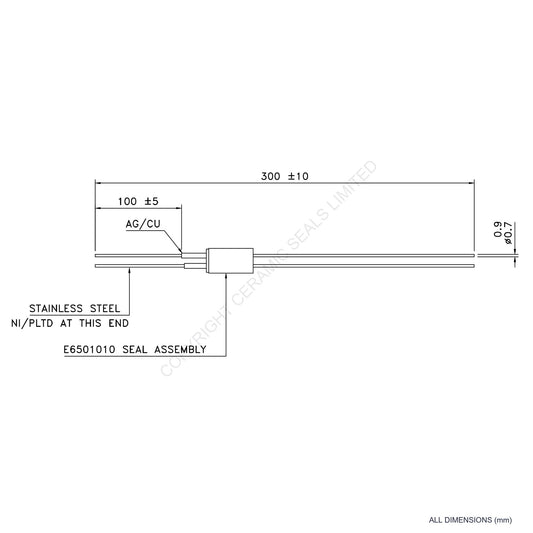

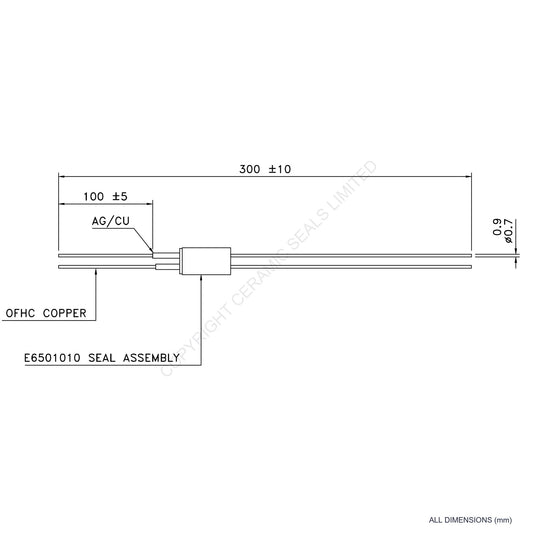

  • 2 Pin Feedthrough

    2 Pin Feedthrough

    2 Pin Feedthrough

    No. of Pins: 2 Breakdown Voltage: 500V Termination: Tube (Weld)
    Breakdown Voltage Pin To Pin 500V
    Current Rating 1A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 2
    Termination Tube (Weld)
    Termination Size 7.25/7.10mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • 2 Pin Feedthrough

    2 Pin Feedthrough

    2 Pin Feedthrough

    No. of Pins: 2 Breakdown Voltage: 500V Termination: Tube (Weld)
    Breakdown Voltage Pin To Pin 500V
    Current Rating 2.5A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 2
    Termination Tube (Weld)
    Termination Size 7.25/7.10mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • 2 Pin Feedthrough

    2 Pin Feedthrough

    2 Pin Feedthrough

    No. of Pins: 2 Breakdown Voltage: 500V Termination: Tube (Weld)
    Breakdown Voltage Pin To Pin 500V
    Current Rating 5A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 2
    Termination Tube (Weld)
    Termination Size 7.25/7.10mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • 2 Pin Feedthrough

    2 Pin Feedthrough

    2 Pin Feedthrough

    No. of Pins: 2 Breakdown Voltage: 500V Termination: Tube (Weld)
    Breakdown Voltage Pin To Pin 500V
    Current Rating 1A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 2
    Termination Tube (Weld)
    Termination Size 7.25/7.10mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • 2 Pin Feedthrough

    2 Pin Feedthrough

    2 Pin Feedthrough

    No. of Pins: 2 Breakdown Voltage: 500V Termination: Tube (Weld)
    Breakdown Voltage Pin To Pin 500V
    Current Rating 2.5A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 2
    Termination Tube (Weld)
    Termination Size 7.25/7.10mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • 2 Pin Feedthrough

    2 Pin Feedthrough

    2 Pin Feedthrough

    No. of Pins: 2 Breakdown Voltage: 500V Termination: Tube (Weld)
    Breakdown Voltage Pin To Pin 500V
    Current Rating 5A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 2
    Termination Tube (Weld)
    Termination Size 7.25/7.10mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

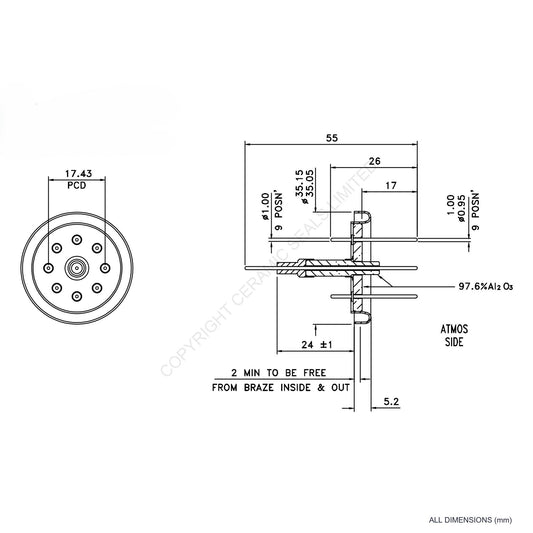

  • 9 Pin Feedthrough

    9 Pin Feedthrough

    9 Pin Feedthrough

    No. of Pins: 9 Breakdown Voltage: 5.0kV Termination: Skirt (Weld)
    Atmosphere Plug E2001810
    Breakdown Voltage Centre Pin To Ground 7.0kV
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 5.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 9
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

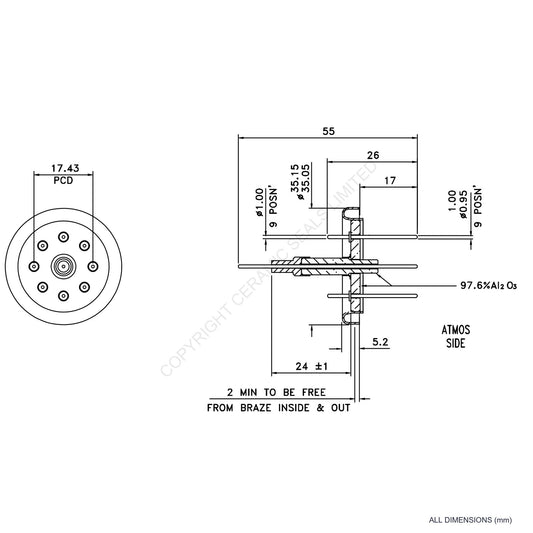

  • 9 Pin Feedthrough

    9 Pin Feedthrough

    9 Pin Feedthrough

    No. of Pins: 9 Breakdown Voltage: 5.0kV Termination: Skirt (Weld)
    Atmosphere Plug E2001810
    Breakdown Voltage Centre Pin To Ground 7.0kV
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 5.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 9
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • 11 Pin Feedthrough

    11 Pin Feedthrough

    11 Pin Feedthrough

    No. of Pins: 11 Breakdown Voltage: 3.0kV Termination: Skirt (Weld)
    Breakdown Voltage Centre Pin To Ground 4.0kV
    Breakdown Voltage Pin To Ground 3.0kV
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 11
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9002020
    Working Temperature -196°C to 450°C
