9 Pin Feedthrough
Working Voltage:
Current Rating: 1.4A
Conductor Material:
General Specifications
Atmosphere
Plug
E2001810
Breakdown
Voltage
Centre
Pin
To
Ground
7.0kV
Breakdown
Voltage
Pin
To
Ground
5.0kV
Breakdown
Voltage
Pin
To
Pin
5.0kV
Current
Rating
1.4A
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Multi
Pin
Type
Feedthrough
No
Of
Pins
9
Termination
Skirt (Weld)
Termination
Size
35.15/35.05mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Product Code: E6802020
9 Pin Feedthrough

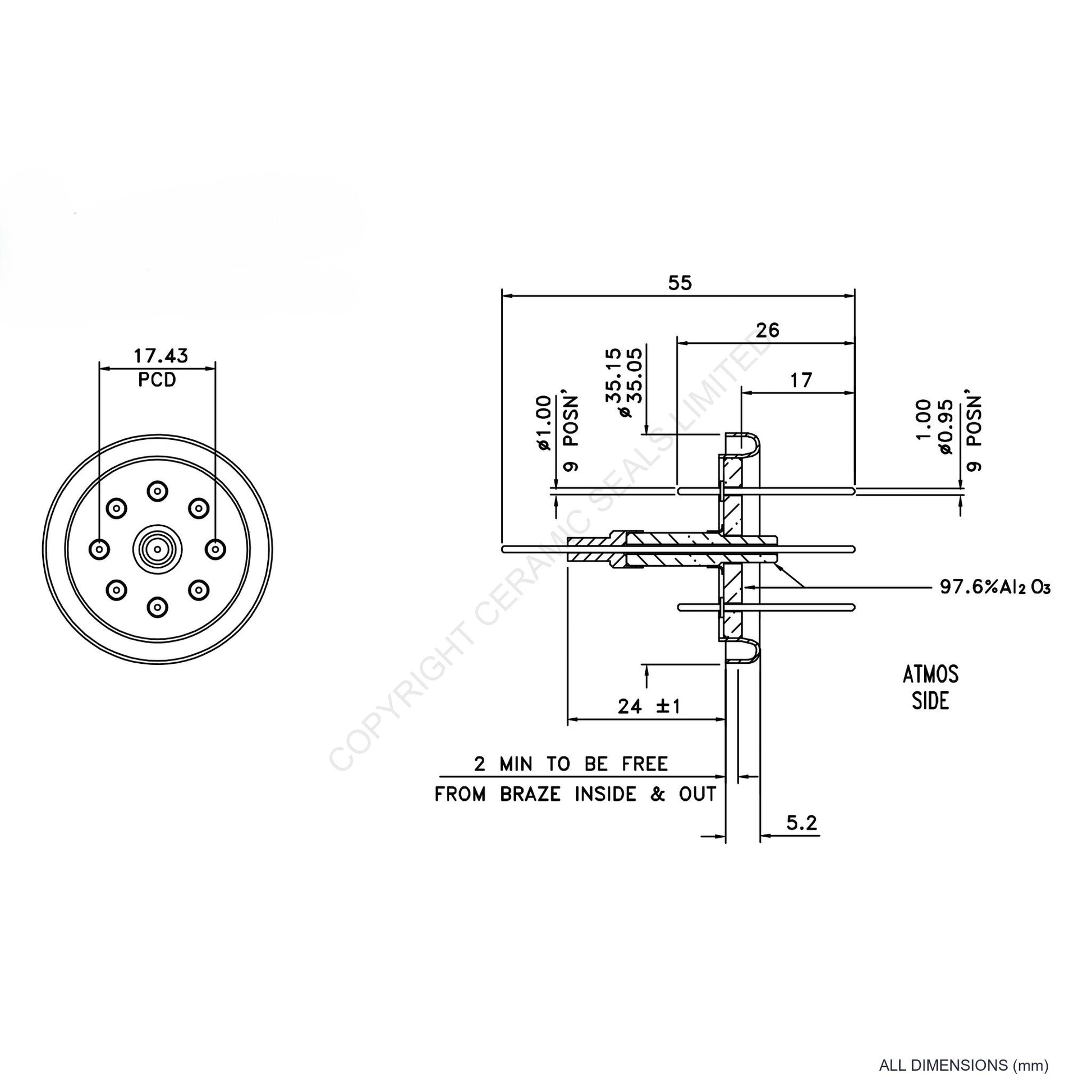

9 Pin Feedthrough with 35.15/35.05mm Skirt (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.
Atmosphere
Plug
E2001810
Breakdown
Voltage
Centre
Pin
To
Ground
7.0kV
Breakdown
Voltage
Pin
To
Ground
5.0kV
Breakdown
Voltage
Pin
To
Pin
5.0kV
Current
Rating
1.4A
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Multi
Pin
Type
Feedthrough
No
Of
Pins
9
Termination
Skirt (Weld)
Termination
Size
35.15/35.05mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
