Sapphire Viewports
[ { "target": "Uhv", "replacement": "U.H.V." } ]
Collection:
Sapphire Viewports
Product Collection
Single Feedthroughs
Multi-pin
Coaxial Connectors
Thermocouple
Electrical Isolators
Sapphire Viewports

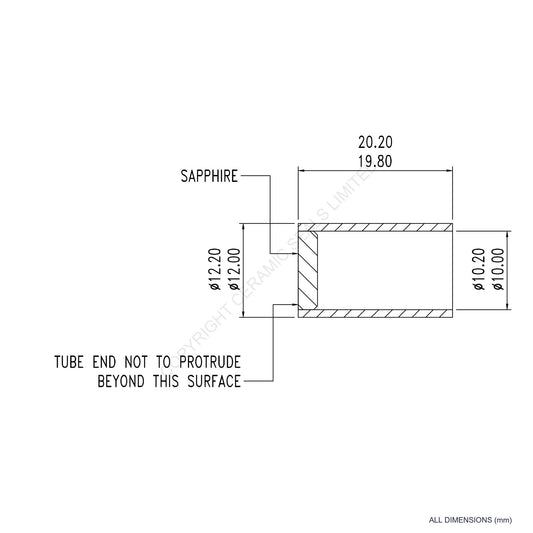

Viewport Weldable (9mm)
Viewport Weldable (9mm)
View Diameter:
9mm
Termination:
Tube (Weld)
Add to Quotation
Add
Sold out
Magnetic
Yes
Termination
Tube (Weld)
Termination Size
12.20/12.00mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport Material
Sapphire
View Diameter
9mm
Working Temperature
-196°C to 450°C

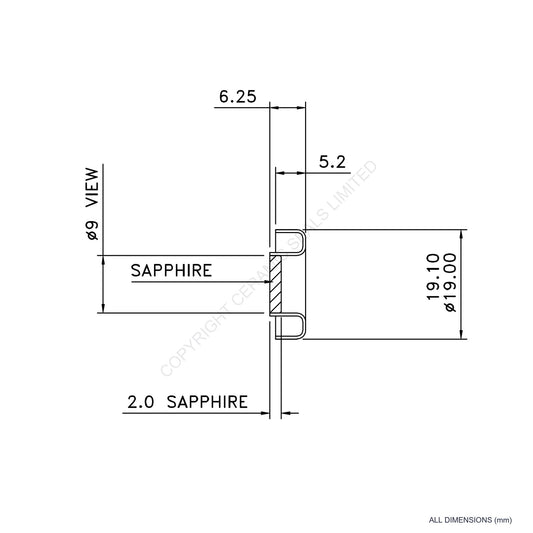

Viewport Weldable (9mm)
Viewport Weldable (9mm)
View Diameter:
9mm
Termination:
Skirt (Weld)
Add to Quotation
Add
Sold out
Magnetic
Yes
Termination
Skirt (Weld)
Termination Size
19.10/19.00mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport Material
Sapphire
View Diameter
9mm
Working Temperature
-196°C to 450°C

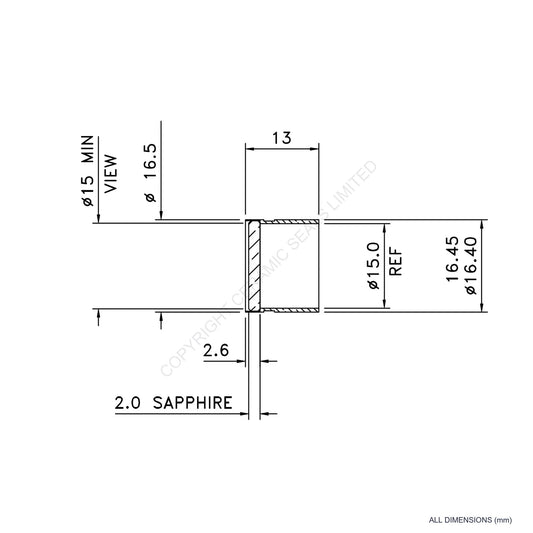

Viewport Weldable (15mm)
Viewport Weldable (15mm)
View Diameter:
15mm
Termination:
Tube (Weld)
Add to Quotation
Add
Sold out
Magnetic
Yes
Termination
Tube (Weld)
Termination Size
16.45/16.40mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport Material
Sapphire
View Diameter
15mm
Working Temperature
-196°C to 450°C

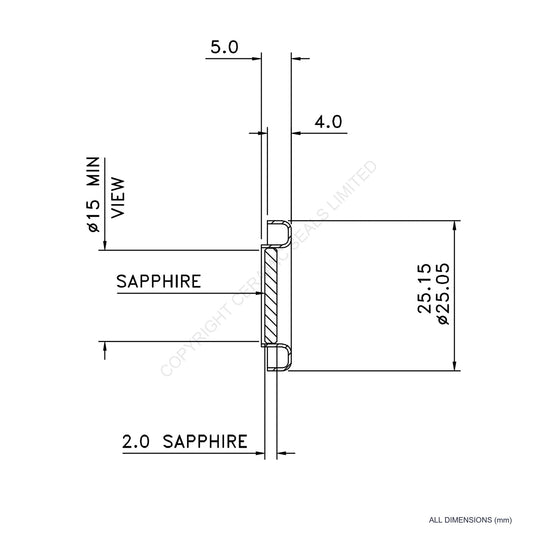

Viewport Weldable (15mm)
Viewport Weldable (15mm)
View Diameter:
15mm
Termination:
Skirt (Weld)
Add to Quotation
Add
Sold out
Magnetic
Yes
Termination
Skirt (Weld)
Termination Size
25.15/25.05mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport Material
Sapphire
View Diameter
15mm
Working Temperature
-196°C to 450°C

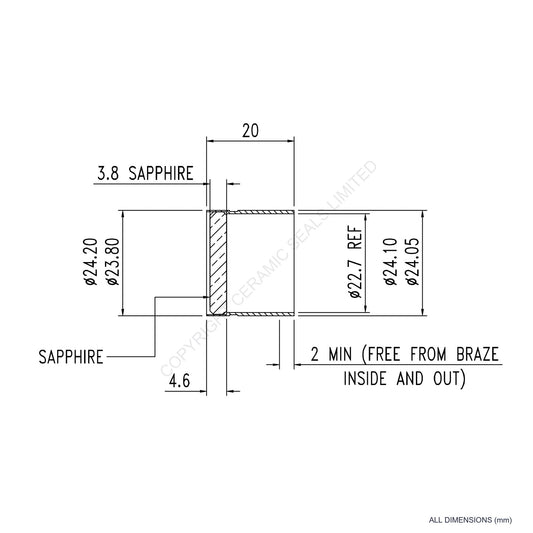

Viewport Weldable (20mm)
Viewport Weldable (20mm)
View Diameter:
20mm
Termination:
Tube (Weld)
Add to Quotation
Add
Sold out
Magnetic
Yes
Termination
Tube (Weld)
Termination Size
24.10/24.05mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport Material
Sapphire
View Diameter
20mm
Working Temperature
-196°C to 450°C

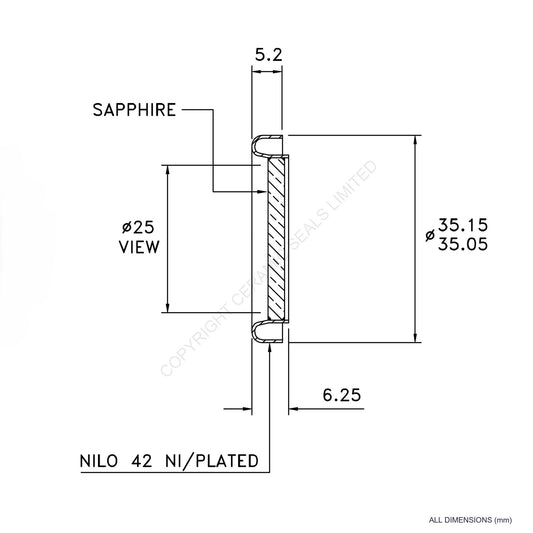

Viewport Weldable (25mm)
Viewport Weldable (25mm)
View Diameter:
25mm
Termination:
Skirt (Weld)
Add to Quotation
Add
Sold out
Magnetic
Yes
Termination
Skirt (Weld)
Termination Size
35.15/35.05mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport Material
Sapphire
View Diameter
25mm
Working Temperature
-196°C to 450°C

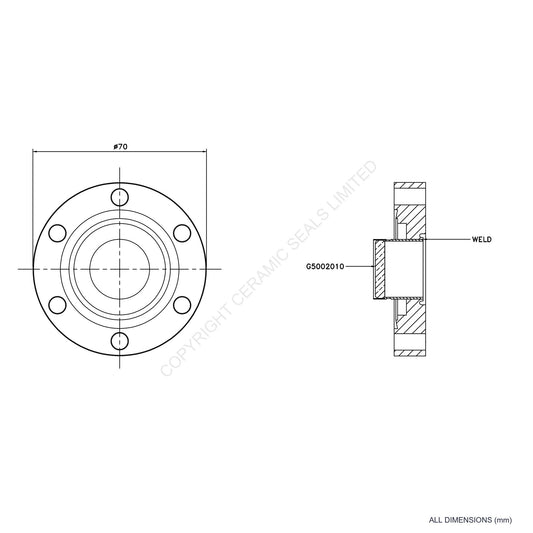

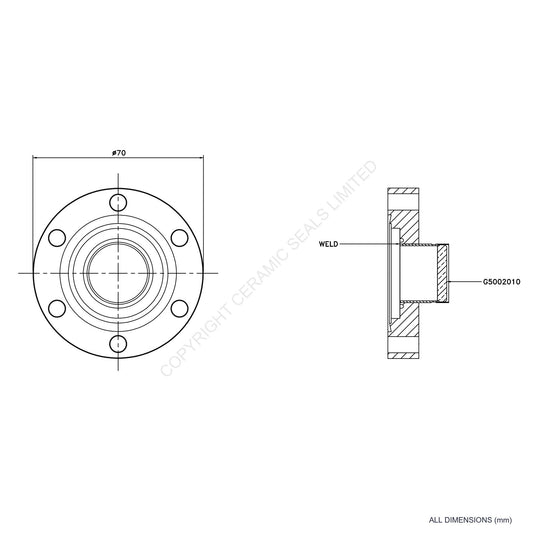

Viewport UHV Flanged (20mm)
Viewport UHV Flanged (20mm)
View Diameter:
20mm
Termination:
CF Flange
Add to Quotation
Add
Sold out
Flange Material
Stainless Steel (1.4307)
Gasket O Ring Material
Copper
Magnetic
Yes
Termination
CF Flange
Termination Size
70mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport Material
Sapphire
View Diameter
20mm
Working Temperature
-196°C to 450°C
Viewport UHV Flanged (20mm)
Viewport UHV Flanged (20mm)
View Diameter:
20mm
Termination:
CF Flange
Add to Quotation
Add
Sold out
Flange Material
Stainless Steel (1.4307)
Gasket O Ring Material
Copper
Magnetic
Yes
Termination
CF Flange
Termination Size
70mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport Material
Sapphire
View Diameter
20mm
Working Temperature
-196°C to 450°C
Viewport UHV Flanged (20mm)
Viewport UHV Flanged (20mm)
View Diameter:
20mm
Termination:
CF Flange
Add to Quotation
Add
Sold out
Flange Material
Stainless Steel (1.4307)
Gasket O Ring Material
Copper
Magnetic
Yes
Termination
CF Flange
Termination Size
70mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport Material
Sapphire
View Diameter
20mm
Working Temperature
-196°C to 450°C
Viewport UHV Flanged (20mm)
Viewport UHV Flanged (20mm)
View Diameter:
20mm
Termination:
CF Flange
Add to Quotation
Add
Sold out
Flange Material
Stainless Steel (1.4307)
Gasket O Ring Material
Copper
Magnetic
Yes
Termination
CF Flange
Termination Size
70mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport Material
Sapphire
View Diameter
20mm
Working Temperature
-196°C to 450°C

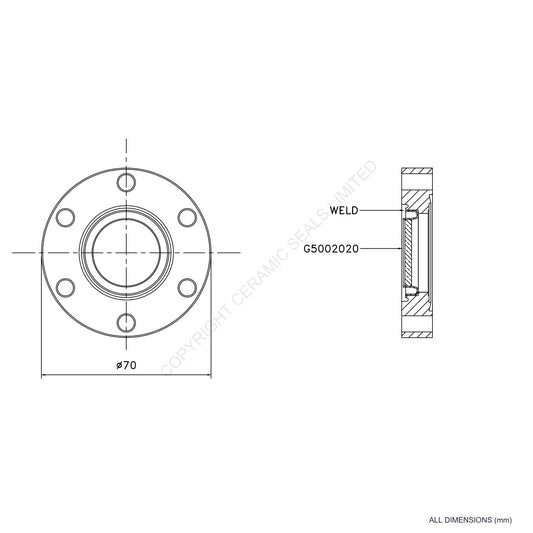

Viewport UHV Flanged (25mm)
Viewport UHV Flanged (25mm)
View Diameter:
25mm
Termination:
CF Flange
Add to Quotation
Add
Sold out
Flange Material
Stainless Steel (1.4307)
Gasket O Ring Material
Copper
Magnetic
Yes
Termination
CF Flange
Termination Size
70mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport Material
Sapphire
View Diameter
25mm
Working Temperature
-196°C to 450°C
Viewport UHV Flanged (25mm)
Viewport UHV Flanged (25mm)
View Diameter:
25mm
Termination:
CF Flange
Add to Quotation
Add
Sold out
Flange Material
Stainless Steel (1.4307)
Gasket O Ring Material
Copper
Magnetic
Yes
Termination
CF Flange
Termination Size
70mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport Material
Sapphire
View Diameter
25mm
Working Temperature
-196°C to 450°C
