Viewport UHV Flanged (25mm)
Working Voltage:
Current Rating:
Conductor Material:

General Specifications
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Magnetic
Yes
Termination
CF Flange
Termination
Size
70mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport
Material
Sapphire
View
Diameter
25mm
Working
Temperature
-196°C to 450°C
Product Code: G6003020

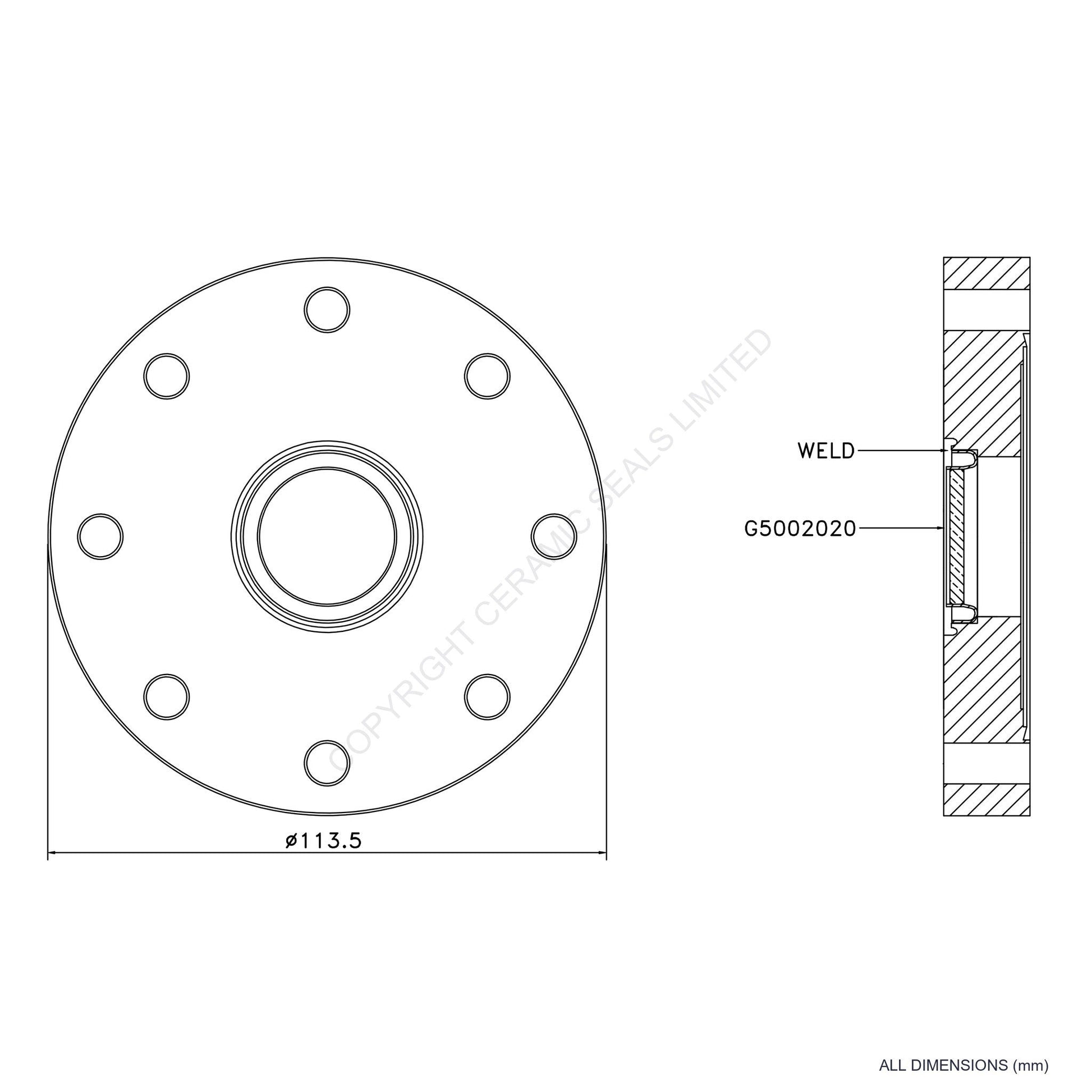

Viewport UHV Flanged (25mm)
Sapphire Viewport 25mm diameter with 70mm CF Flange termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Magnetic
Yes
Termination
CF Flange
Termination
Size
70mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport
Material
Sapphire
View
Diameter
25mm
Working
Temperature
-196°C to 450°C
