Viewport Weldable (15mm)
Working Voltage:
Current Rating:
Conductor Material:

General Specifications
Magnetic
Yes
Termination
Skirt (Weld)
Termination
Size
25.15/25.05mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport
Material
Sapphire
View
Diameter
15mm
Working
Temperature
-196°C to 450°C
Product Code: G5001520
Viewport Weldable (15mm)

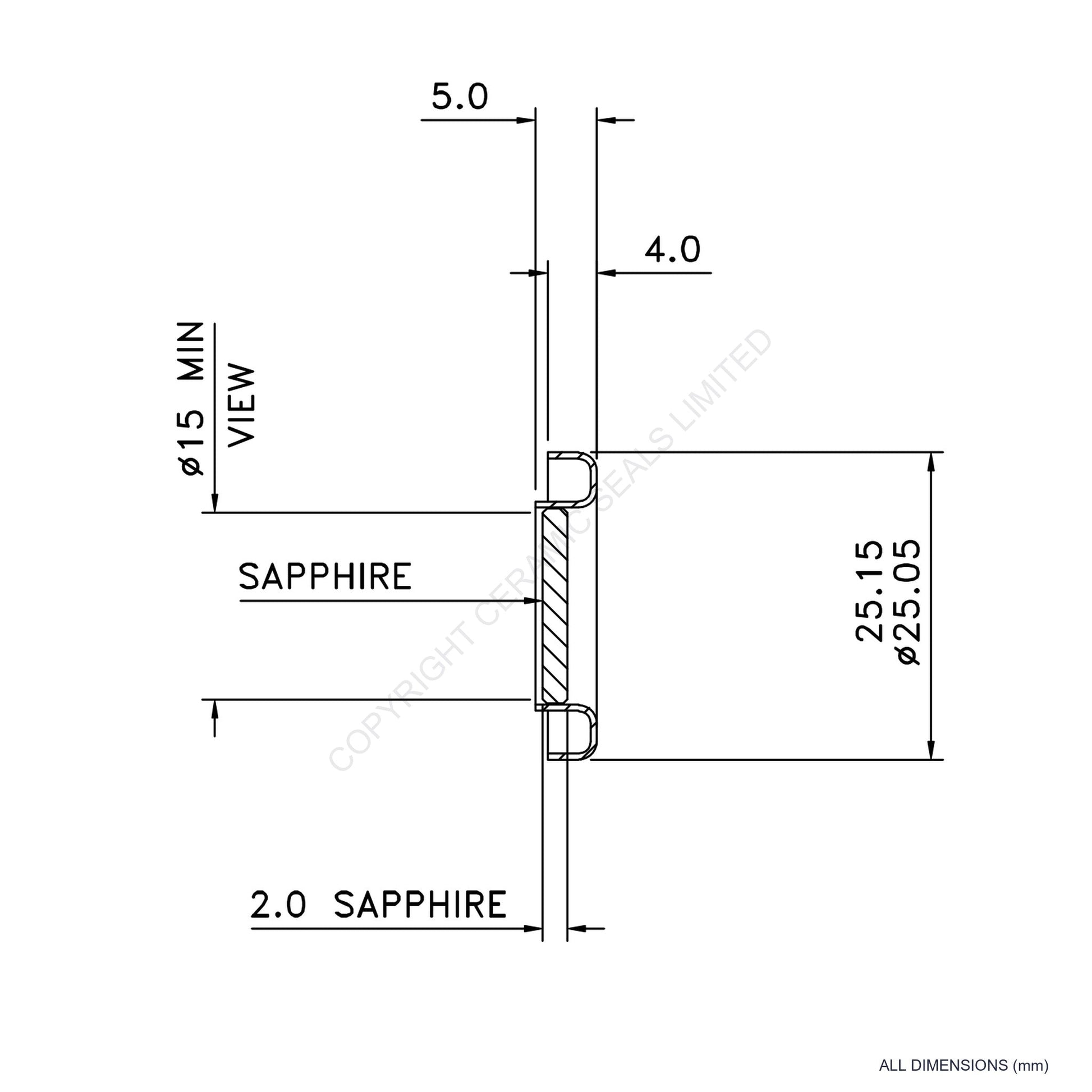

Sapphire Viewport 15mm diameter with 25.15/25.05mm Skirt (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Magnetic
Yes
Termination
Skirt (Weld)
Termination
Size
25.15/25.05mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport
Material
Sapphire
View
Diameter
15mm
Working
Temperature
-196°C to 450°C
