Viewport Weldable (9mm)

Working Voltage:

Current Rating:

Conductor Material:

1 1
Product Code: G5001010
Estimated Lead Time: Confirmed on Request

Product Description

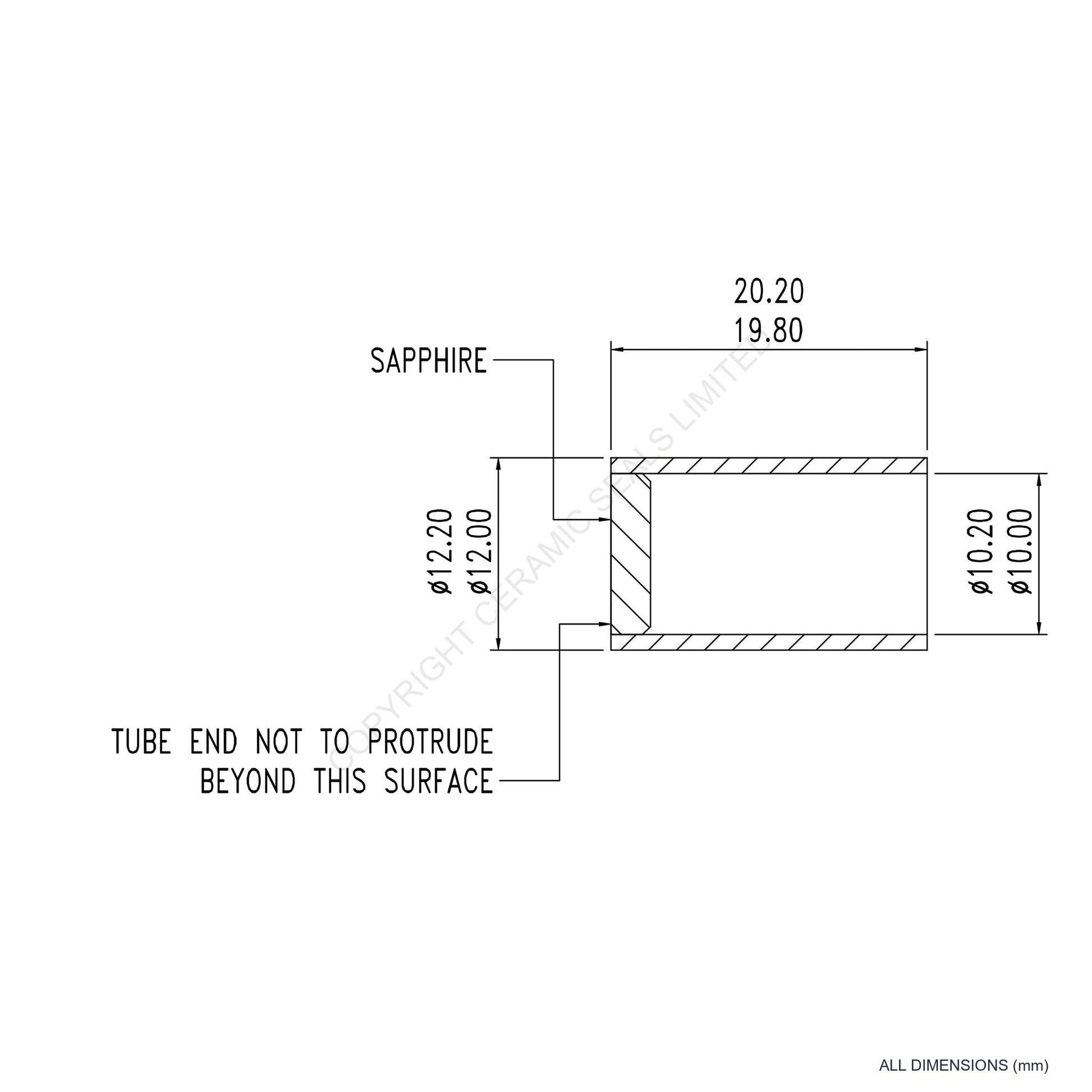

Sapphire Viewport 9mm diameter with 12.20/12.00mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Magnetic Yes
Termination Tube (Weld)
Termination Size 12.20/12.00mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Viewport Material Sapphire
View Diameter 9mm
Working Temperature -196°C to 450°C
