General Specifications
Breakdown
Voltage
Pin
To
Ground
1.5kV
Breakdown
Voltage
Pin
To
Pin
1.5kV
Current
Rating
1.4A
Insulating
Material
PTFE
Magnetic
Yes
Multi
Pin
Type
Plug
No
Of
Pins
19
Termination
Cable
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-20°C to 150°C
Product Code: E2004310

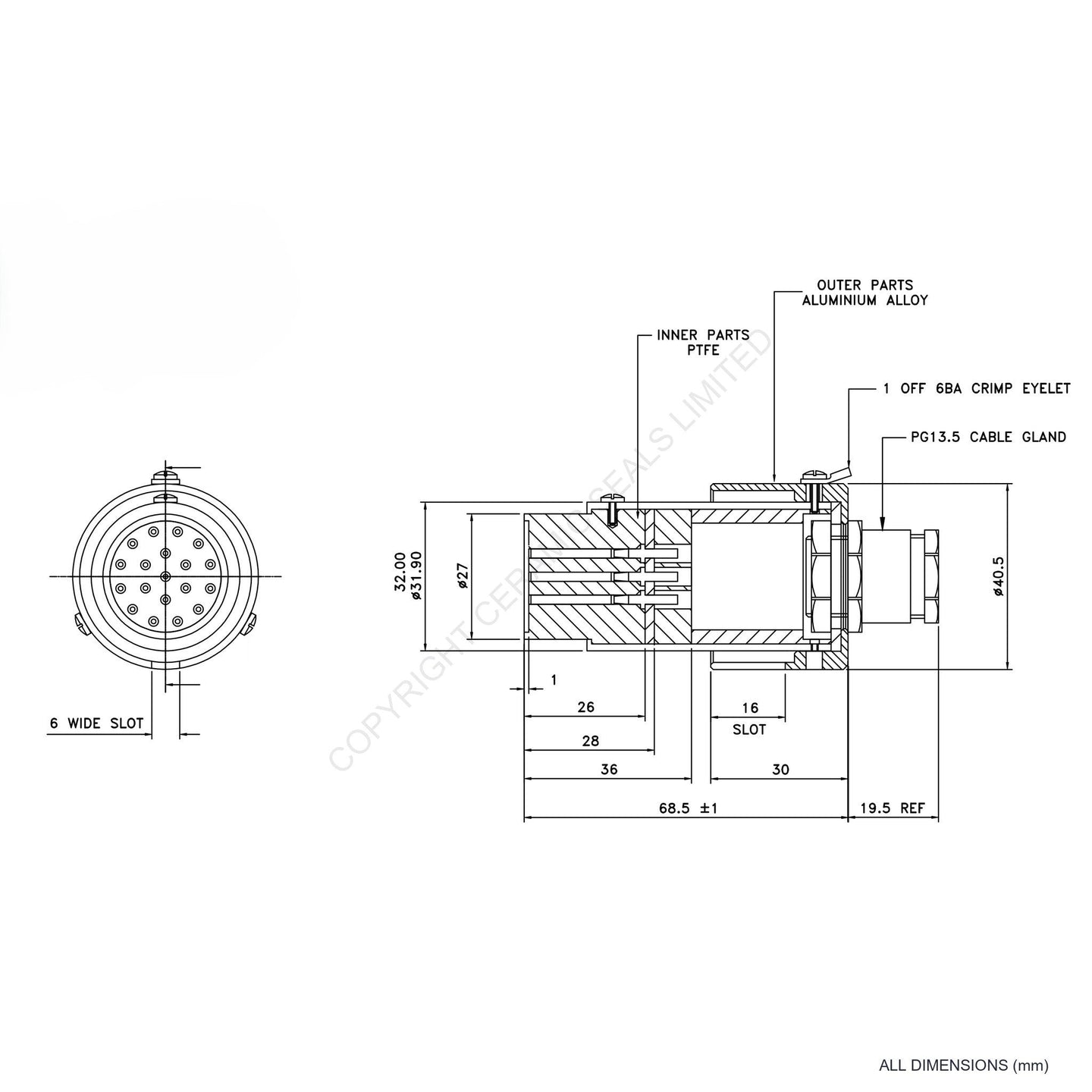

19 Way Plug
19 Pin Plug with Cable termination. Rated for a working temperature of -20°C to 150°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.
Breakdown
Voltage
Pin
To
Ground
1.5kV
Breakdown
Voltage
Pin
To
Pin
1.5kV
Current
Rating
1.4A
Insulating
Material
PTFE
Magnetic
Yes
Multi
Pin
Type
Plug
No
Of
Pins
19
Termination
Cable
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-20°C to 150°C
