Single Feedthroughs

Product Collection

  • 5kV Instrumentation Feedthrough

    5kV Instrumentation Feedthrough

    5kV Instrumentation Feedthrough

    Working Voltage: 5.0kV Current Rating: - Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 5.55/5.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 5.0kV

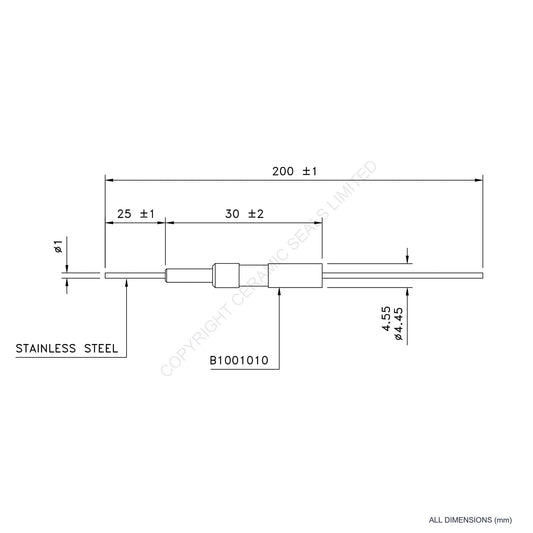

  • 2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    Working Voltage: 2.5kV Current Rating: 2A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 2A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 4.55/4.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

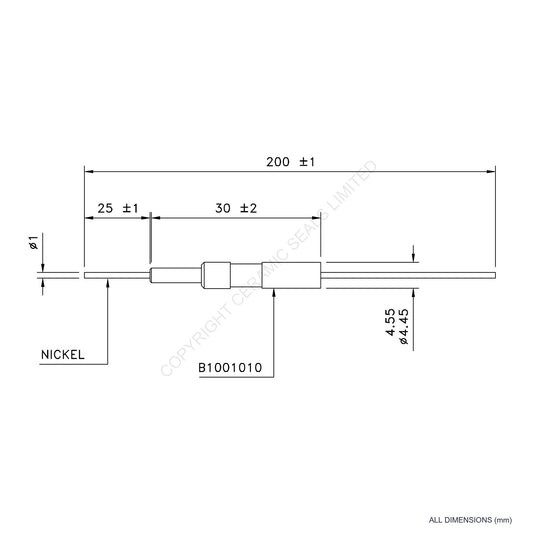

  • 2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    Working Voltage: 2.5kV Current Rating: 5A Termination: Tube (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 5A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 4.55/4.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV
  • 2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    Working Voltage: 2.5kV Current Rating: 10A Termination: Tube (Weld)
    Conductor Material OFHC Copper
    Current Rating 10A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 4.55/4.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

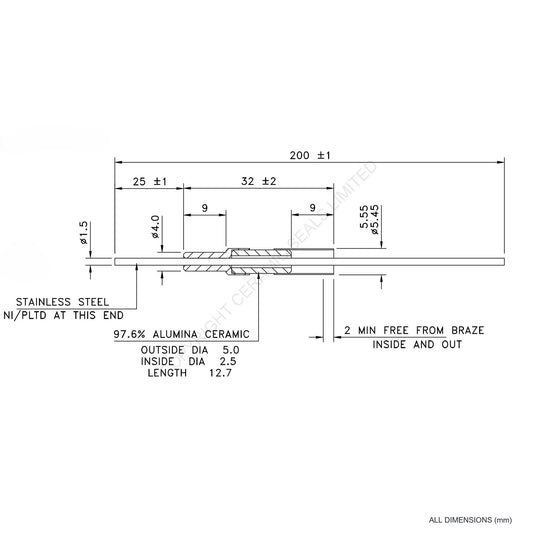

  • 2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    Working Voltage: 2.5kV Current Rating: 3A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 3A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 5.55/5.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

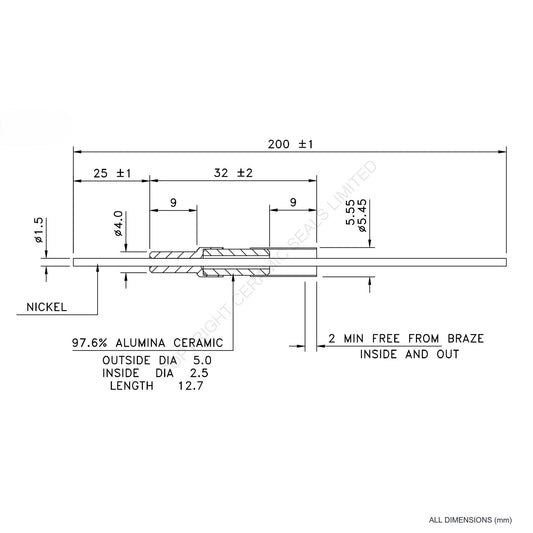

  • 2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    Working Voltage: 2.5kV Current Rating: 10A Termination: Tube (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 10A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 5.55/5.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

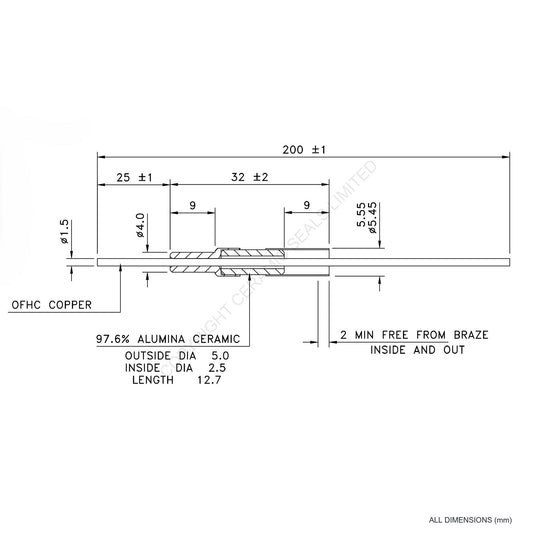

  • 2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    Working Voltage: 2.5kV Current Rating: 20A Termination: Tube (Weld)
    Conductor Material OFHC Copper
    Current Rating 20A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 5.55/5.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV
  • 2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    Working Voltage: 5.0kV Current Rating: 3A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 3A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 5.55/5.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 5.0kV
  • 2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    Working Voltage: 5.0kV Current Rating: 10A Termination: Tube (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 10A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 5.55/5.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 5.0kV
  • 2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    Working Voltage: 5.0kV Current Rating: 20A Termination: Tube (Weld)
    Conductor Material OFHC Copper
    Current Rating 20A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 5.55/5.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 5.0kV

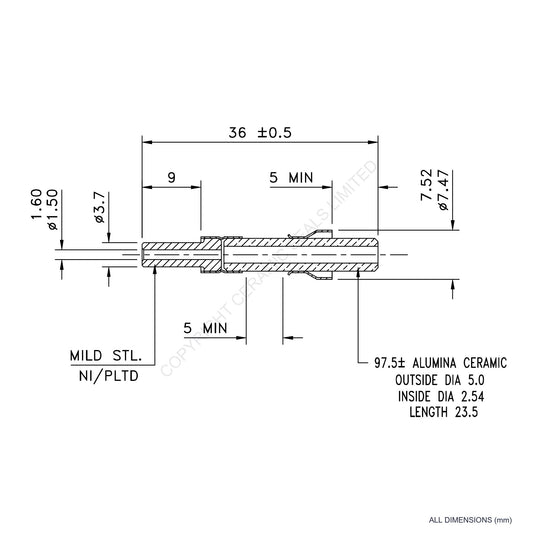

  • 2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    Working Voltage: 2.5kV Current Rating: - Termination: Skirt (Weld)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 7.52/7.47mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

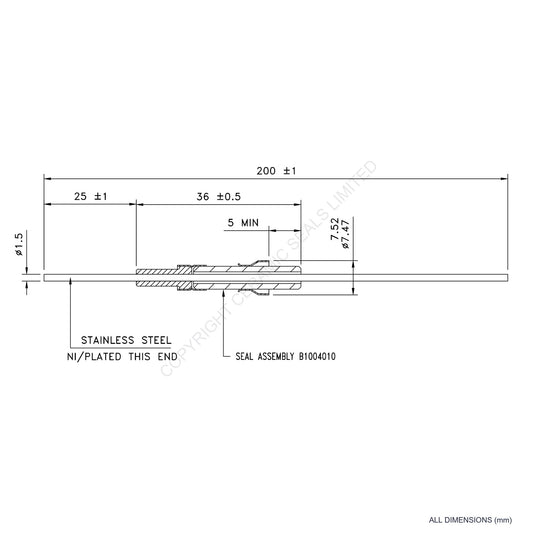

  • 2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    Working Voltage: 2.5kV Current Rating: 3A Termination: Skirt (Weld)
    Conductor Material Stainless Steel
    Current Rating 3A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 7.52/7.47mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV
