Single Feedthroughs

Product Collection

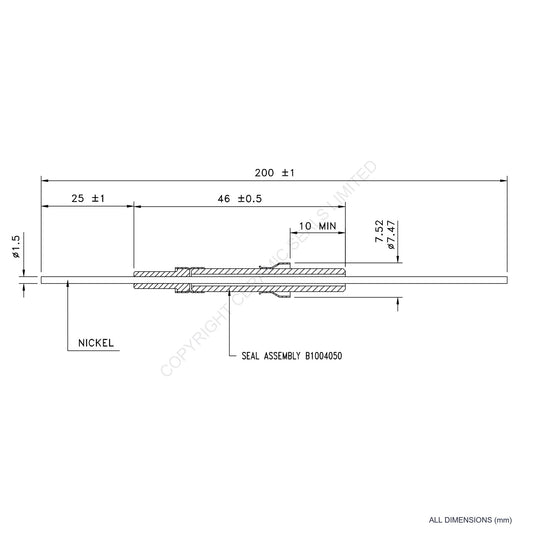

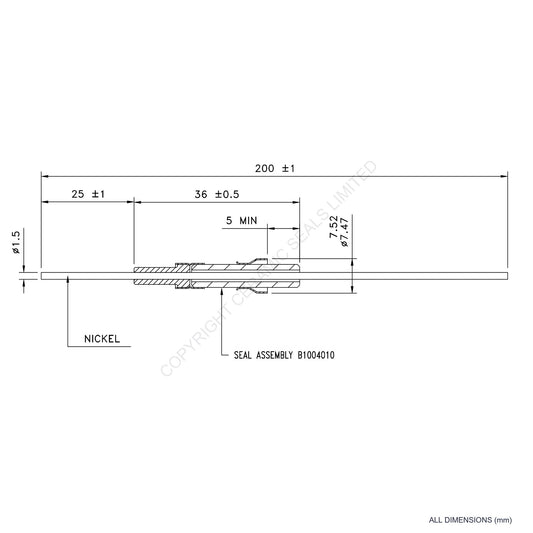

  • 2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    Working Voltage: 2.5kV Current Rating: 10A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 10A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 7.52/7.47mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

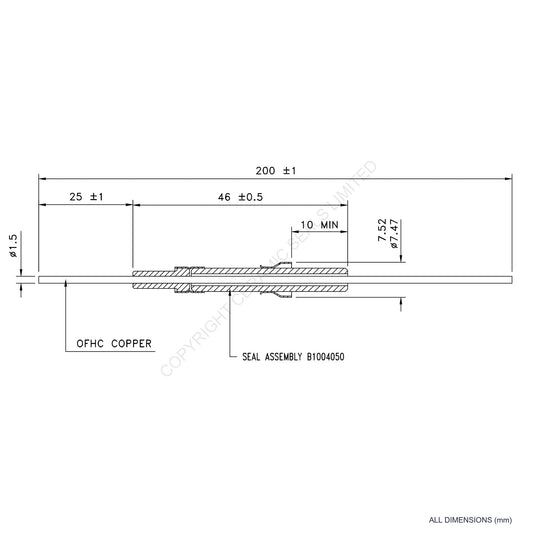

  • 2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    2.5kV Instrumentation Feedthrough

    Working Voltage: 2.5kV Current Rating: 20A Termination: Skirt (Weld)
    Conductor Material OFHC Copper
    Current Rating 20A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 7.52/7.47mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

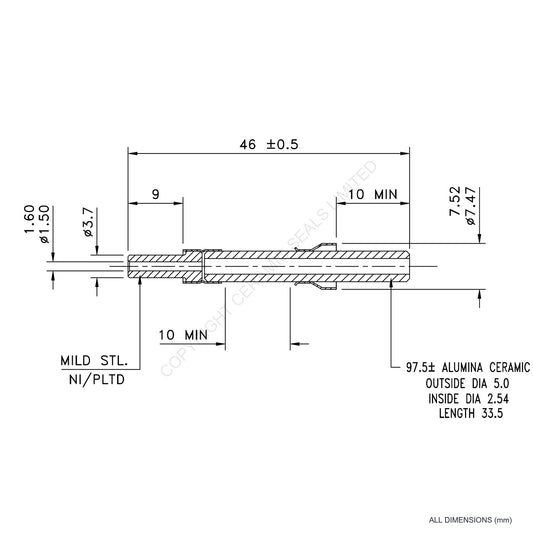

  • 5kV Instrumentation Feedthrough

    5kV Instrumentation Feedthrough

    5kV Instrumentation Feedthrough

    Working Voltage: 5.0kV Current Rating: - Termination: Skirt (Weld)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 7.52/7.47mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 5.0kV

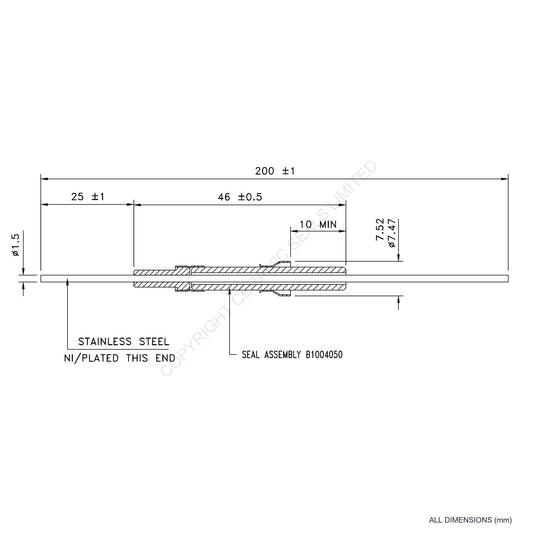

  • 5kV Instrumentation Feedthrough

    5kV Instrumentation Feedthrough

    5kV Instrumentation Feedthrough

    Working Voltage: 5.0kV Current Rating: 3A Termination: Skirt (Weld)
    Conductor Material Stainless Steel
    Current Rating 3A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 7.52/7.47mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 5.0kV
  • 5kV Instrumentation Feedthrough

    5kV Instrumentation Feedthrough

    5kV Instrumentation Feedthrough

    Working Voltage: 5.0kV Current Rating: 10A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 10A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 7.52/7.47mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 5.0kV
  • 5kV Instrumentation Feedthrough

    5kV Instrumentation Feedthrough

    5kV Instrumentation Feedthrough

    Working Voltage: 5.0kV Current Rating: 20A Termination: Skirt (Weld)
    Conductor Material OFHC Copper
    Current Rating 20A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 7.52/7.47mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 5.0kV

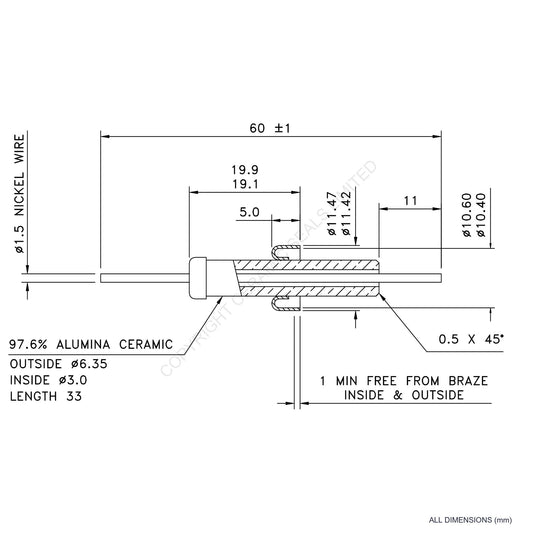

  • 8kV Instrumentation Feedthrough

    8kV Instrumentation Feedthrough

    8kV Instrumentation Feedthrough

    Working Voltage: 8.0kV Current Rating: 10A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 10A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 8.0kV

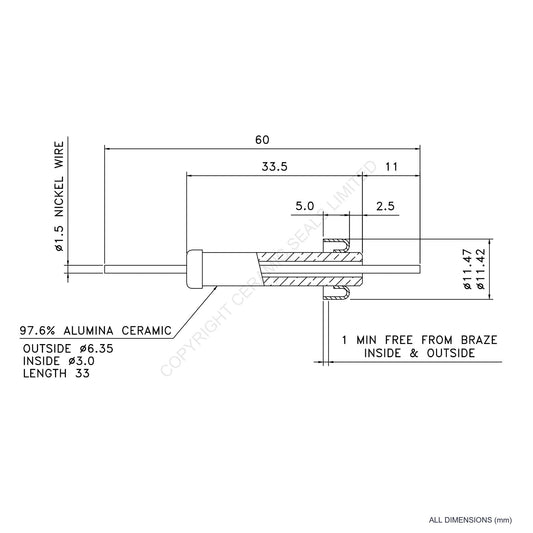

  • 15kV Instrumentation Feedthrough

    15kV Instrumentation Feedthrough

    15kV Instrumentation Feedthrough

    Working Voltage: 15.0kV Current Rating: 10A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 10A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

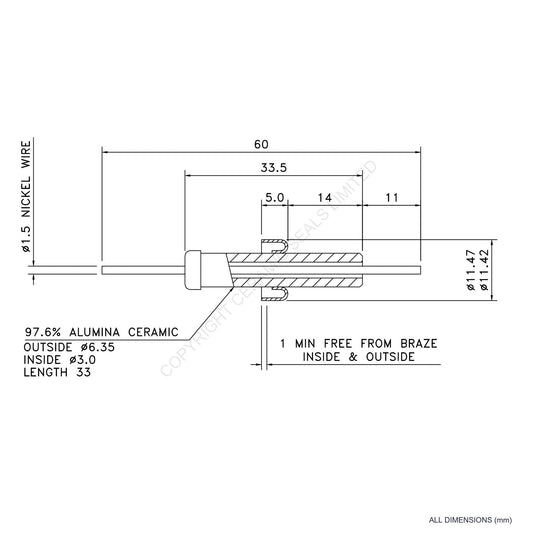

  • 20kV Working Leadthrough

    20kV Working Leadthrough

    20kV Working Leadthrough

    Working Voltage: 20.0kV Current Rating: 10A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 10A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 20.0kV

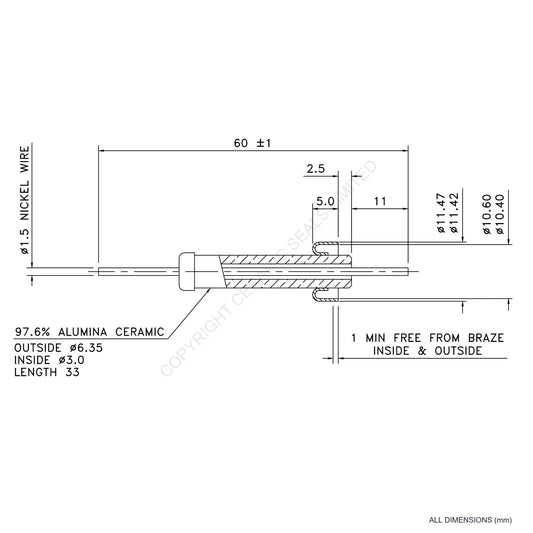

  • 8kV Instrumentation Feedthrough

    8kV Instrumentation Feedthrough

    8kV Instrumentation Feedthrough

    Working Voltage: 8.0kV Current Rating: 10A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 10A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 8.0kV
  • 15kV Instrumentation Feedthrough

    15kV Instrumentation Feedthrough

    15kV Instrumentation Feedthrough

    Working Voltage: 15.0kV Current Rating: 10A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 10A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV
  • 20kV Instrumentation Feedthrough

    20kV Instrumentation Feedthrough

    20kV Instrumentation Feedthrough

    Working Voltage: 20.0kV Current Rating: 10A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 10A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 20.0kV
