5kV Instrumentation Feedthrough
Working Voltage: 5.0kV
Current Rating: 20A
Conductor Material: OFHC Copper

General Specifications
Conductor
Material
OFHC Copper
Current
Rating
20A
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
1
Termination
Skirt (Weld)
Termination
Size
7.52/7.47mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
5.0kV
Product Code: B1004080
5kV Instrumentation Feedthrough

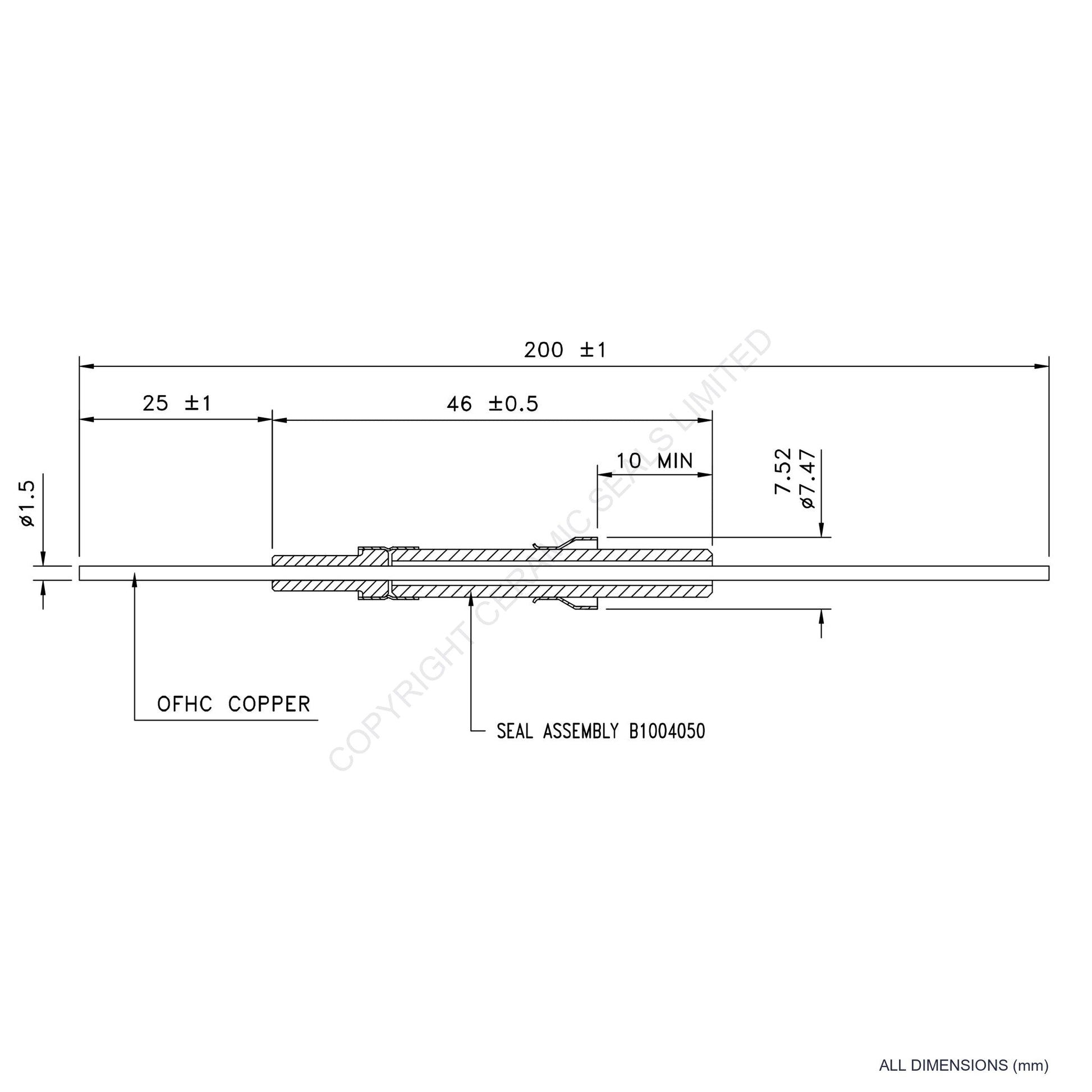

5.0kV 20A Instrumentation feedthrough with 7.52/7.47mm Skirt (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Conductor
Material
OFHC Copper
Current
Rating
20A
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
1
Termination
Skirt (Weld)
Termination
Size
7.52/7.47mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
5.0kV
