20kV Instrumentation Feedthrough

Working Voltage: 20.0kV

Current Rating: 10A

Conductor Material: Nickel (Alloy 200)

Skip to product information
1 of 1
Product Code: B1006030
Estimated Lead Time: Confirmed on Request

Product Description

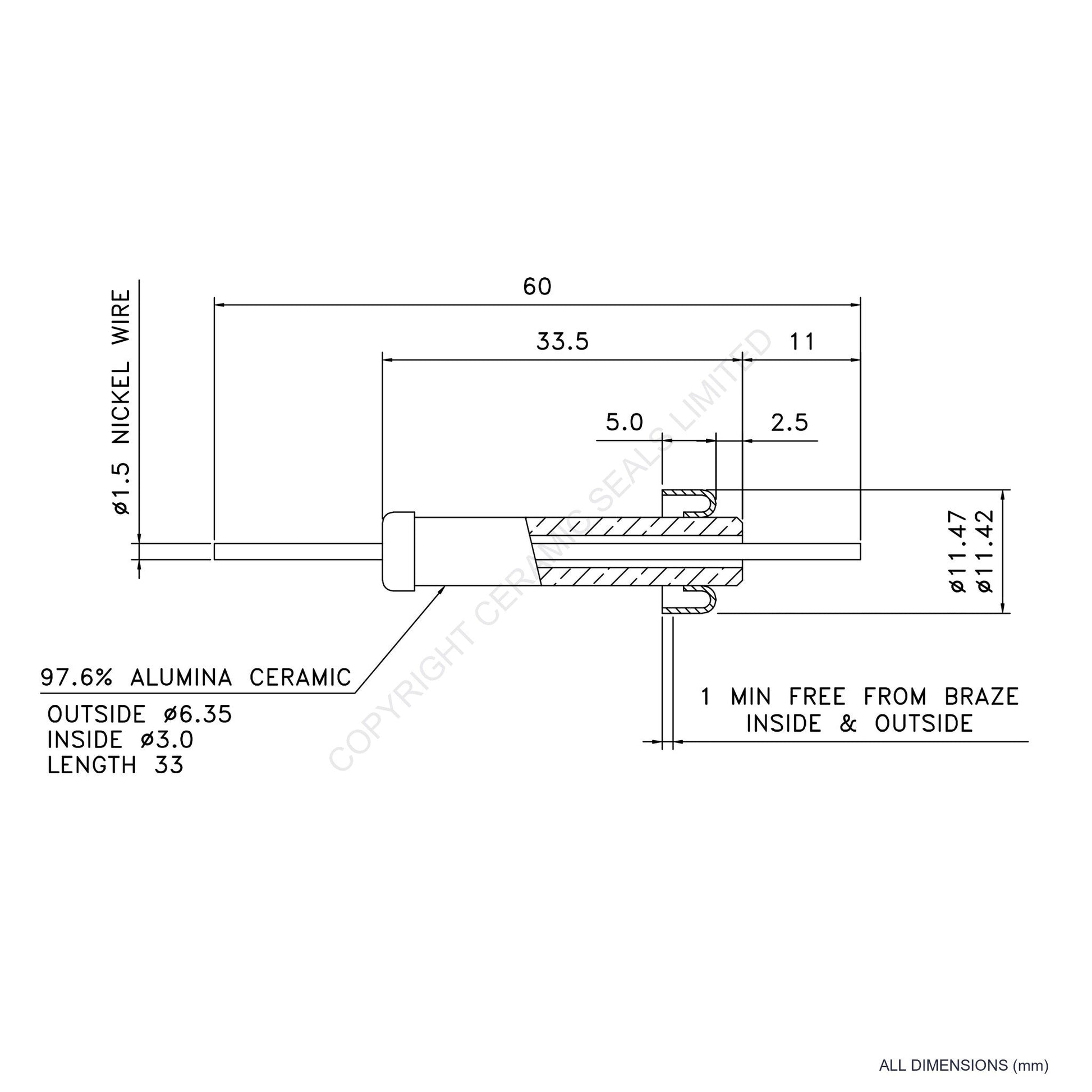

20.0kV 10A Instrumentation feedthrough with 11.47/11.42mm Skirt (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

View full details

General Specifications

Conductor Material Nickel (Alloy 200)
Current Rating 10A
Insulating Material Alumina (96-98%)
Magnetic Yes
No Of Conductors 1
Termination Skirt (Weld)
Termination Size 11.47/11.42mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
Working Voltage 20.0kV
