Single Feedthroughs

Product Collection

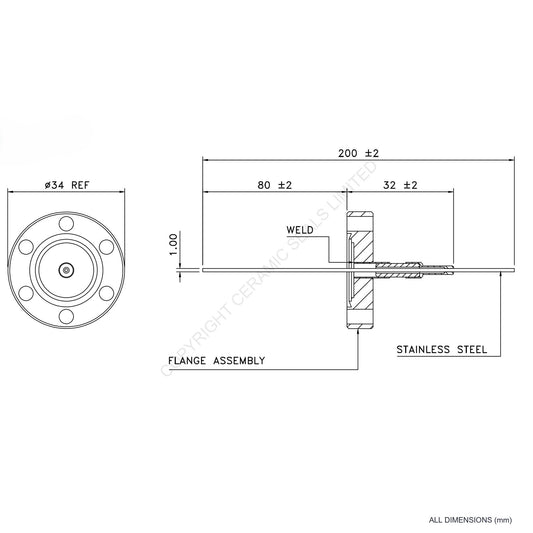

  • 2.5kV Single Feedthrough Flanged

    2.5kV Single Feedthrough Flanged

    2.5kV Single Feedthrough Flanged

    Working Voltage: 2.5kV Current Rating: 2A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 2A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

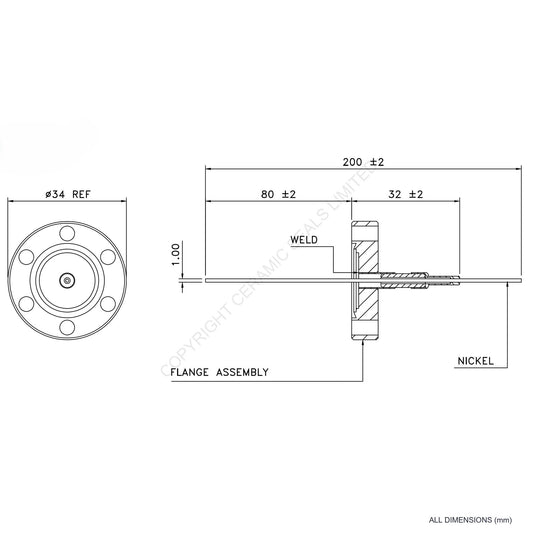

  • 2.5kV Single Feedthrough Flanged

    2.5kV Single Feedthrough Flanged

    2.5kV Single Feedthrough Flanged

    Working Voltage: 2.5kV Current Rating: 5A Termination: CF Flange
    Conductor Material Nickel (Alloy 200)
    Current Rating 5A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

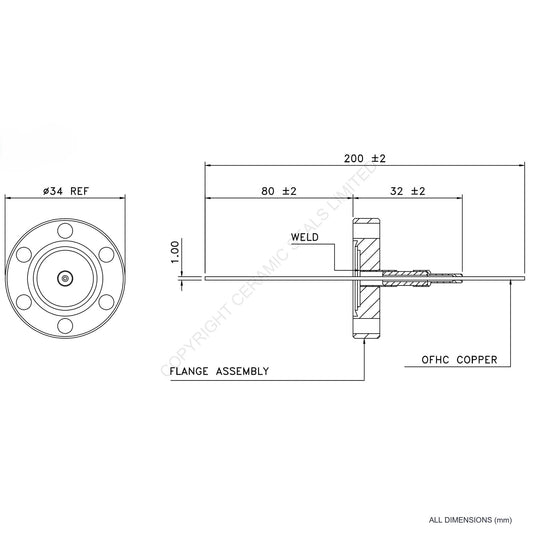

  • 2.5kV Single Feedthrough Flanged

    2.5kV Single Feedthrough Flanged

    2.5kV Single Feedthrough Flanged

    Working Voltage: 2.5kV Current Rating: 10A Termination: CF Flange
    Conductor Material OFHC Copper
    Current Rating 10A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

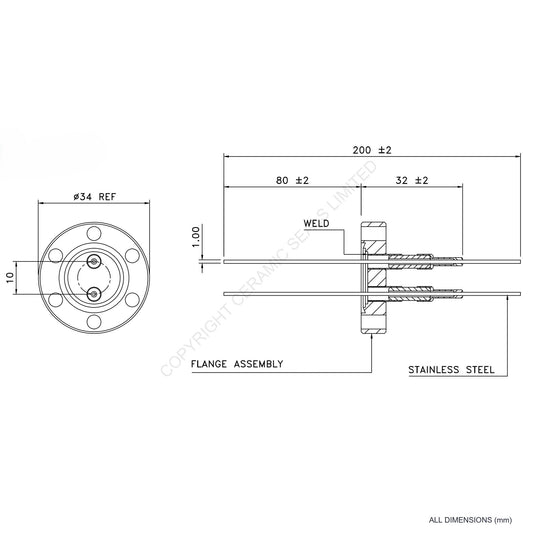

  • 2.5kV Double Feedthrough Flanged

    2.5kV Double Feedthrough Flanged

    2.5kV Double Feedthrough Flanged

    Working Voltage: 2.5kV Current Rating: 2A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 2A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

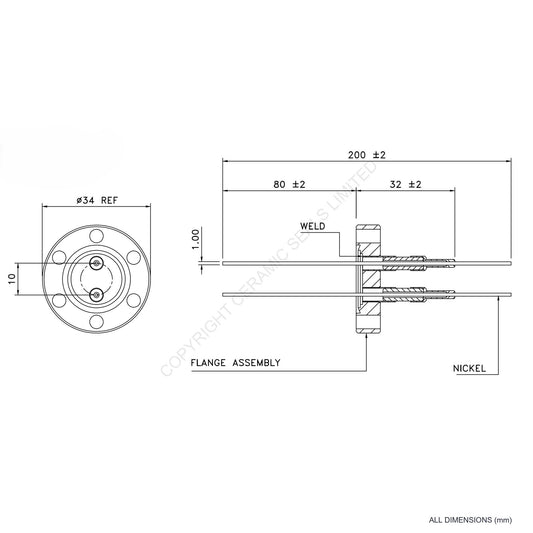

  • 2.5kV Double Feedthrough Flanged

    2.5kV Double Feedthrough Flanged

    2.5kV Double Feedthrough Flanged

    Working Voltage: 2.5kV Current Rating: 5A Termination: CF Flange
    Conductor Material Nickel (Alloy 200)
    Current Rating 5A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

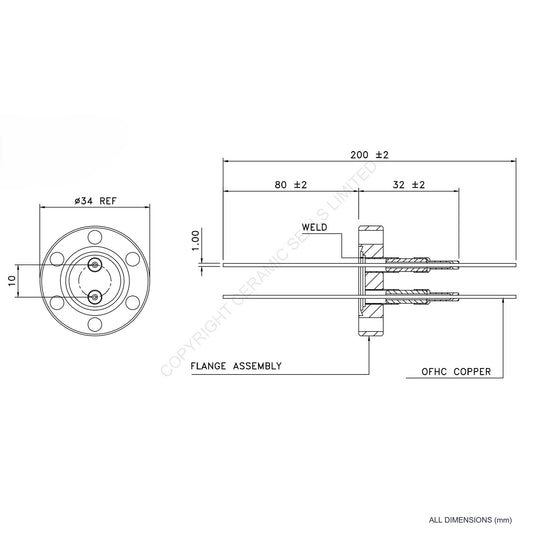

  • 2.5kV Double Feedthrough Flanged

    2.5kV Double Feedthrough Flanged

    2.5kV Double Feedthrough Flanged

    Working Voltage: 2.5kV Current Rating: 10A Termination: CF Flange
    Conductor Material OFHC Copper
    Current Rating 10A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV
  • 2.5kV Four Way Feedthrough Flanged

    2.5kV Four Way Feedthrough Flanged

    2.5kV Four Way Feedthrough Flanged

    Working Voltage: 2.5kV Current Rating: 2A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 2A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 4
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

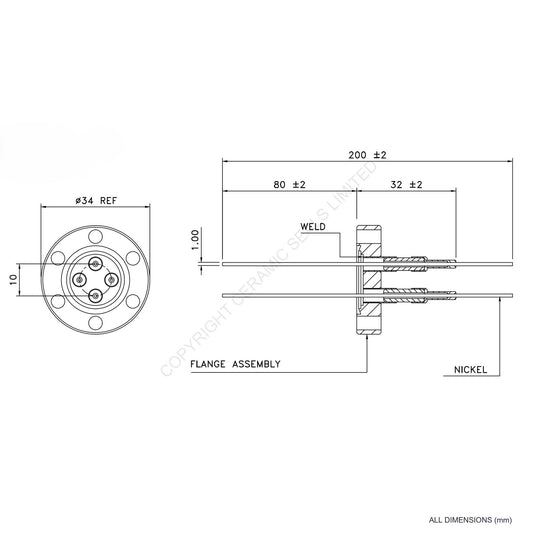

  • 2.5kV Four Way Feedthrough Flanged

    2.5kV Four Way Feedthrough Flanged

    2.5kV Four Way Feedthrough Flanged

    Working Voltage: 2.5kV Current Rating: 5A Termination: CF Flange
    Conductor Material Nickel (Alloy 200)
    Current Rating 5A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 4
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

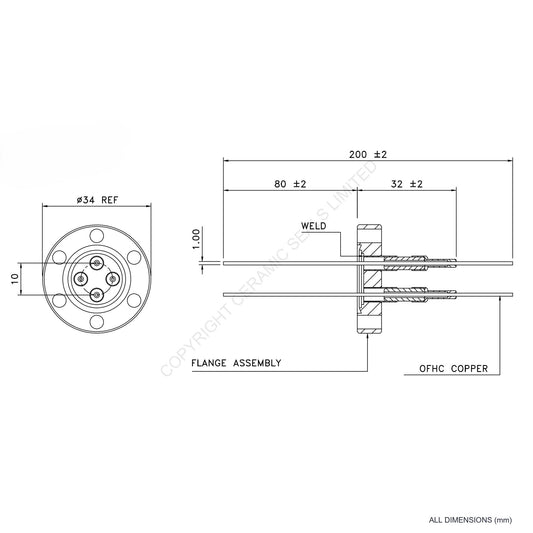

  • 2.5kV Four Way Feedthrough Flanged

    2.5kV Four Way Feedthrough Flanged

    2.5kV Four Way Feedthrough Flanged

    Working Voltage: 2.5kV Current Rating: 10A Termination: CF Flange
    Conductor Material OFHC Copper
    Current Rating 10A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 4
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

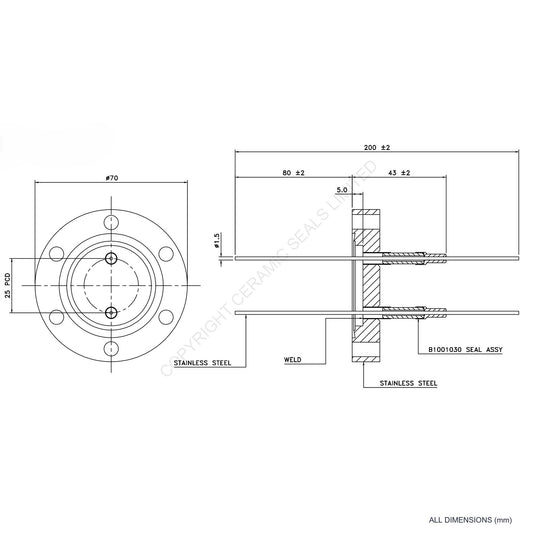

  • 5kV Double Feedthrough Flanged

    5kV Double Feedthrough Flanged

    5kV Double Feedthrough Flanged

    Working Voltage: 5.0kV Current Rating: 3A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 3A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 5.0kV

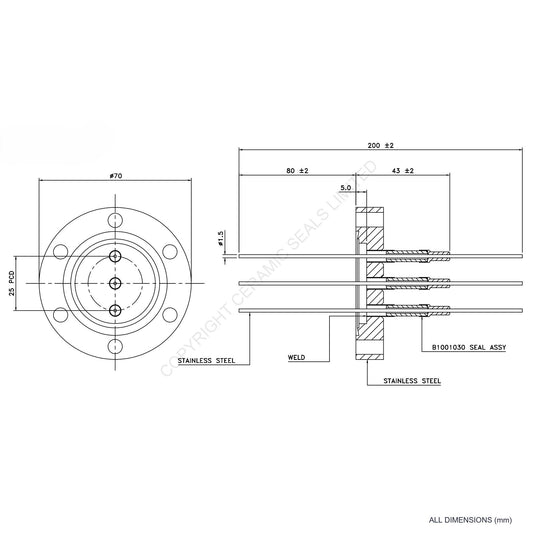

  • 5kV Three Way Feedthrough Flanged

    5kV Three Way Feedthrough Flanged

    5kV Three Way Feedthrough Flanged

    Working Voltage: 5.0kV Current Rating: 3A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 3A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 3
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 5.0kV

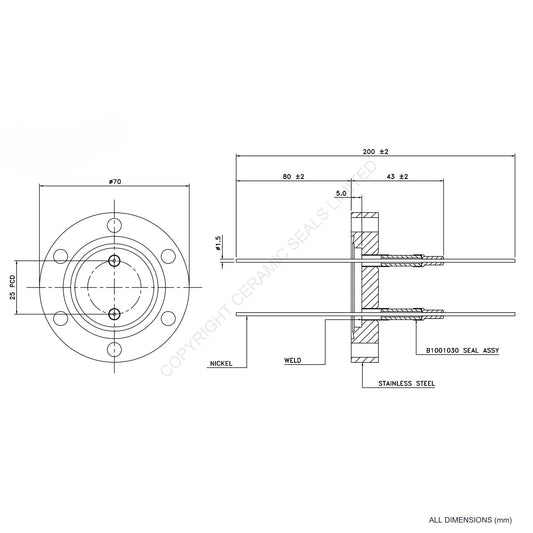

  • 5kV Double Feedthrough Flanged

    5kV Double Feedthrough Flanged

    5kV Double Feedthrough Flanged

    Working Voltage: 5.0kV Current Rating: 10A Termination: CF Flange
    Conductor Material Nickel (Alloy 200)
    Current Rating 10A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 5.0kV
