2.5kV Double Feedthrough Flanged
Working Voltage: 2.5kV
Current Rating: 2A
Conductor Material: Stainless Steel

General Specifications
Conductor
Material
Stainless Steel
Current
Rating
2A
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
2
Termination
CF Flange
Termination
Size
34mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
2.5kV
Product Code: B1103216

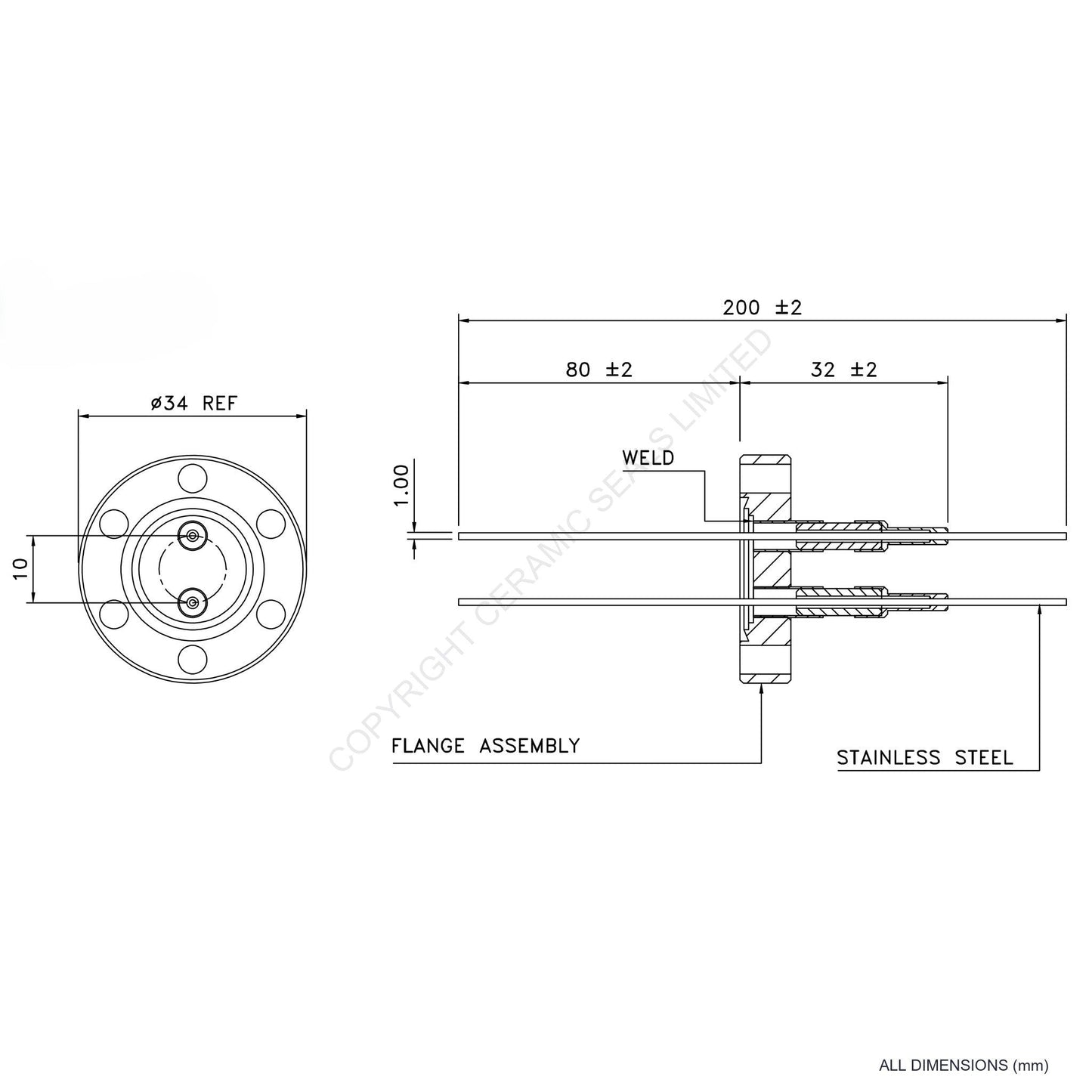

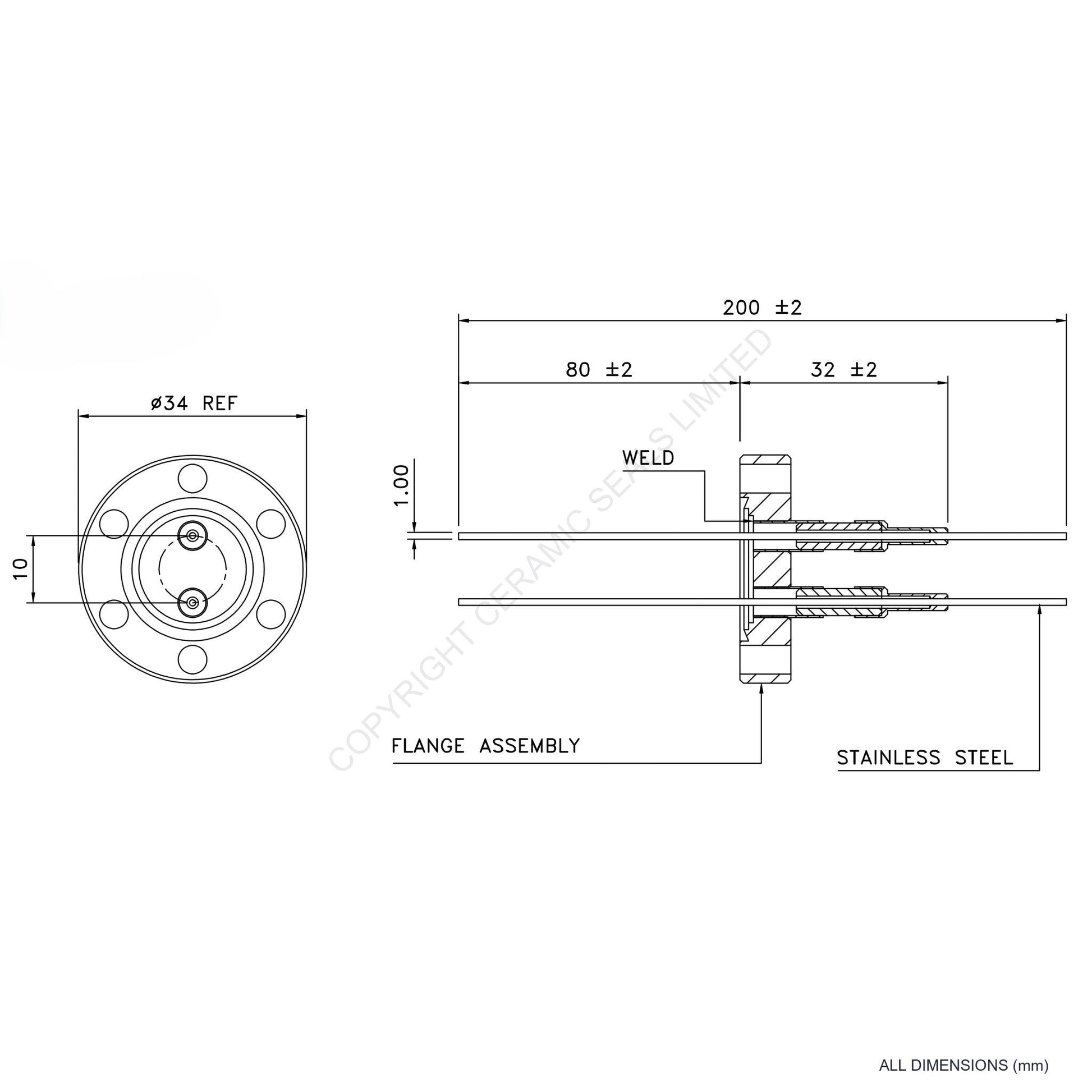

2.5kV Double Feedthrough Flanged
2.5kV 2A Instrumentation feedthrough with 34mm CF Flange termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Conductor
Material
Stainless Steel
Current
Rating
2A
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
2
Termination
CF Flange
Termination
Size
34mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
2.5kV
