100kV Feedthrough Assembly Flanged

Working Voltage: 100.0kV

Current Rating: 7A

Conductor Material: Stainless Steel

Skip to product information
1 of 1
Product Code: B6002010
Estimated Lead Time: Confirmed on Request

Product Description

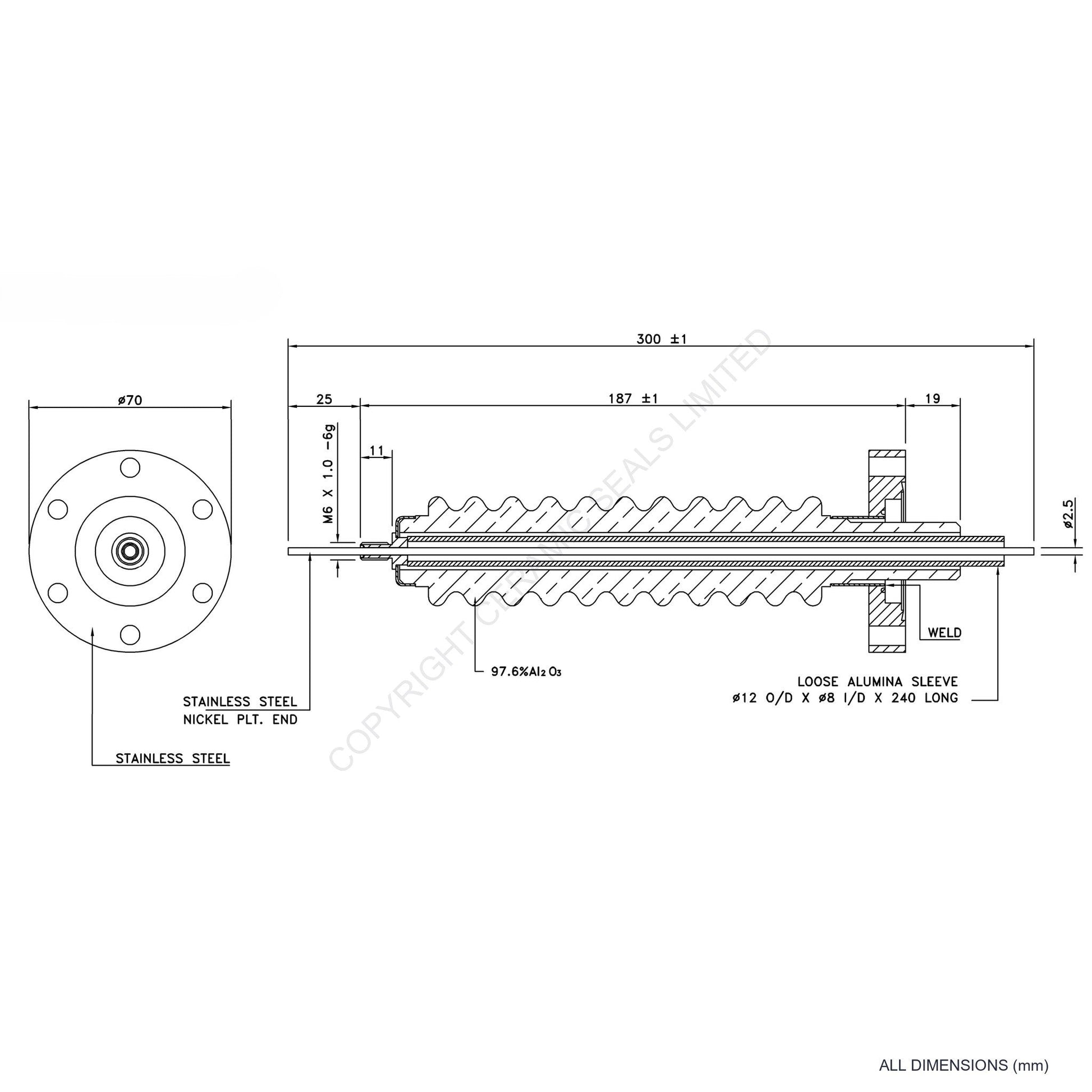

100.0kV 7A High Voltage feedthrough with 70mm CF Flange termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

View full details

General Specifications

Conductor Material Stainless Steel
Current Rating 7A
Flange Material Stainless Steel (1.4307)
Gasket O Ring Material Copper
Insulating Material Alumina (96-98%)
Magnetic Yes
No Of Conductors 1
Termination CF Flange
Termination Size 70mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
Working Voltage 100.0kV
