10kV Double Feedthrough Flanged
Working Voltage: 10.0kV
Current Rating: 150A
Conductor Material: OFHC Copper

General Specifications
Conductor
Material
OFHC Copper
Current
Rating
150A
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
2
Termination
CF Flange
Termination
Size
70mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
10.0kV
Product Code: B2002222

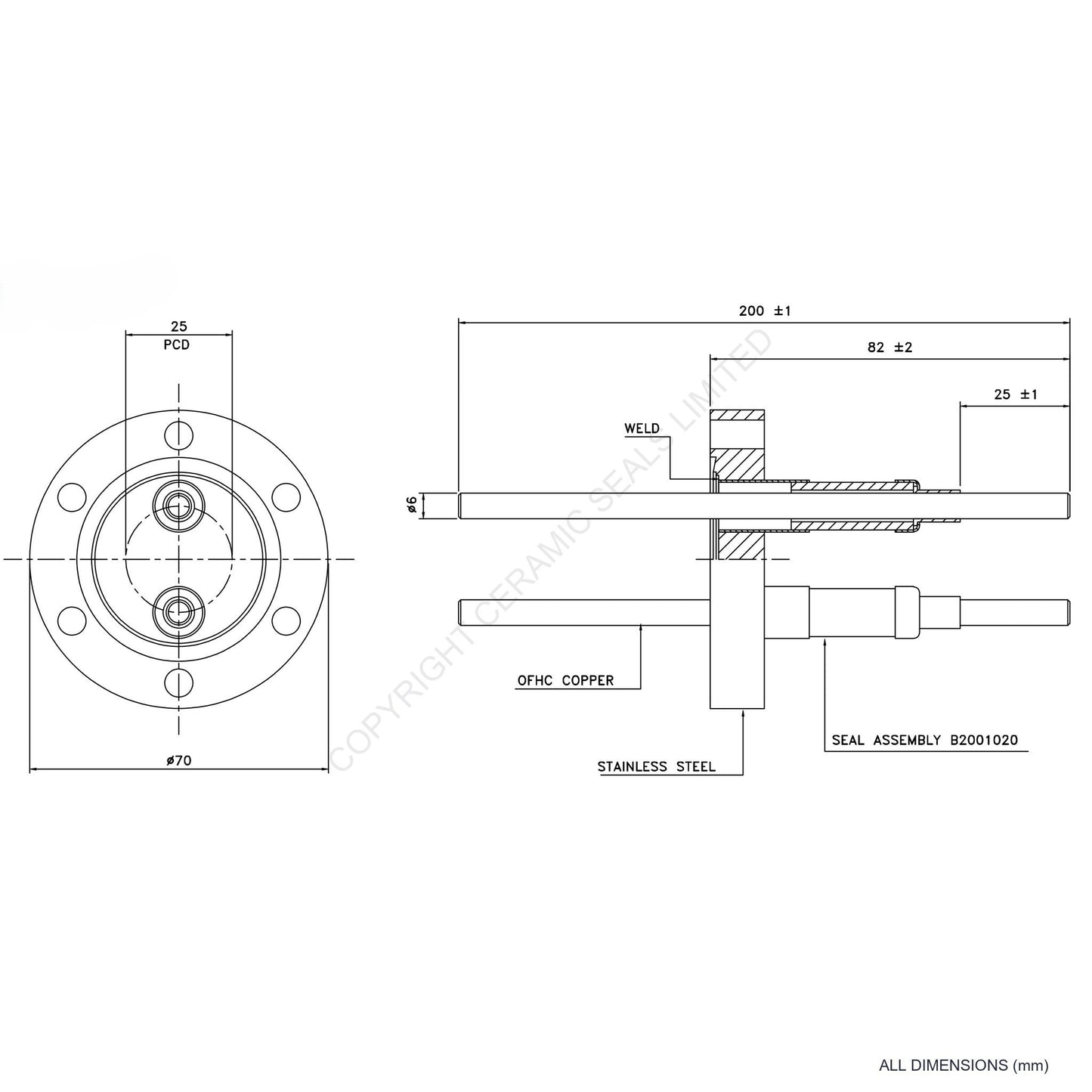

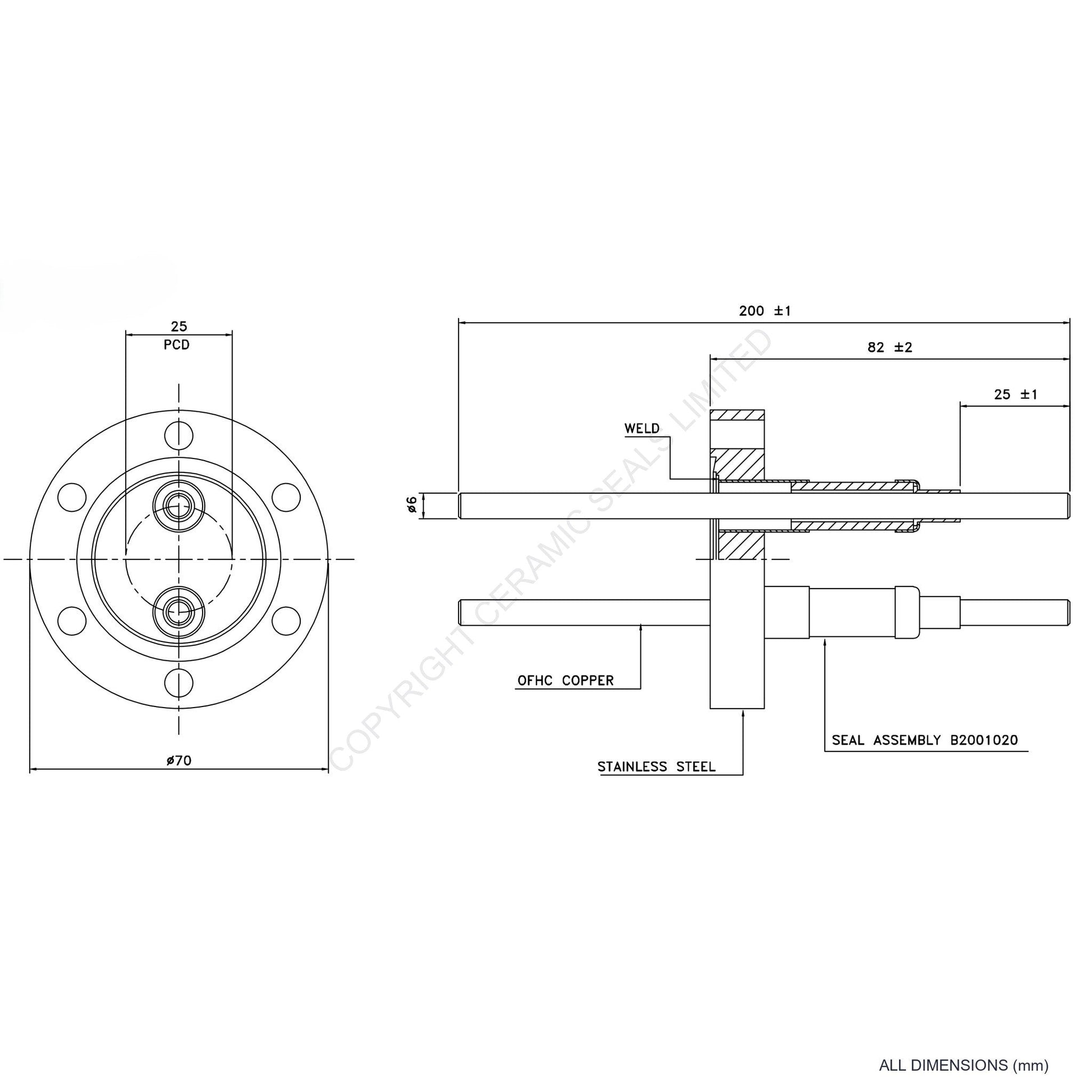

10kV Double Feedthrough Flanged
10.0kV 150A Power feedthrough with 70mm CF Flange termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Conductor
Material
OFHC Copper
Current
Rating
150A
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
2
Termination
CF Flange
Termination
Size
70mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
10.0kV
