10kV Isolator

Working Voltage: 10.0kV

Current Rating:

Conductor Material:

1 1
Product Code: F3001010
Estimated Lead Time: Confirmed on Request

Product Description

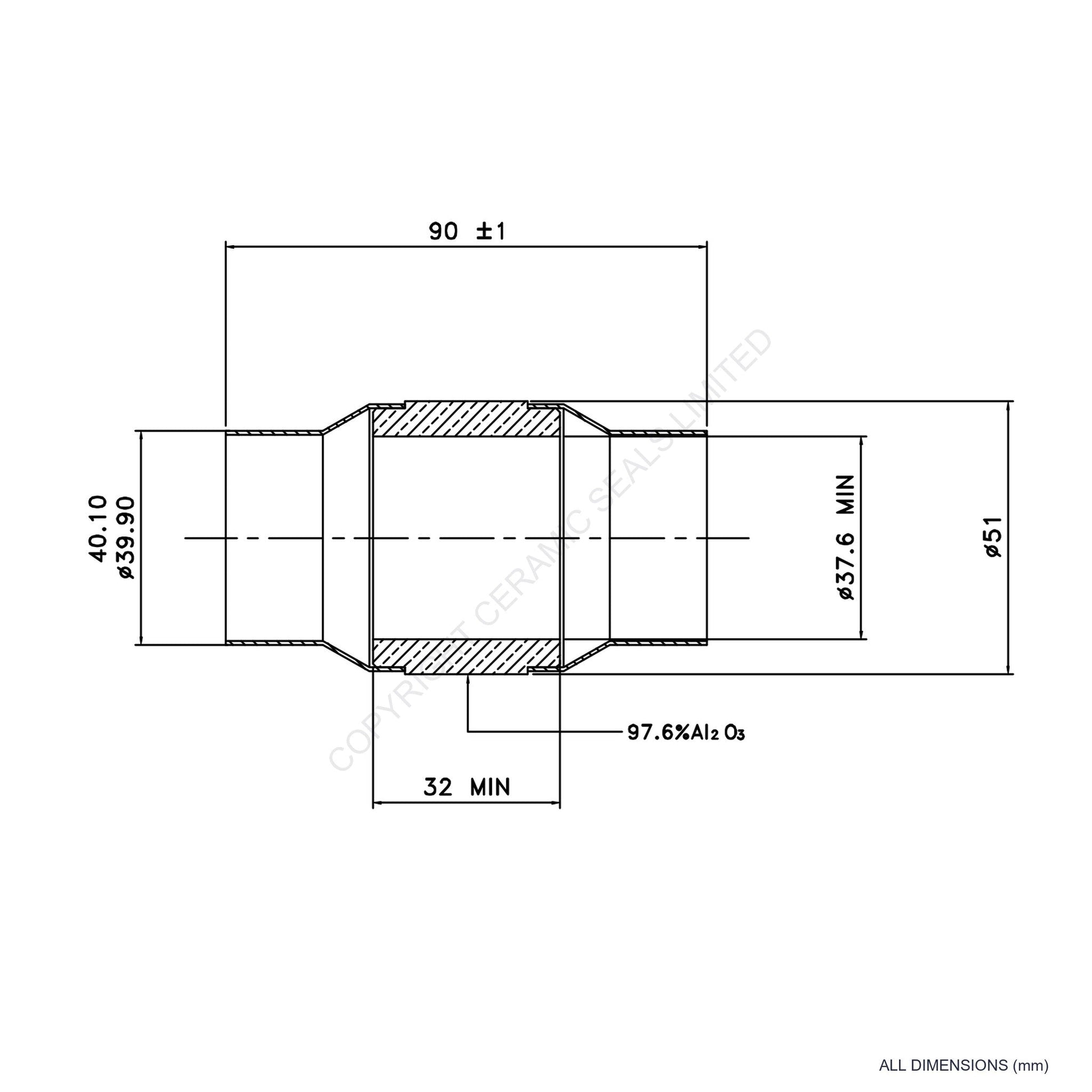

10.0kV Vacuum Break with 40.10/39.90mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Insulating Material Alumina (96-98%)
Isolator Type Vacuum Break
Magnetic Yes
Termination Tube (Weld)
Termination Size 40.10/39.90mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
Working Voltage 10.0kV
