10kV Metal Ceramic Seal
Working Voltage: 10.0kV
Current Rating: 1000A
Conductor Material: OFHC Copper

General Specifications
Conductor
Material
OFHC Copper
Current
Rating
1000A
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
1
Termination
Tube (Weld)
Termination
Size
35.95/35.85mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
10.0kV
Product Code: B4001060
10kV Metal Ceramic Seal

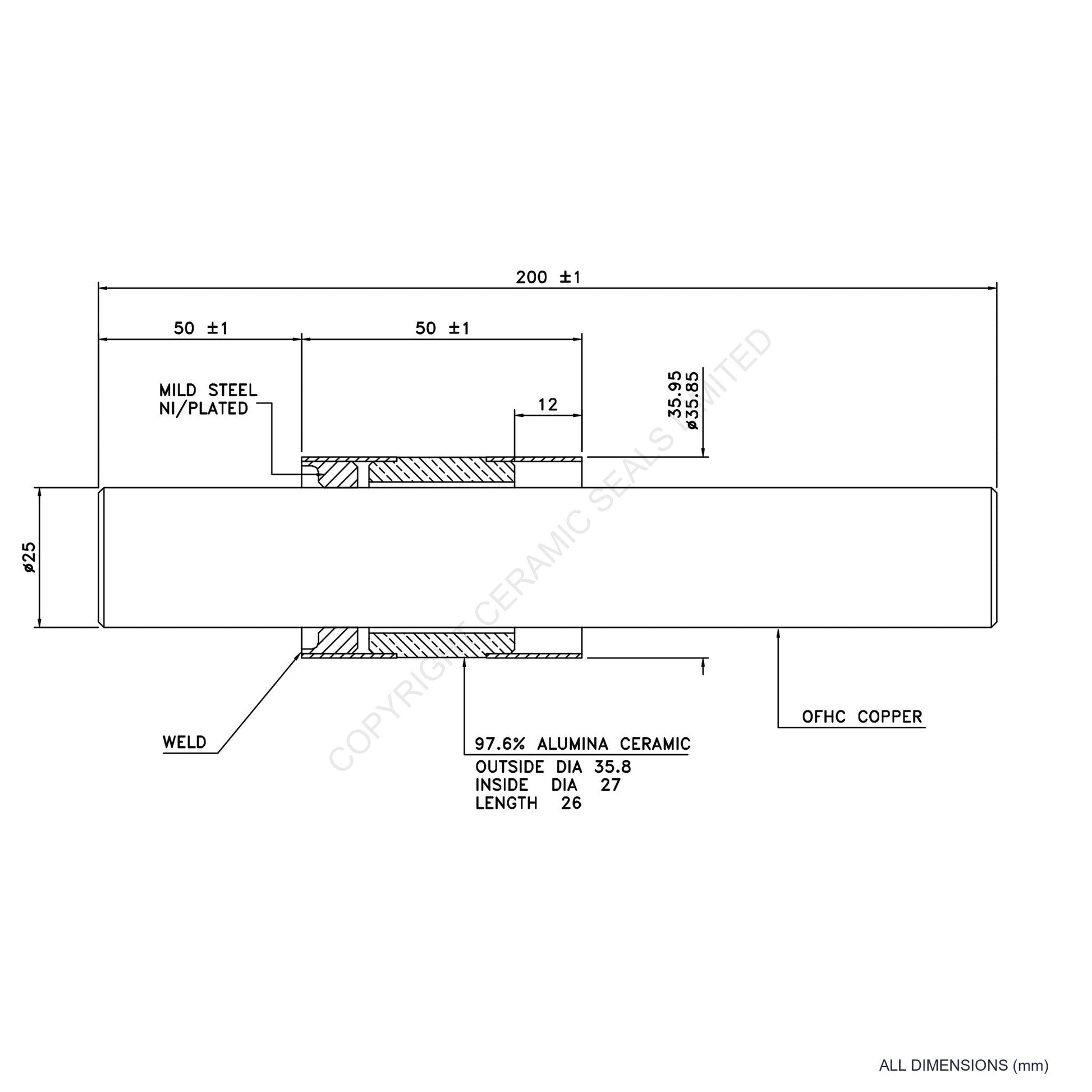

10.0kV 1000A High Current feedthrough with 35.95/35.85mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Conductor
Material
OFHC Copper
Current
Rating
1000A
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
1
Termination
Tube (Weld)
Termination
Size
35.95/35.85mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
10.0kV
