10kV SHV 4 Way Flanged Assembly

Working Voltage: 10.0kV

Current Rating: 3A

Conductor Material:

1 1
Product Code: C4003030
Estimated Lead Time: Confirmed on Request

Product Description

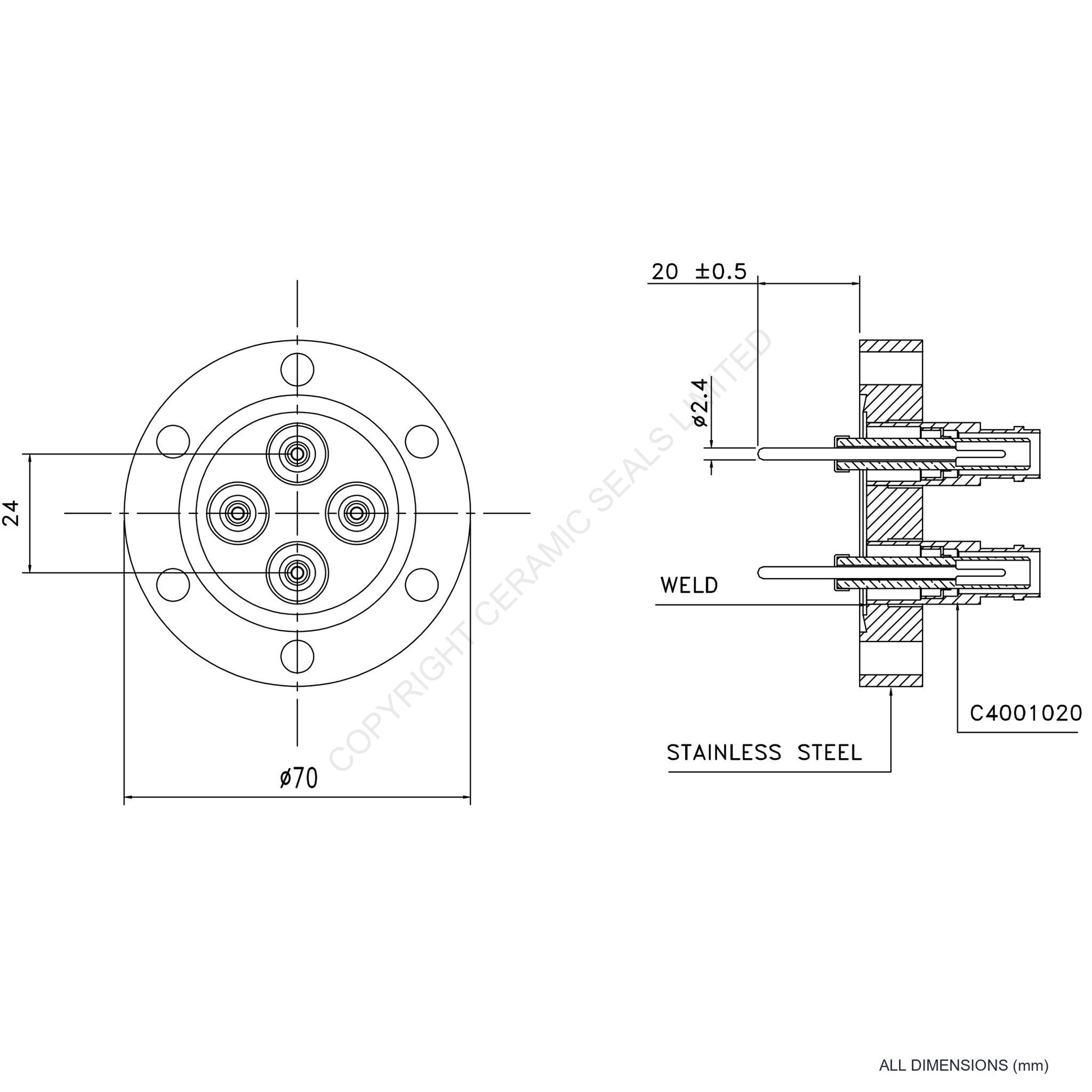

10.0kV Single Ended SHV connector with 70mm CF Flange termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Air Side Plug C4009001
Configuration Single Ended
Connector Type SHV
Current Rating 3A
Feedthrough Quantity 4
Flange Material Stainless Steel (1.4307)
Gasket Nitrile Material Copper
Insulating Material Alumina (96-98%)
Magnetic Yes
Shielding Grounded
Termination CF Flange
Termination Size 70mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
Working Voltage 10.0kV
