10kV SHV Bulkhead Feedthrough

Working Voltage: 10.0kV

Current Rating: 3A

Conductor Material:

Skip to product information
1 of 1
Product Code: C4004030
Estimated Lead Time: Confirmed on Request

Product Description

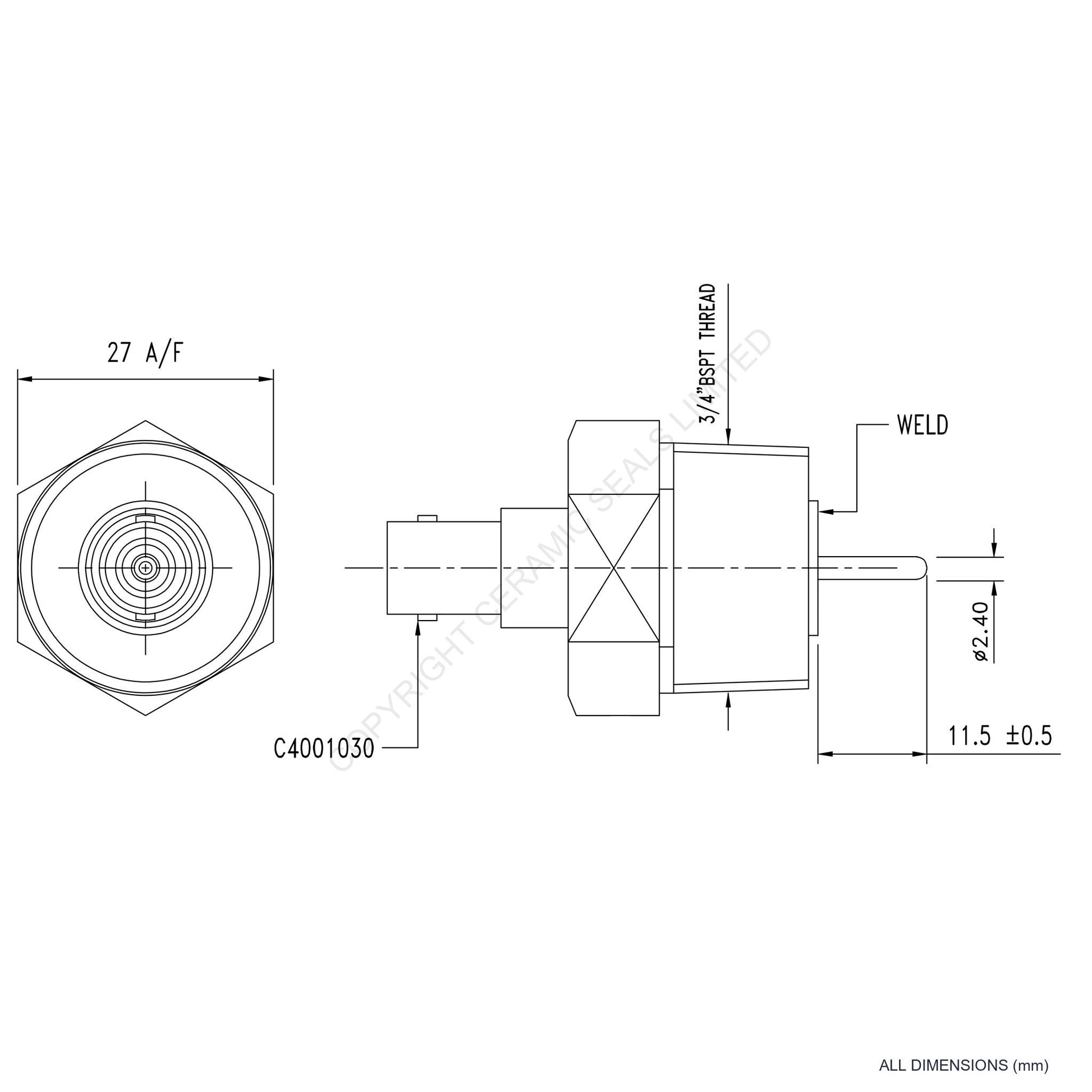

10.0kV Single Ended SHV connector with 3/4" BSPT Bulkhead termination. Rated for a working temperature of -20°C to 150°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

View full details

General Specifications

Air Side Plug C4009001
Configuration Single Ended
Connector Type SHV
Current Rating 3A
Feedthrough Quantity 1
Flange Material Stainless Steel (1.4307)
Insulating Material Alumina (96-98%)
Magnetic Yes
Shielding Grounded
Termination Bulkhead
Termination Size 3/4" BSPT
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -20°C to 150°C
Working Voltage 10.0kV
