10kV SHV Feedthrough

Working Voltage: 10.0kV

Current Rating: 3A

Conductor Material:

1 1
Product Code: C4001020
Estimated Lead Time: Confirmed on Request

Product Description

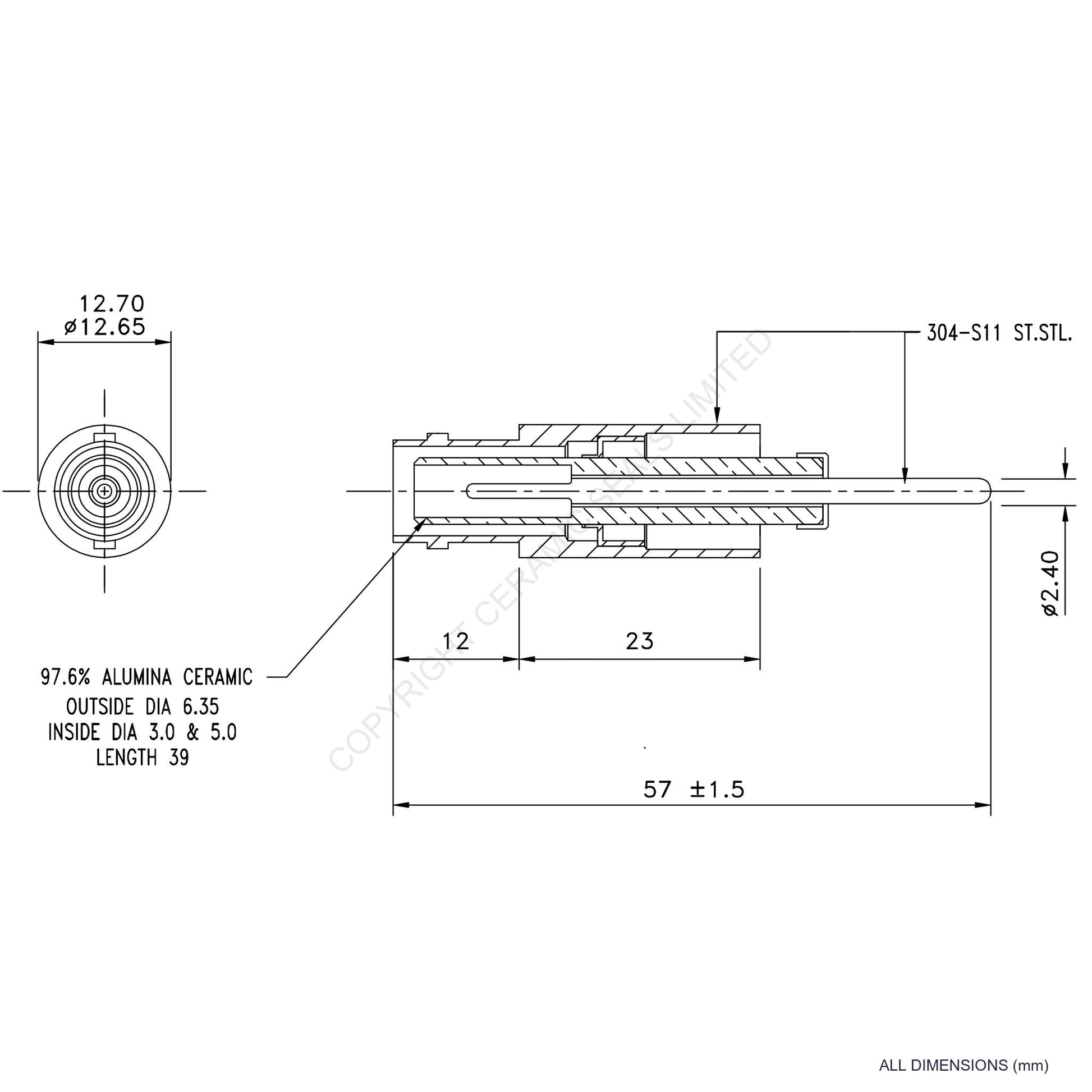

10.0kV Single Ended SHV connector with 12.70/12.65mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Air Side Plug C4009001
Configuration Single Ended
Connector Type SHV
Current Rating 3A
Feedthrough Quantity 1
Insulating Material Alumina (96-98%)
Magnetic Yes
Shielding Grounded
Termination Tube (Weld)
Termination Size 12.70/12.65mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
Working Voltage 10.0kV
