10kV SHV Feedthrough
Working Voltage: 10.0kV
Current Rating: 3A
Conductor Material:

General Specifications
Air
Side
Plug
C4009001
Configuration
Single Ended
Connector
Type
SHV
Current
Rating
3A
Feedthrough
Quantity
1
Flange
Material
Stainless Steel (1.4307)
Gasket
Nitrile
Material
Viton (FKM)
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
O-Ring Connector
Termination
Size
20mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-20°C to 150°C
Working
Voltage
10.0kV
Product Code: C4005010
10kV SHV Feedthrough

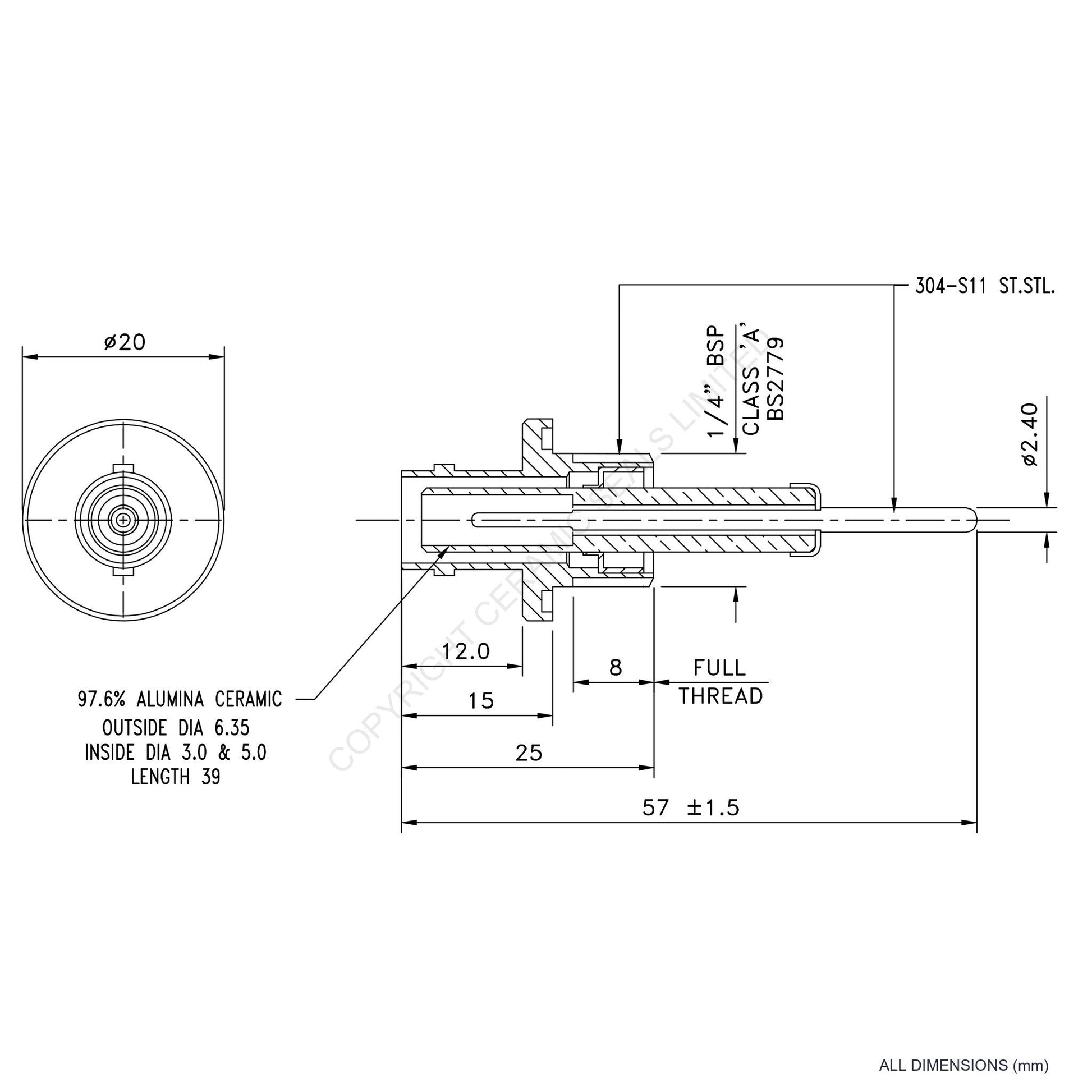

10.0kV Single Ended SHV connector with 20mm O-Ring Connector termination. Rated for a working temperature of -20°C to 150°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Air
Side
Plug
C4009001
Configuration
Single Ended
Connector
Type
SHV
Current
Rating
3A
Feedthrough
Quantity
1
Flange
Material
Stainless Steel (1.4307)
Gasket
Nitrile
Material
Viton (FKM)
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
O-Ring Connector
Termination
Size
20mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-20°C to 150°C
Working
Voltage
10.0kV
