11 Pin Feedthrough

Working Voltage:

Current Rating: 1.4A

Conductor Material:

1 1
Product Code: E7202010
Estimated Lead Time: Confirmed on Request

Product Description

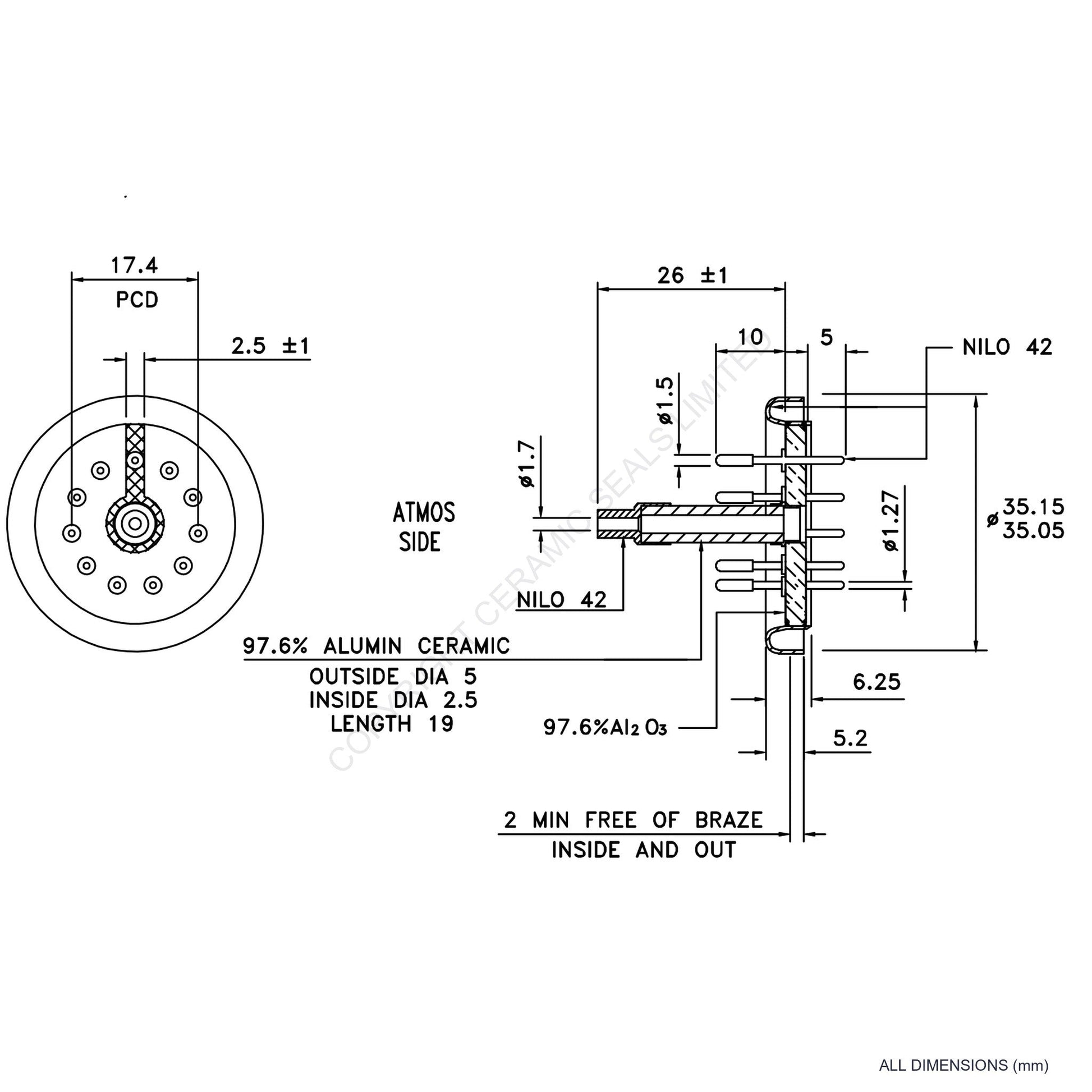

11 Pin Feedthrough with 35.15/35.05mm Skirt (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Breakdown Voltage Centre Pin To Ground 6.0kV
Breakdown Voltage Pin To Ground 3.0Kv
Breakdown Voltage Pin To Pin 3.0kV
Current Rating 1.4A
Insulating Material Alumina (96-98%)
Magnetic Yes
Multi Pin Type Feedthrough
No Of Pins 11
Termination Skirt (Weld)
Termination Size 35.15/35.05mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Vacuum Connector E9002020
Working Temperature -196°C to 450°C
