11 Pin Feedthrough
Working Voltage:
Current Rating: 1.4A
Conductor Material:

General Specifications
Atmosphere
Plug
E3002010
Breakdown
Voltage
Centre
Pin
To
Ground
6.0kV
Breakdown
Voltage
Pin
To
Ground
3.0Kv
Breakdown
Voltage
Pin
To
Pin
3.0kV
Current
Rating
1.4A
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Multi
Pin
Type
Feedthrough
No
Of
Pins
11
Termination
Tube (Weld)
Termination
Size
34.85/34.80mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Product Code: E7302020

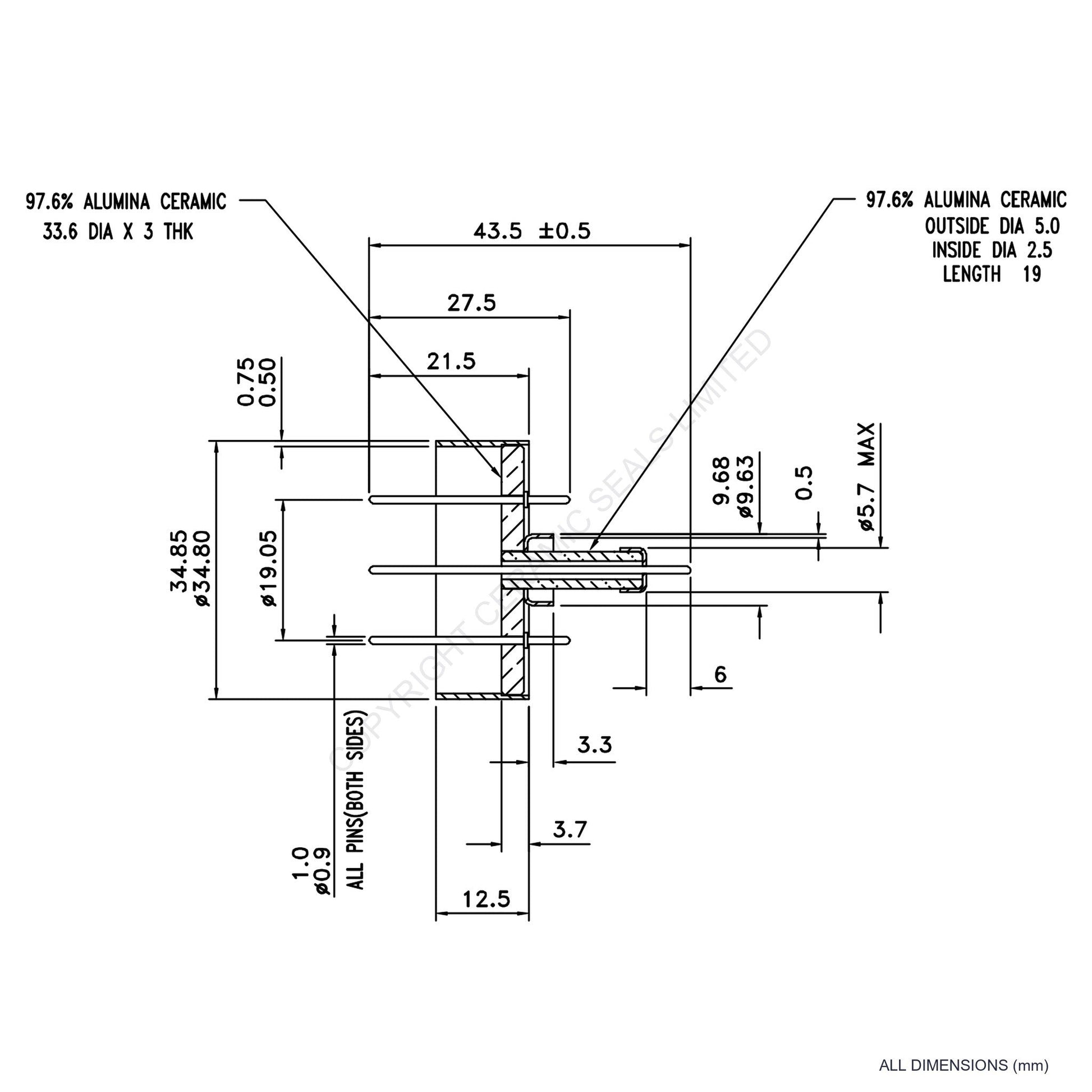

11 Pin Feedthrough
11 Pin Feedthrough with 34.85/34.80mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Atmosphere
Plug
E3002010
Breakdown
Voltage
Centre
Pin
To
Ground
6.0kV
Breakdown
Voltage
Pin
To
Ground
3.0Kv
Breakdown
Voltage
Pin
To
Pin
3.0kV
Current
Rating
1.4A
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Multi
Pin
Type
Feedthrough
No
Of
Pins
11
Termination
Tube (Weld)
Termination
Size
34.85/34.80mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
