13 Pin Feedthrough

Working Voltage:

Current Rating: 1.4A

Conductor Material:

1 1
Product Code: E7304020
Estimated Lead Time: Confirmed on Request

Product Description

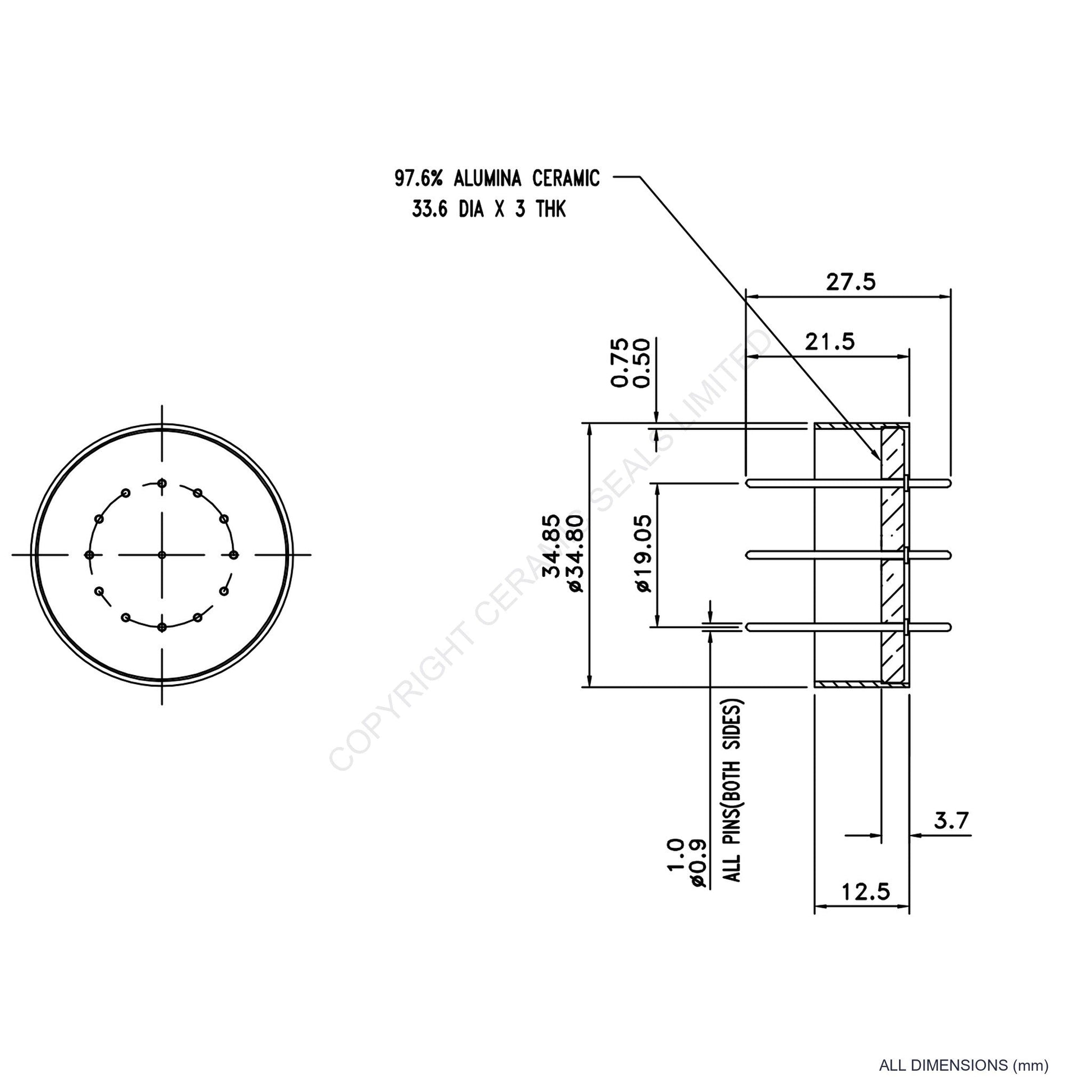

13 Pin Feedthrough with 34.85/34.80mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Atmosphere Plug E3002010
Breakdown Voltage Centre Pin To Ground 6.0kV
Breakdown Voltage Pin To Ground 3.0Kv
Breakdown Voltage Pin To Pin 3.0kV
Current Rating 1.4A
Insulating Material Alumina (96-98%)
Magnetic Yes
Multi Pin Type Feedthrough
No Of Pins 13
Termination Tube (Weld)
Termination Size 34.85/34.80mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Vacuum Connector E9003520
Working Temperature -196°C to 450°C
