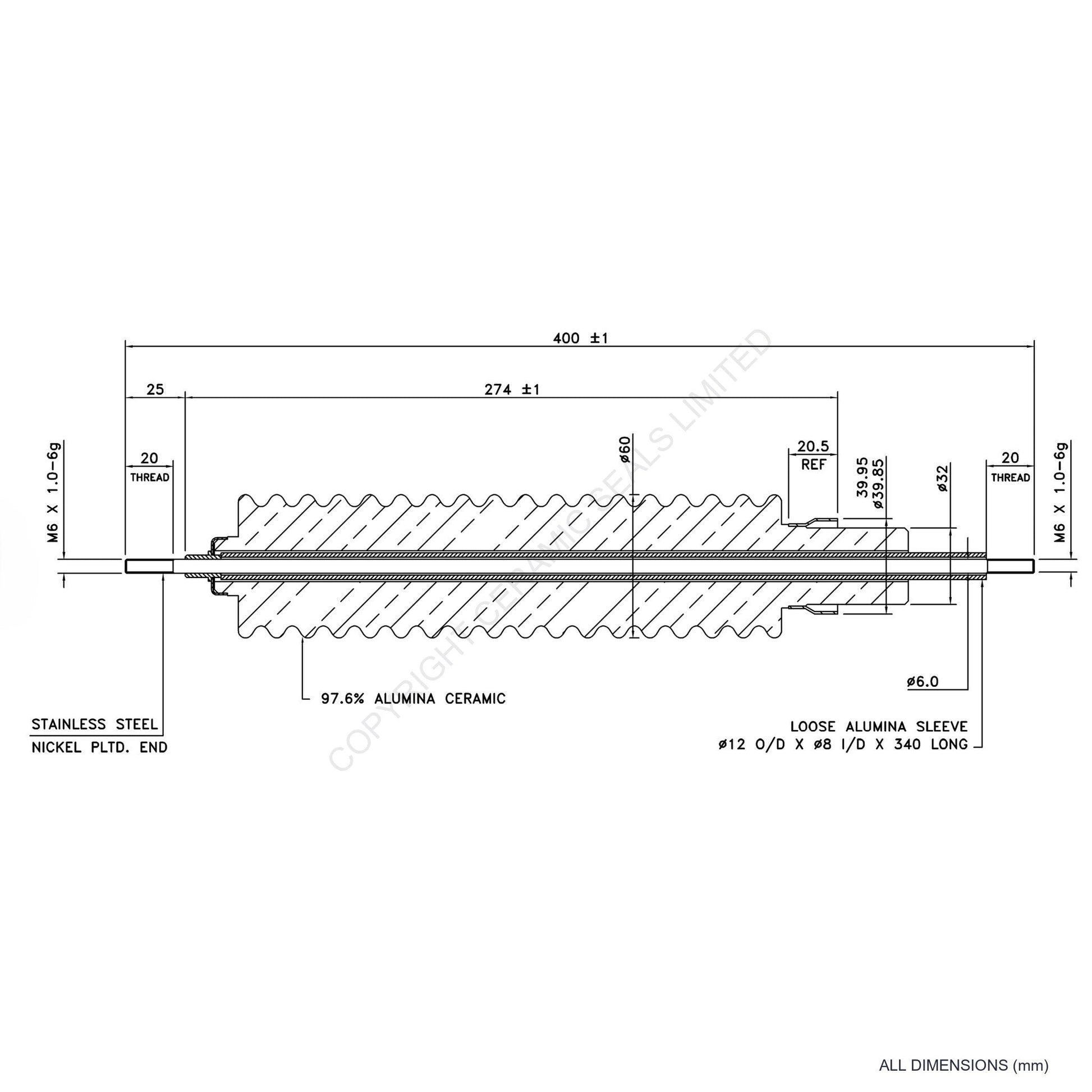

150kV Feedthrough Assembly
Working Voltage: 150.0kV
Current Rating: 25A
Conductor Material: Stainless Steel

General Specifications
Conductor
Material
Stainless Steel
Current
Rating
25A
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
1
Termination
Tube (Weld)
Termination
Size
39.95/39.85mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
150.0kV
Product Code: B7001040

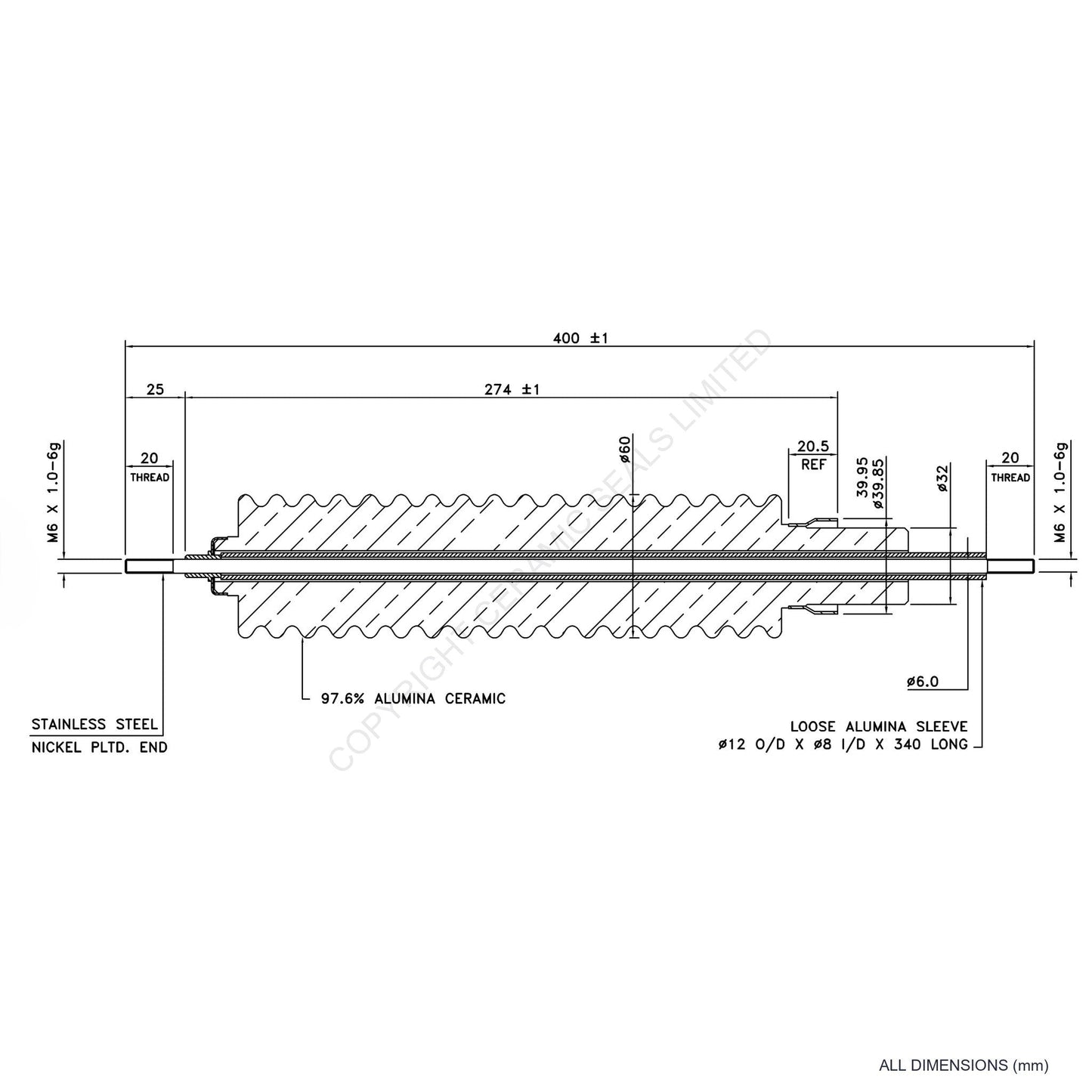

150kV Feedthrough Assembly
150.0kV 25A High Voltage feedthrough with 39.95/39.85mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Conductor
Material
Stainless Steel
Current
Rating
25A
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
1
Termination
Tube (Weld)
Termination
Size
39.95/39.85mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
150.0kV
