15kV Isolator
Working Voltage: 15.0kV
Current Rating:
Conductor Material:
General Specifications
Insulating
Material
Alumina (96-98%)
Isolator
Type
Isolator
Magnetic
Yes
Termination
Tube (Weld)
Termination
Size
12.26/12.13mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
15.0kV
Product Code: F2001080
15kV Isolator

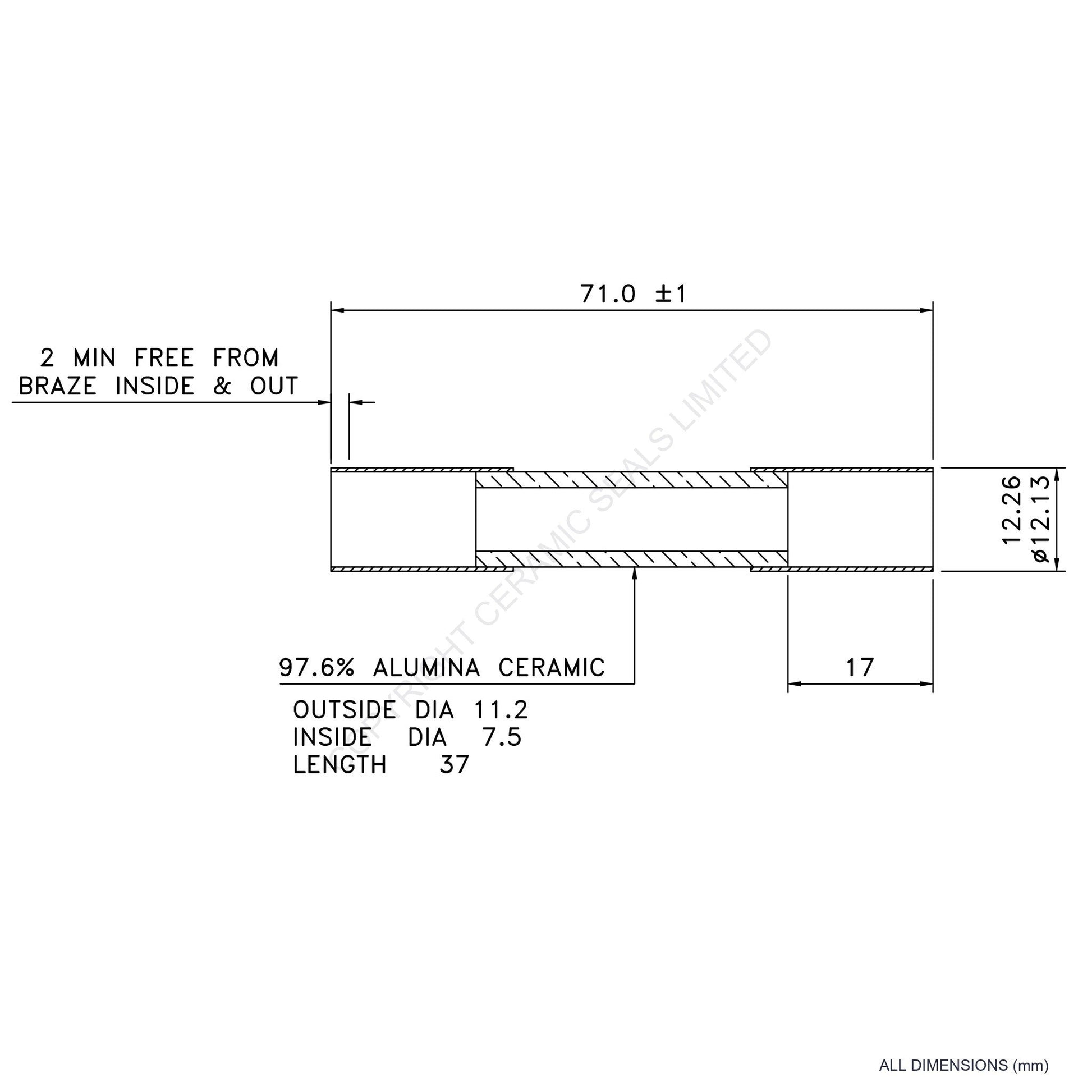

15.0kV Isolator with 12.26/12.13mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.
Insulating
Material
Alumina (96-98%)
Isolator
Type
Isolator
Magnetic
Yes
Termination
Tube (Weld)
Termination
Size
12.26/12.13mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
15.0kV
