15kV Metal Ceramic Seal
Working Voltage: 15.0kV
Current Rating: -
Conductor Material: -
General Specifications
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
1
Termination
Tube (Weld)
Termination
Size
12.264/12.136mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
15.0kV

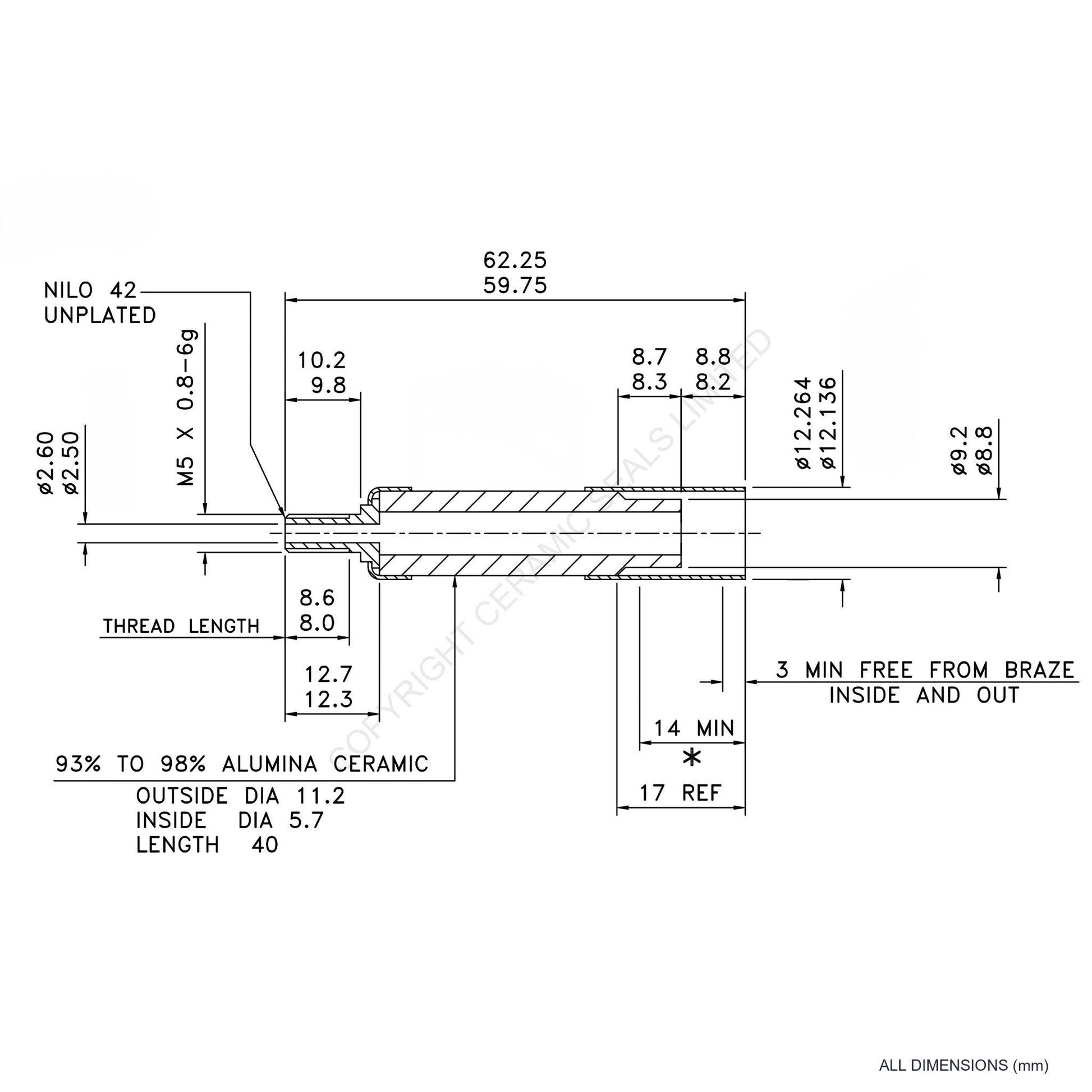

Product Code: B1504020
15kV Metal Ceramic Seal
15.0kV Power feedthrough with 12.264/12.136mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
1
Termination
Tube (Weld)
Termination
Size
12.264/12.136mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
15.0kV
