15kV Metal Ceramic Seal
Working Voltage: 15.0kV
Current Rating: 240A
Conductor Material: Nickel (Alloy 200)
General Specifications
Conductor
Material
Nickel (Alloy 200)
Current
Rating
240A
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
1
Termination
Tube (Weld)
Termination
Size
24.15/24.05mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
15.0kV
Product Code: B3002080

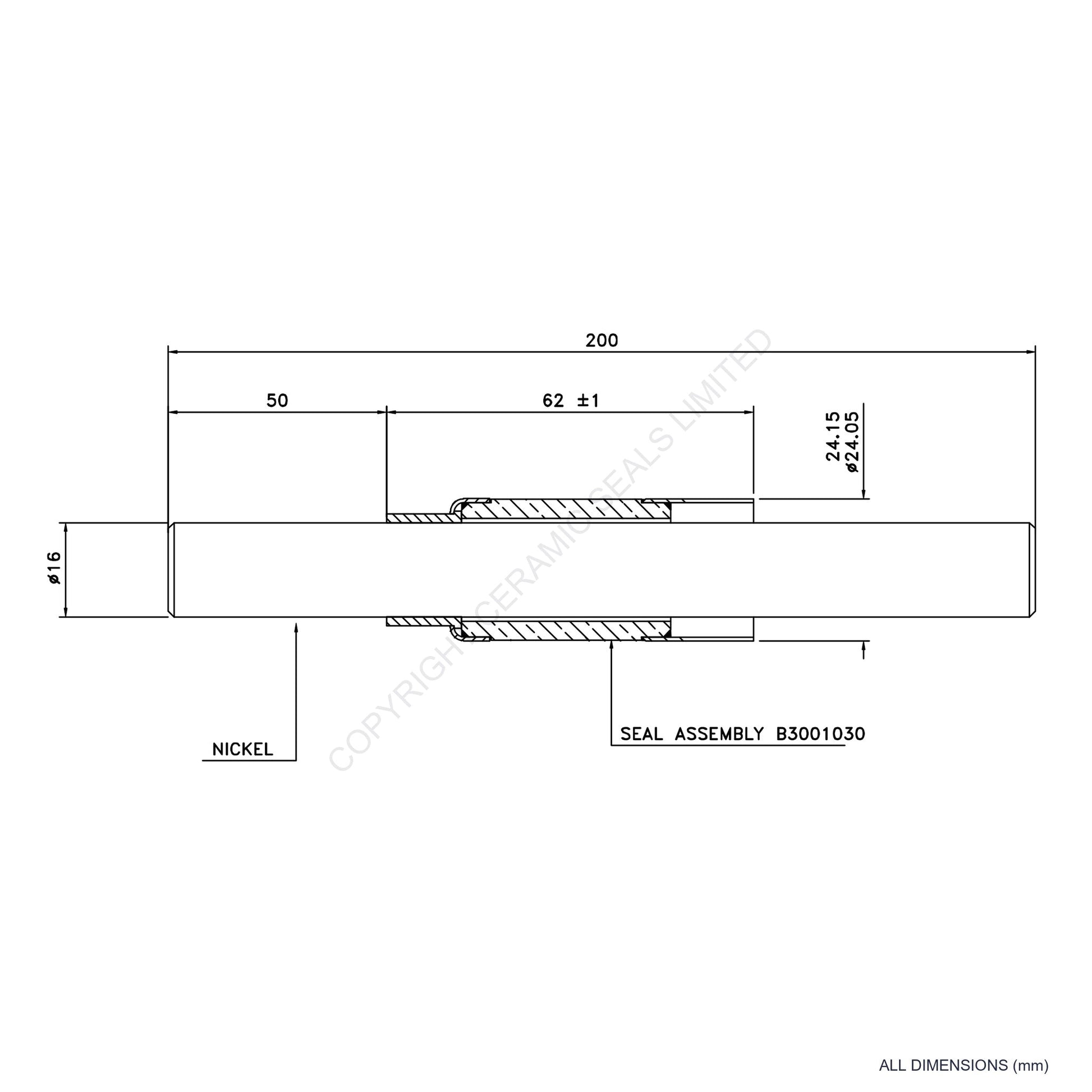

15kV Metal Ceramic Seal
15.0kV 240A High Current feedthrough with 24.15/24.05mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.
Conductor
Material
Nickel (Alloy 200)
Current
Rating
240A
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
1
Termination
Tube (Weld)
Termination
Size
24.15/24.05mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
15.0kV
