15kV SHV Plug
Working Voltage: 15.0kV
Current Rating: 3A
Conductor Material:
General Specifications
Configuration
Single Ended
Connector
Type
SHV
Current
Rating
3A
Feedthrough
Quantity
1
For
Use
With
C4001520
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Cable
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
15.0kV
Product Code: C4001510

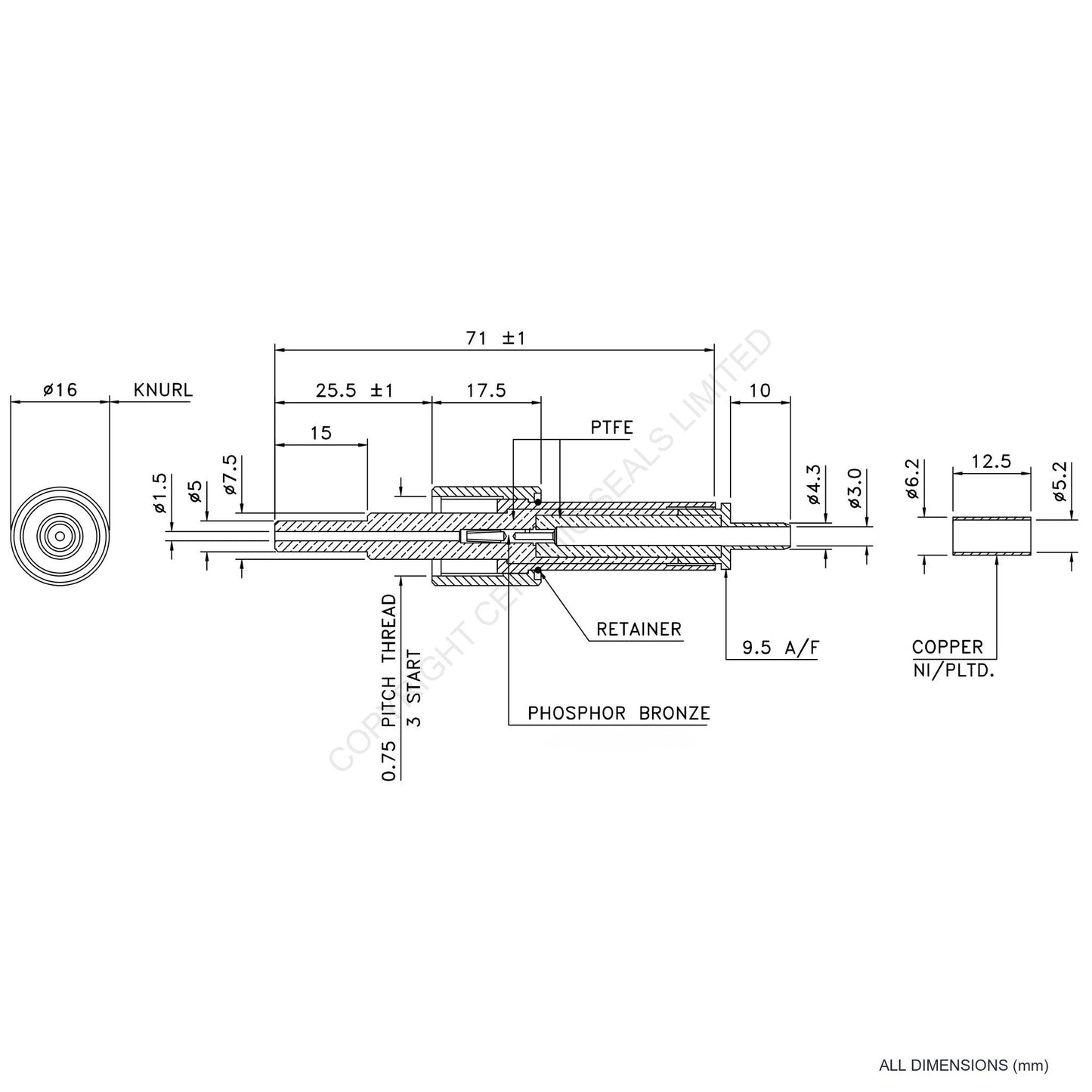

15kV SHV Plug
15.0kV Single Ended SHV connector with Cable termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.
Configuration
Single Ended
Connector
Type
SHV
Current
Rating
3A
Feedthrough
Quantity
1
For
Use
With
C4001520
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Cable
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
15.0kV
