19 Pin Feedthrough

Working Voltage:

Current Rating: 1.4A

Conductor Material:

Skip to product information
1 of 1
Product Code: E8503020
Estimated Lead Time: Confirmed on Request

Product Description

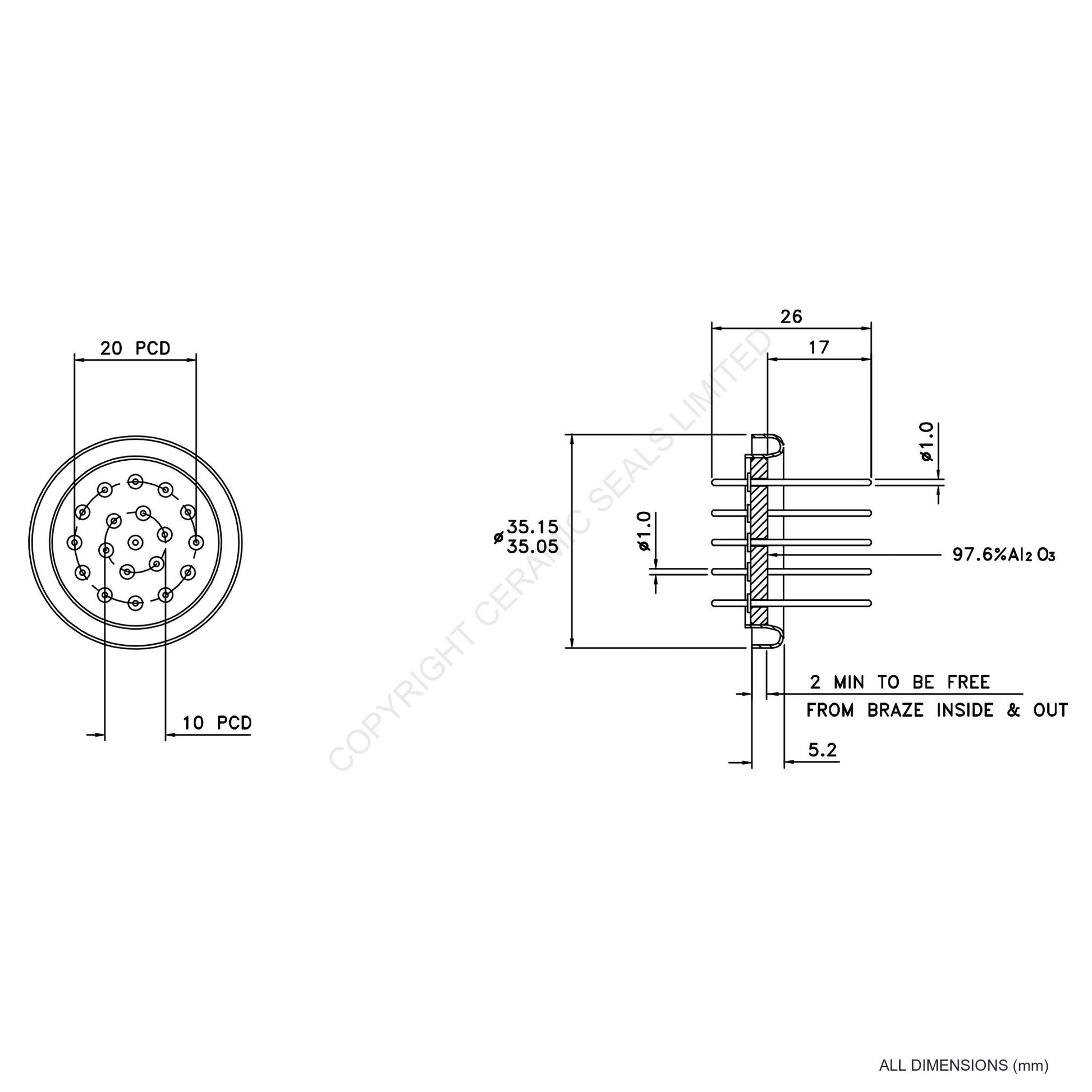

19 Pin Feedthrough with 35.15/35.05mm Skirt (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

View full details

General Specifications

Atmosphere Plug E2004310
Breakdown Voltage Pin To Ground 1.5kV
Breakdown Voltage Pin To Pin 1.5kV
Current Rating 1.4A
Insulating Material Alumina (96-98%)
Magnetic Yes
Multi Pin Type Feedthrough
No Of Pins 19
Termination Skirt (Weld)
Termination Size 35.15/35.05mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Vacuum Connector E9003040
Working Temperature -196°C to 450°C
