19 Pin Socket

Working Voltage:

Current Rating: 2.5A

Conductor Material:

1 1
Product Code: E4008020
Estimated Lead Time: Confirmed on Request

Product Description

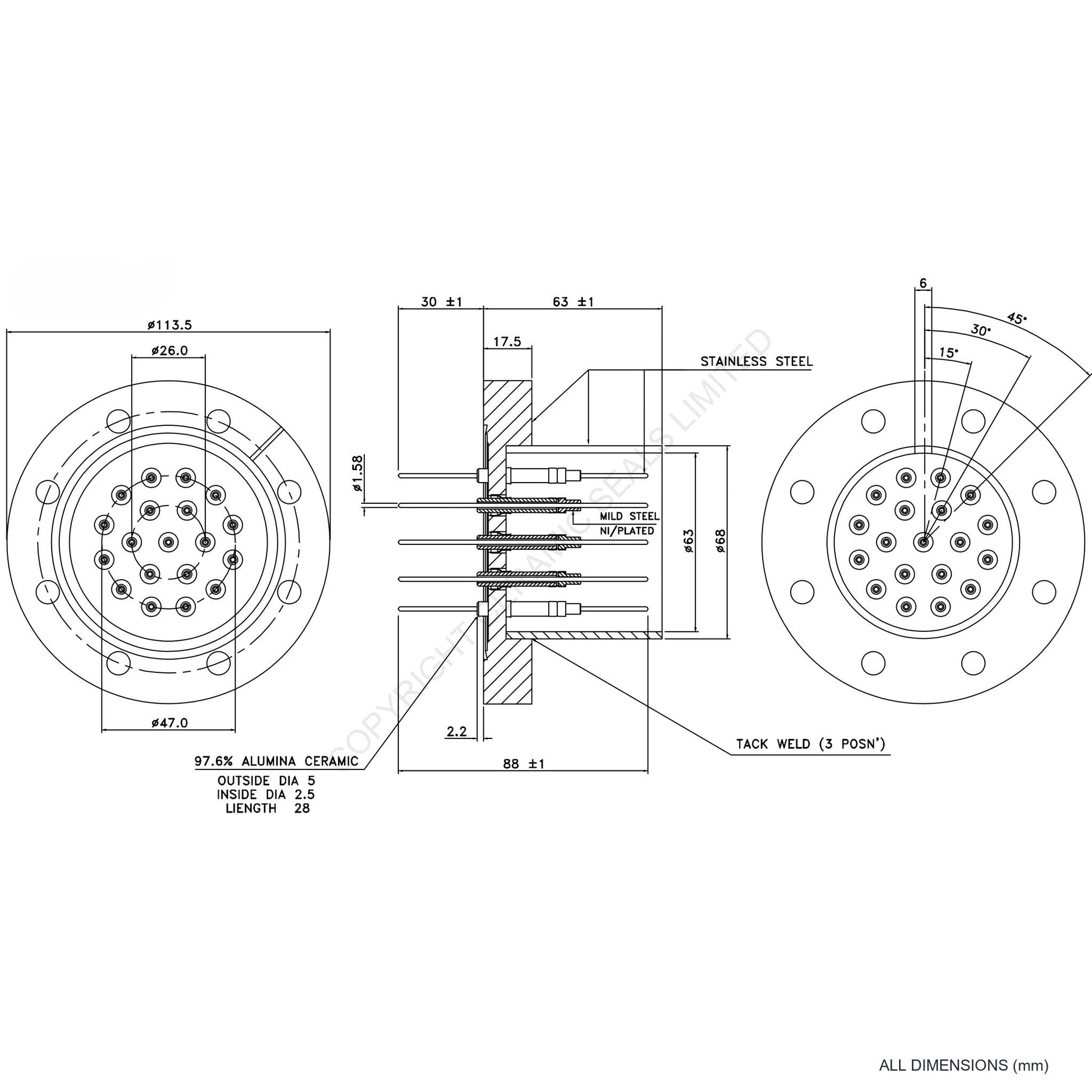

19 Pin Socket with 114mm CF Flange termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Atmosphere Plug E4008010
Breakdown Voltage Pin To Ground 7.5kV
Breakdown Voltage Pin To Pin 7.5kV
Current Rating 2.5A
Flange Material Stainless Steel (1.4307)
Gasket O Ring Material Copper Fixed
Insulating Material Alumina (96-98%)
Magnetic Yes
Multi Pin Type Socket
No Of Pins 19
Termination CF Flange
Termination Size 114mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Vacuum Connector E9005040
Working Temperature -196°C to 450°C
