2.5kV Isolator

2.5kV Isolator

Working Voltage: 2.5kV

Current Rating:

Conductor Material:

1 1

Product Code: F2000510

Estimated Lead Time: Confirmed on Request

Quantity

Product Description

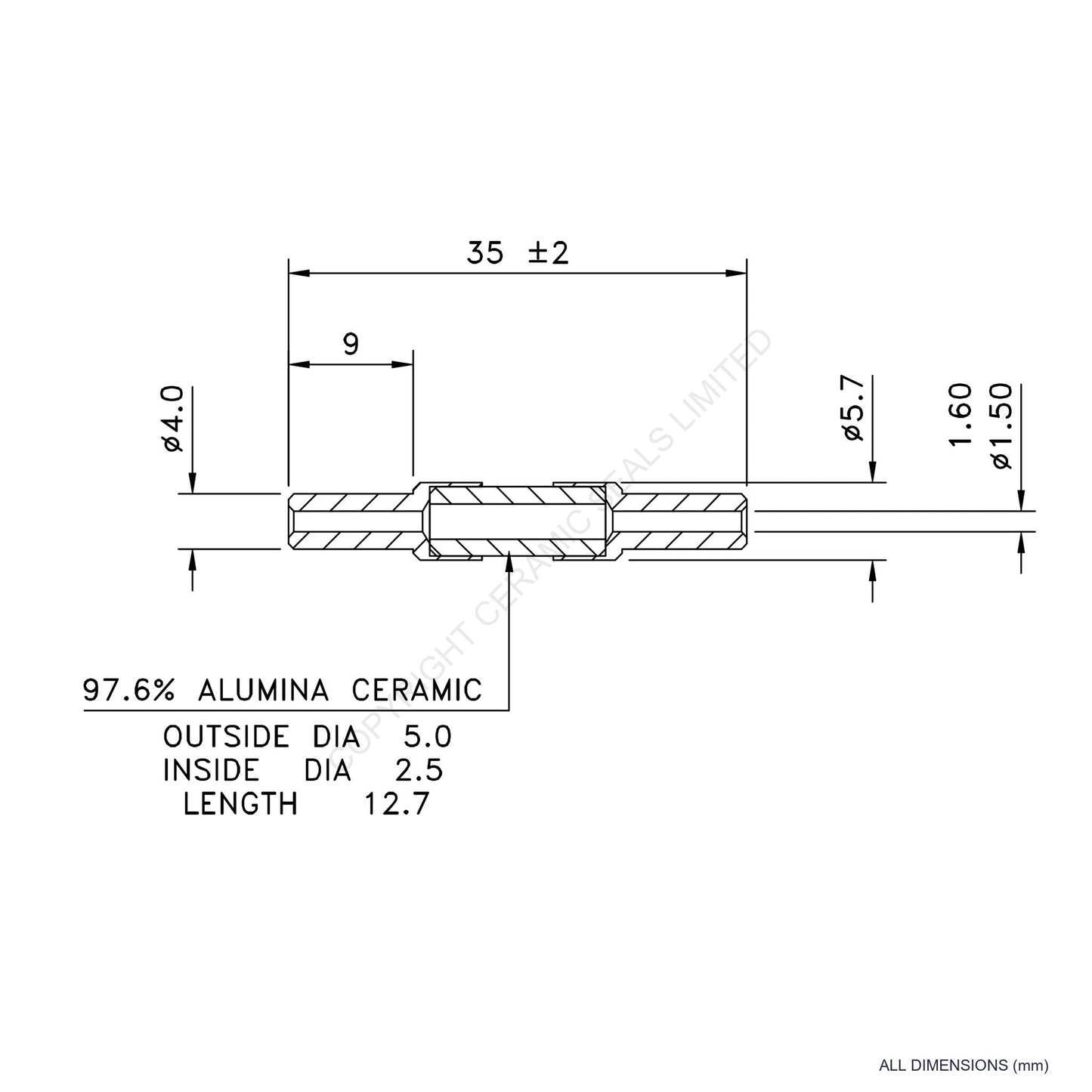

2.5kV Isolator with 1.6/1.5mm Tube termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet

View full details

General Specifications

Insulating Material Alumina (96-98%)

Isolator Type Isolator

Magnetic Yes

Termination Tube

Termination Size 1.6/1.5mm

U H V Capability < 1 x 10¯⁹ mbar l s¯¹

Working Temperature -196°C to 450°C

Working Voltage 2.5kV

Product Code: F2000510

2.5kV Isolator

2.5kV Isolator with 1.6/1.5mm Tube termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Insulating Material Alumina (96-98%)

Isolator Type Isolator

Magnetic Yes

Termination Tube

Termination Size 1.6/1.5mm

U H V Capability < 1 x 10¯⁹ mbar l s¯¹

Working Temperature -196°C to 450°C

Working Voltage 2.5kV
