2 Pair Thermocouple Flanged Type R incl. Compensating Cables
Working Voltage: -
Current Rating: -
Conductor Material: Platinum - 13% Rhodium / Platinum

General Specifications
Conductor
Material
Platinum - 13% Rhodium / Platinum
Feedthrough
Style
Pair
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Termination
CF Flange
Termination
Size
34mm
Thermocouple
Range
0°C to 1600°C
Thermocouple
Termination
Loop
Thermocouple
Type
Type R
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Product Code: D4002040

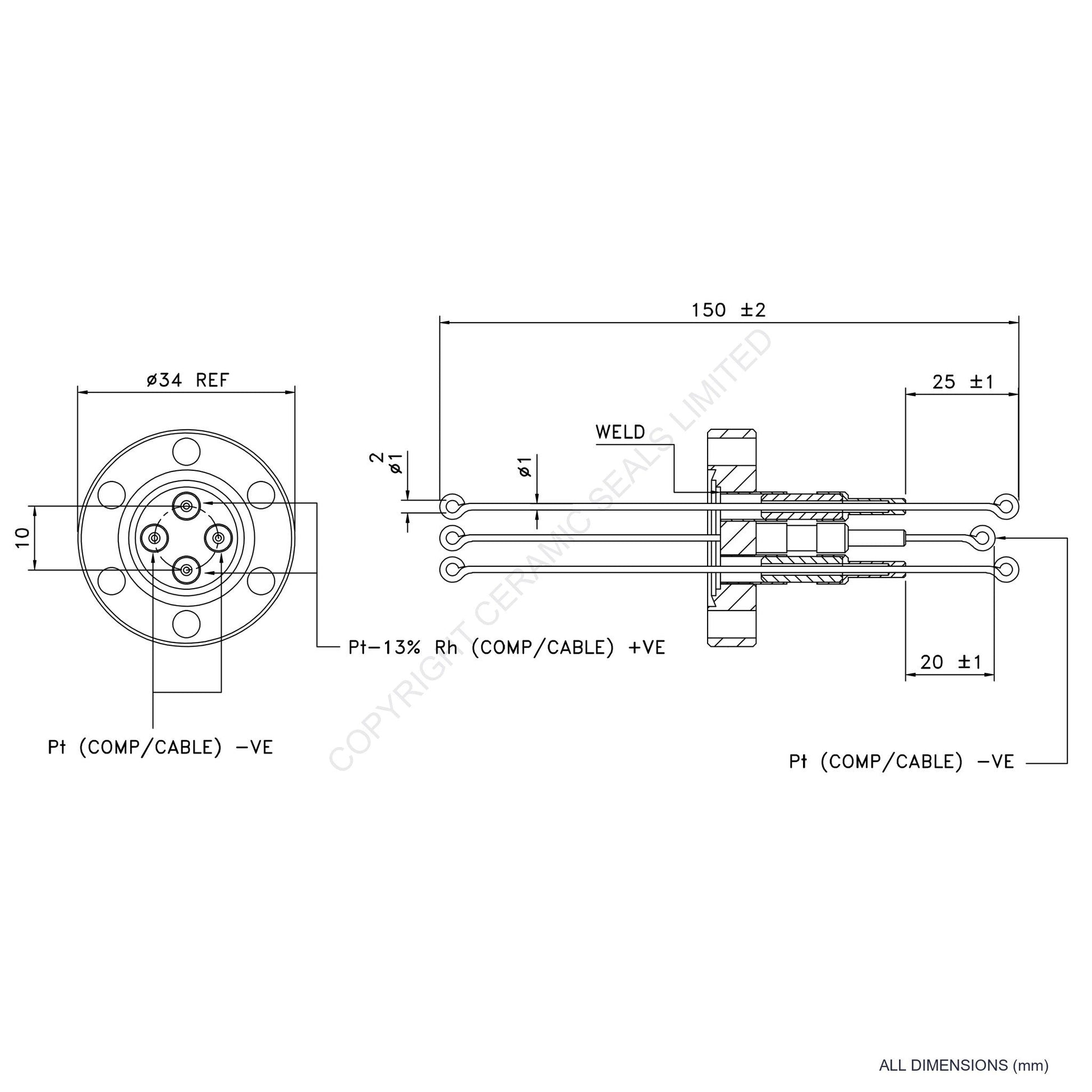

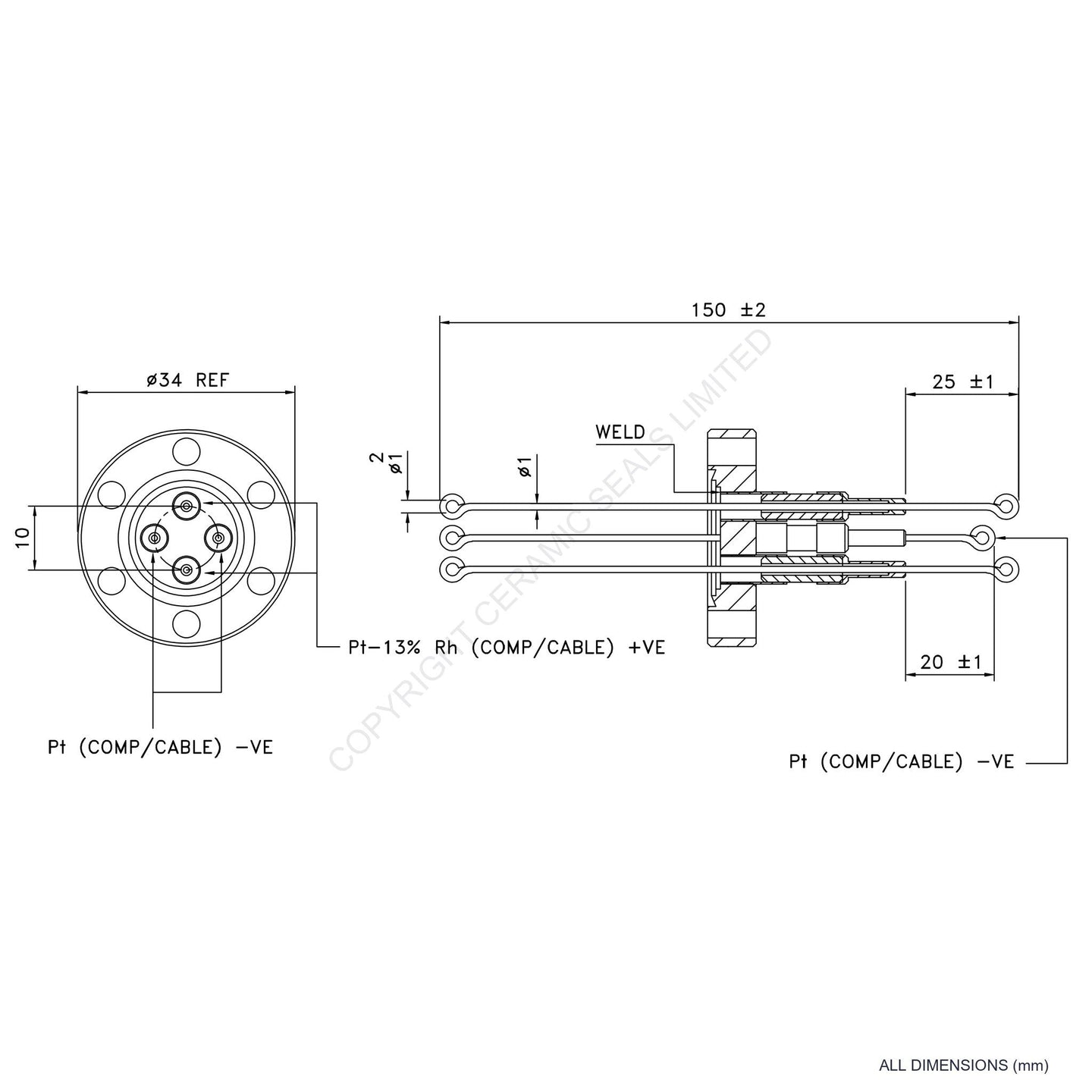

2 Pair Thermocouple Flanged Type R incl. Compensating Cables
Type R thermocouple feedthrough with Platinum - 13% Rhodium / Platinum conductors and Loop terminations. 34mm CF Flange mounting. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Conductor
Material
Platinum - 13% Rhodium / Platinum
Feedthrough
Style
Pair
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Termination
CF Flange
Termination
Size
34mm
Thermocouple
Range
0°C to 1600°C
Thermocouple
Termination
Loop
Thermocouple
Type
Type R
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
