2 Pair Thermocouple O-Ring Type J
Working Voltage: -
Current Rating: -
Conductor Material: Iron / Constantan

General Specifications
Conductor
Material
Iron / Constantan
Feedthrough
Style
Pair
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Nitrile
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Termination
Klein Flange
Termination
Size
40mm
Thermocouple
Range
20°C to 700°C
Thermocouple
Termination
Plain
Thermocouple
Type
Type J
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-20°C to 150°C
Product Code: D3003020

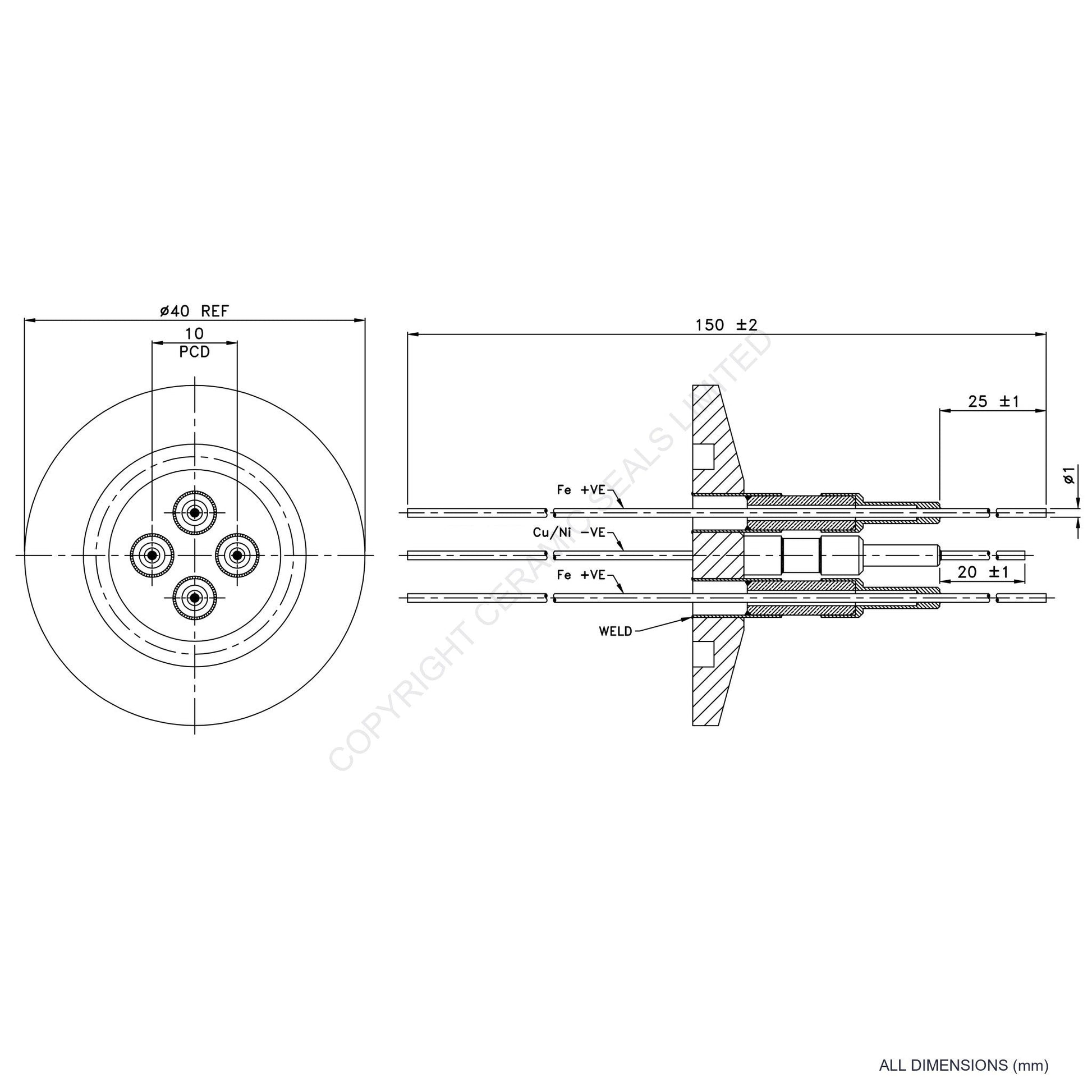

2 Pair Thermocouple O-Ring Type J
Type J thermocouple feedthrough with Iron / Constantan conductors and Plain terminations. 40mm Klein Flange mounting. Rated for a working temperature of -20°C to 150°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Conductor
Material
Iron / Constantan
Feedthrough
Style
Pair
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Nitrile
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Termination
Klein Flange
Termination
Size
40mm
Thermocouple
Range
20°C to 700°C
Thermocouple
Termination
Plain
Thermocouple
Type
Type J
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-20°C to 150°C
