2 Pair Thermocouple O-Ring Type K

Working Voltage: -

Current Rating: -

Conductor Material: Chromel / Alumel

1 1
Product Code: D3003030
Estimated Lead Time: Confirmed on Request

Product Description

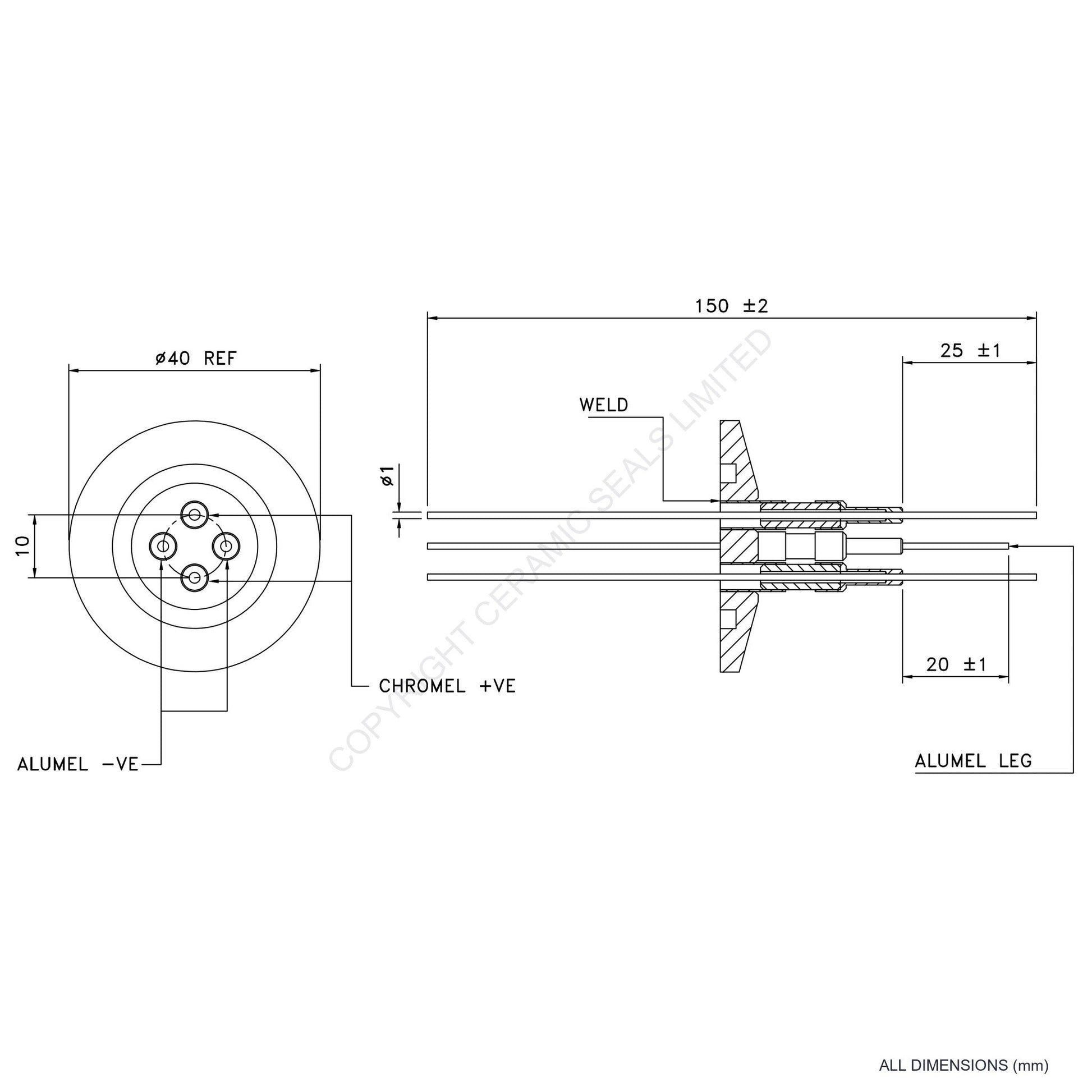

Type K thermocouple feedthrough with Chromel / Alumel conductors and Plain terminations. 40mm Klein Flange mounting. Rated for a working temperature of -20°C to 150°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Conductor Material Chromel / Alumel
Feedthrough Style Pair
Flange Material Stainless Steel (1.4307)
Gasket O Ring Material Nitrile
Insulating Material Alumina (96-98%)
Magnetic Yes
Termination Klein Flange
Termination Size 40mm
Thermocouple Range 0°C to 1100°C
Thermocouple Termination Plain
Thermocouple Type Type K
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -20°C to 150°C
