2 Pair Thermocouple O-Ring Type T

Working Voltage: -

Current Rating: -

Conductor Material: Copper / Constantan

1 1
Product Code: D4003010
Estimated Lead Time: Confirmed on Request

Product Description

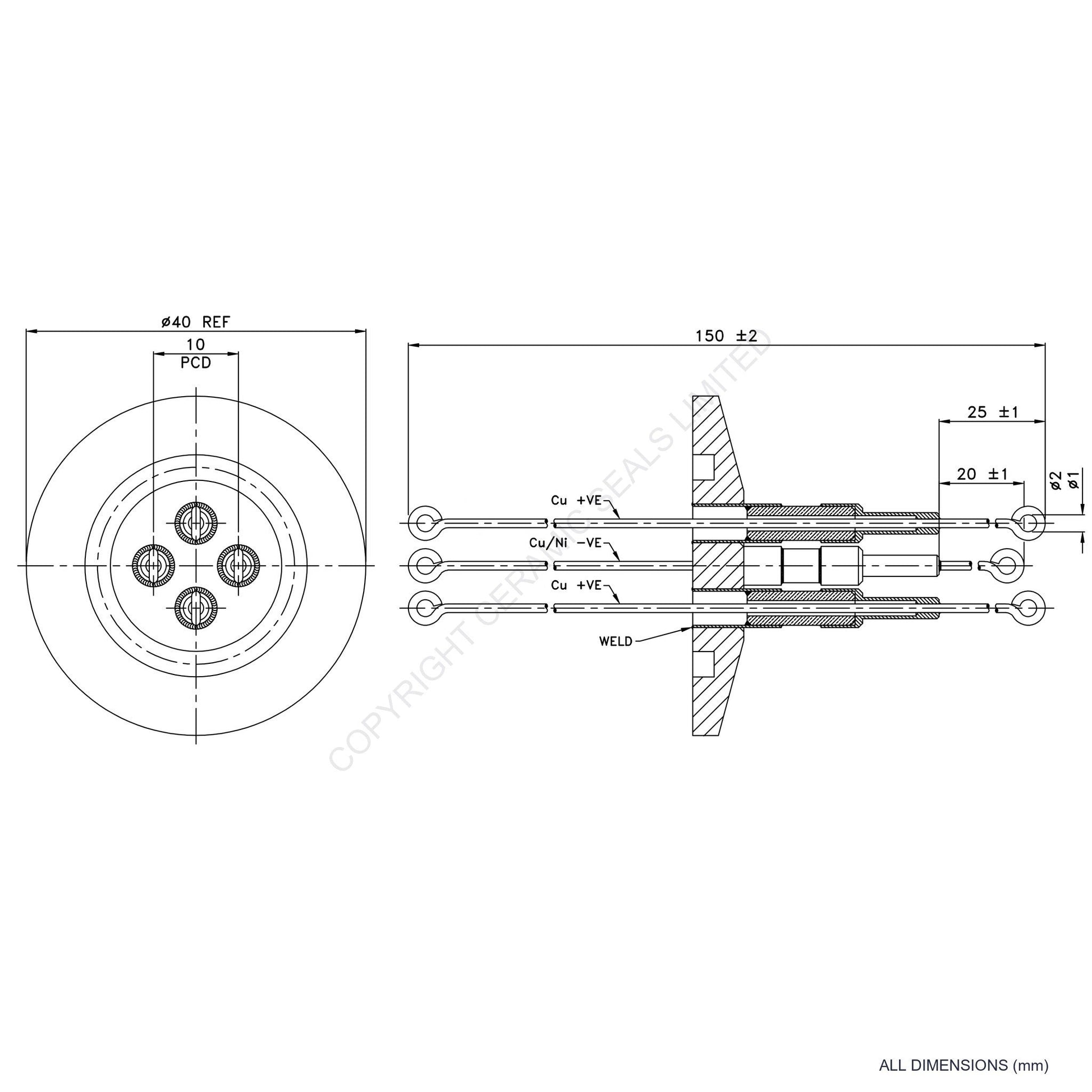

Type T thermocouple feedthrough with Copper / Constantan conductors and Loop terminations. 40mm Klein Flange mounting. Rated for a working temperature of -20°C to 150°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Conductor Material Copper / Constantan
Feedthrough Style Pair
Flange Material Stainless Steel (1.4307)
Gasket O Ring Material Nitrile
Insulating Material Alumina (96-98%)
Magnetic Yes
Termination Klein Flange
Termination Size 40mm
Thermocouple Range -185°C to 300°C
Thermocouple Termination Loop
Thermocouple Type Type T
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -20°C to 150°C
