25kV Flanged Vacuum Break
Working Voltage: 25.0kV
Current Rating:
Conductor Material:

General Specifications
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Isolator
Type
Vacuum Break
Magnetic
Yes
Termination
CF Flange
Termination
Size
60mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
25.0kV
Product Code: F3004020

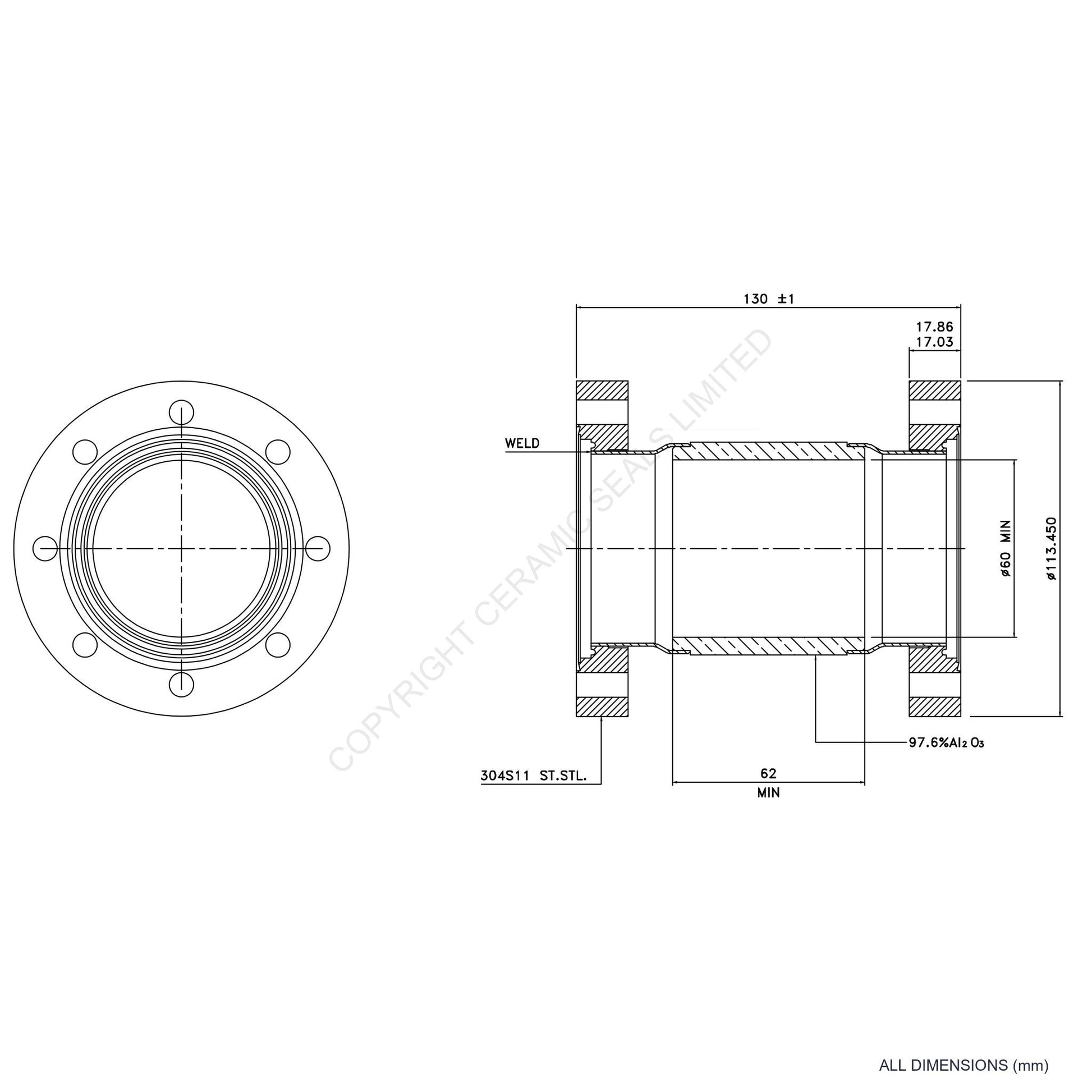

25kV Flanged Vacuum Break
25.0kV Vacuum Break with 60mm CF Flange termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Isolator
Type
Vacuum Break
Magnetic
Yes
Termination
CF Flange
Termination
Size
60mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
25.0kV
