30kV Feedthrough Assembly

Working Voltage: 30.0kV

Current Rating: 150A

Conductor Material: OFHC Copper

Skip to product information
1 of 1
Product Code: B4501060
Estimated Lead Time: Confirmed on Request

Product Description

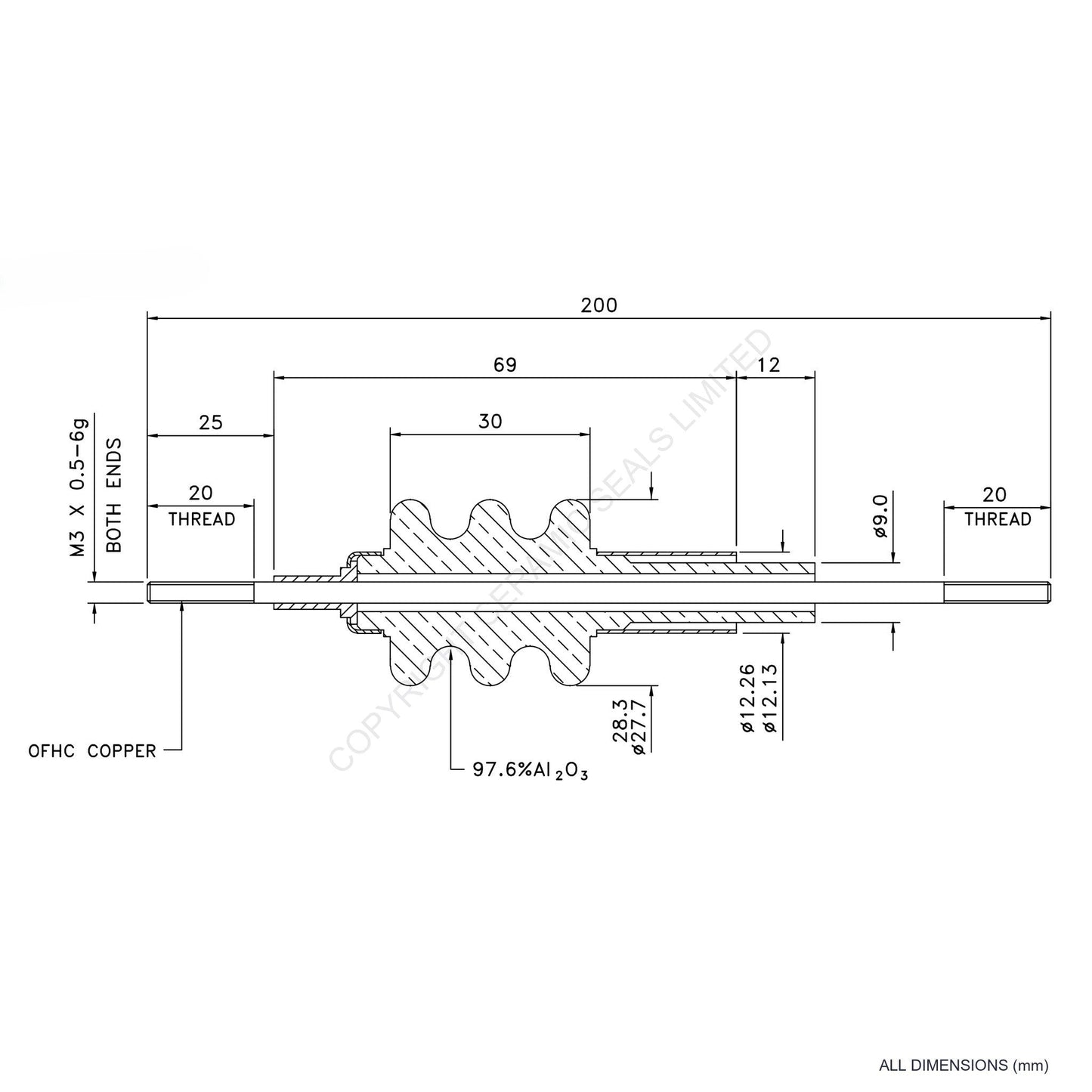

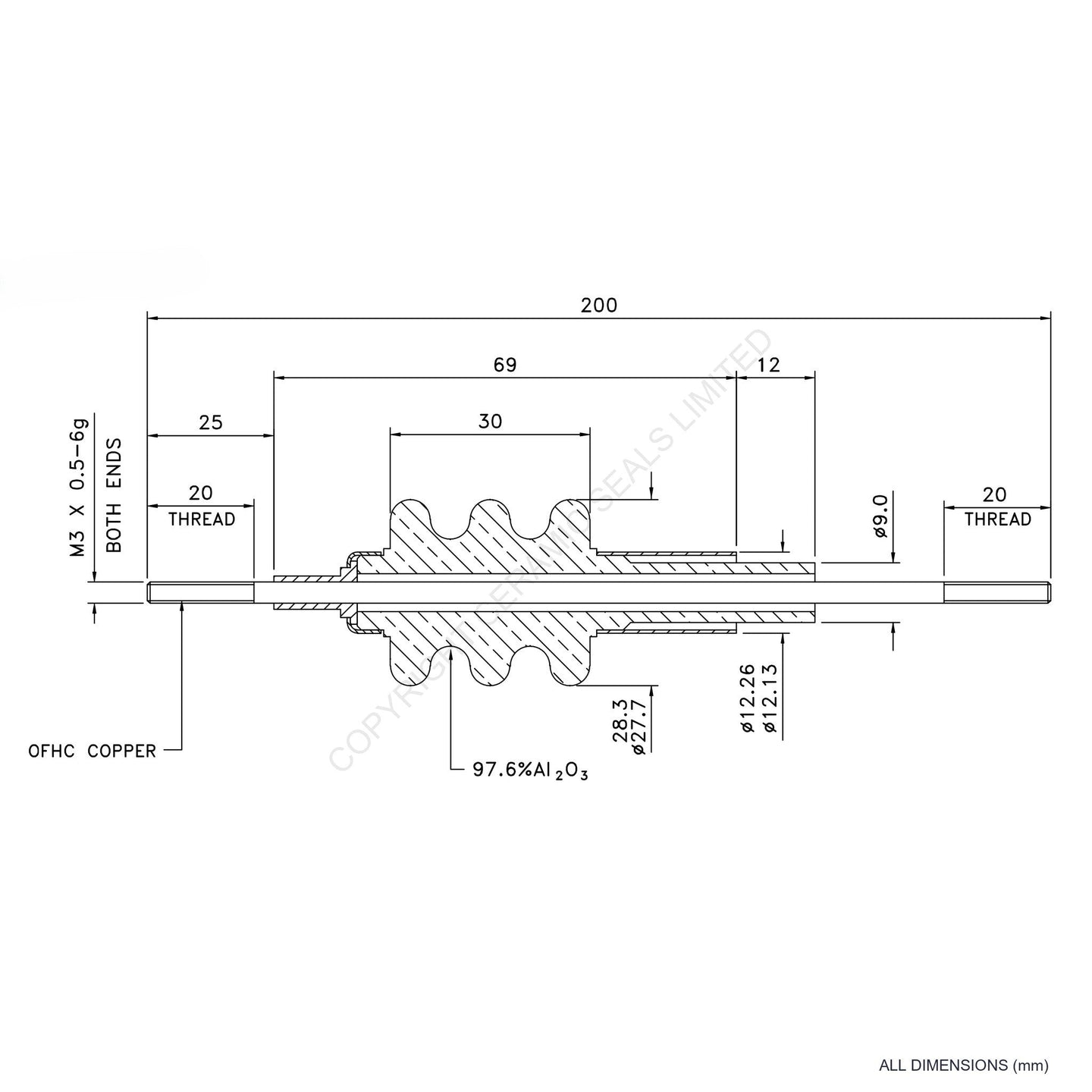

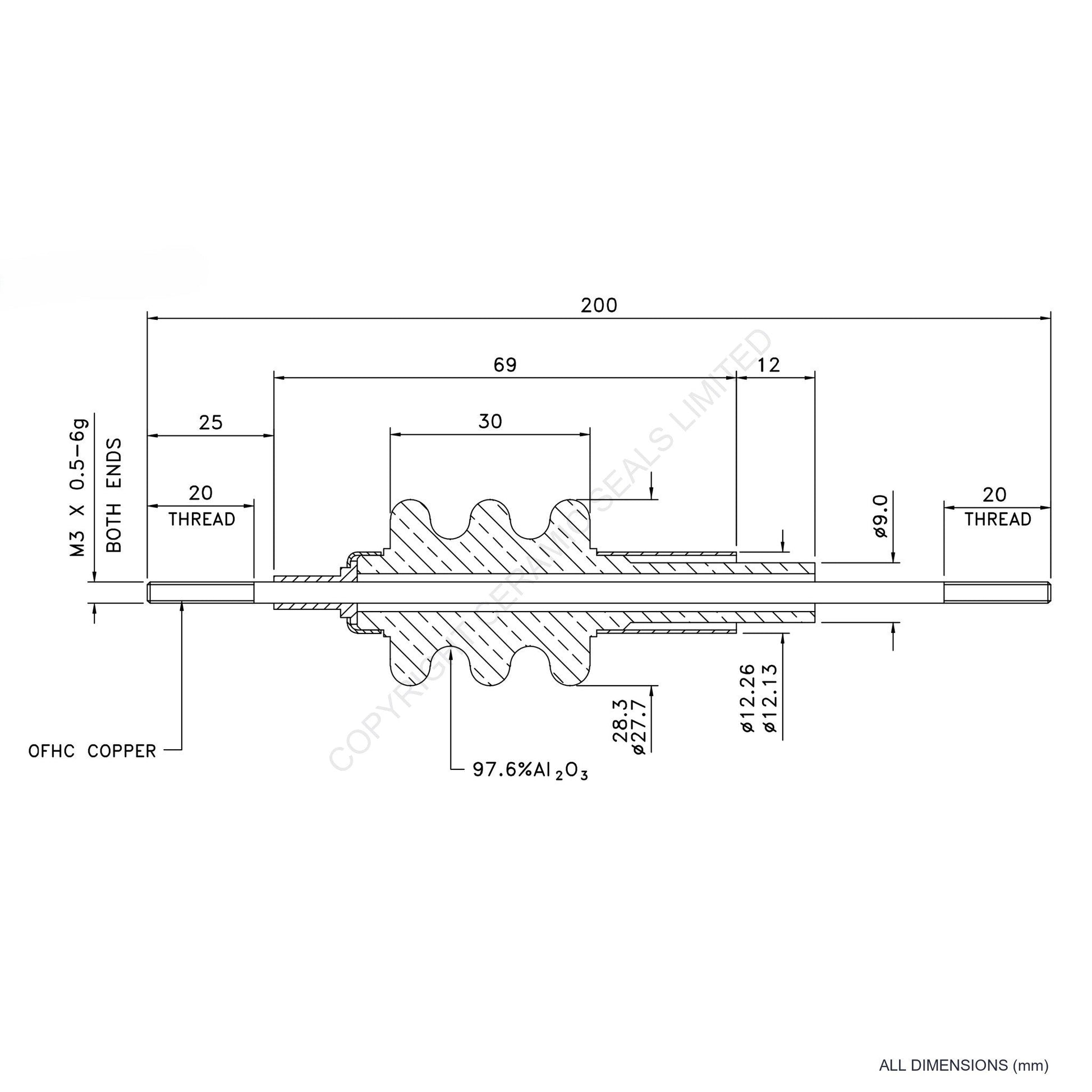

30.0kV 150A High Voltage feedthrough with 12.26/12.13mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

View full details

General Specifications

Conductor Material OFHC Copper
Current Rating 150A
Insulating Material Alumina (96-98%)
Magnetic Yes
No Of Conductors 1
Termination Tube (Weld)
Termination Size 12.26/12.13mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
Working Voltage 30.0kV
