5 Pair Thermocouple Flanged Type K
Working Voltage: -
Current Rating: -
Conductor Material: Chromel / Alumel

General Specifications
Conductor
Material
Chromel / Alumel
Feedthrough
Style
Pair
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Plug
D5009003
Termination
CF Flange
Termination
Size
70mm
Thermocouple
Range
0°C to 1100°C
Thermocouple
Termination
Spade
Thermocouple
Type
Type K
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Product Code: D5006030

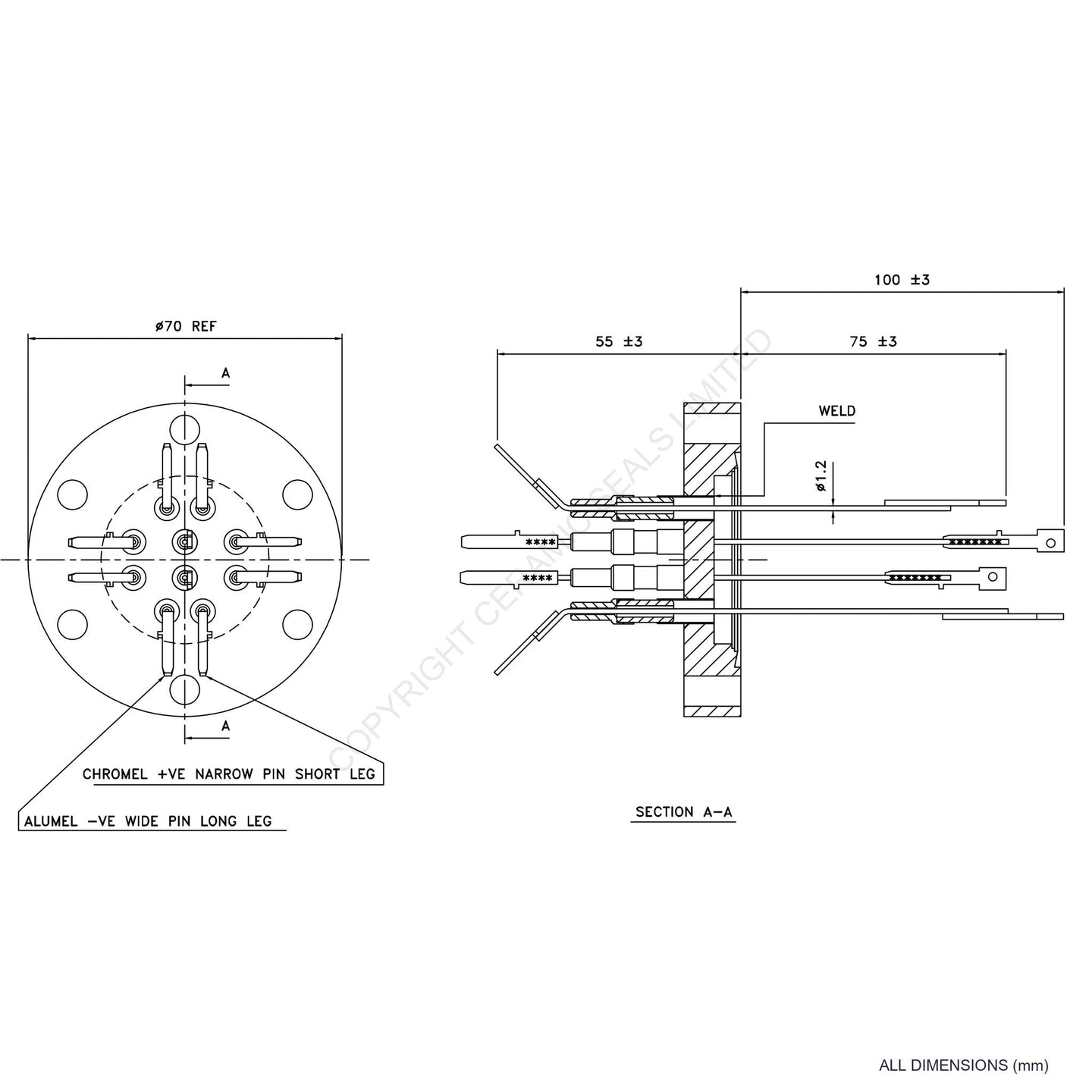

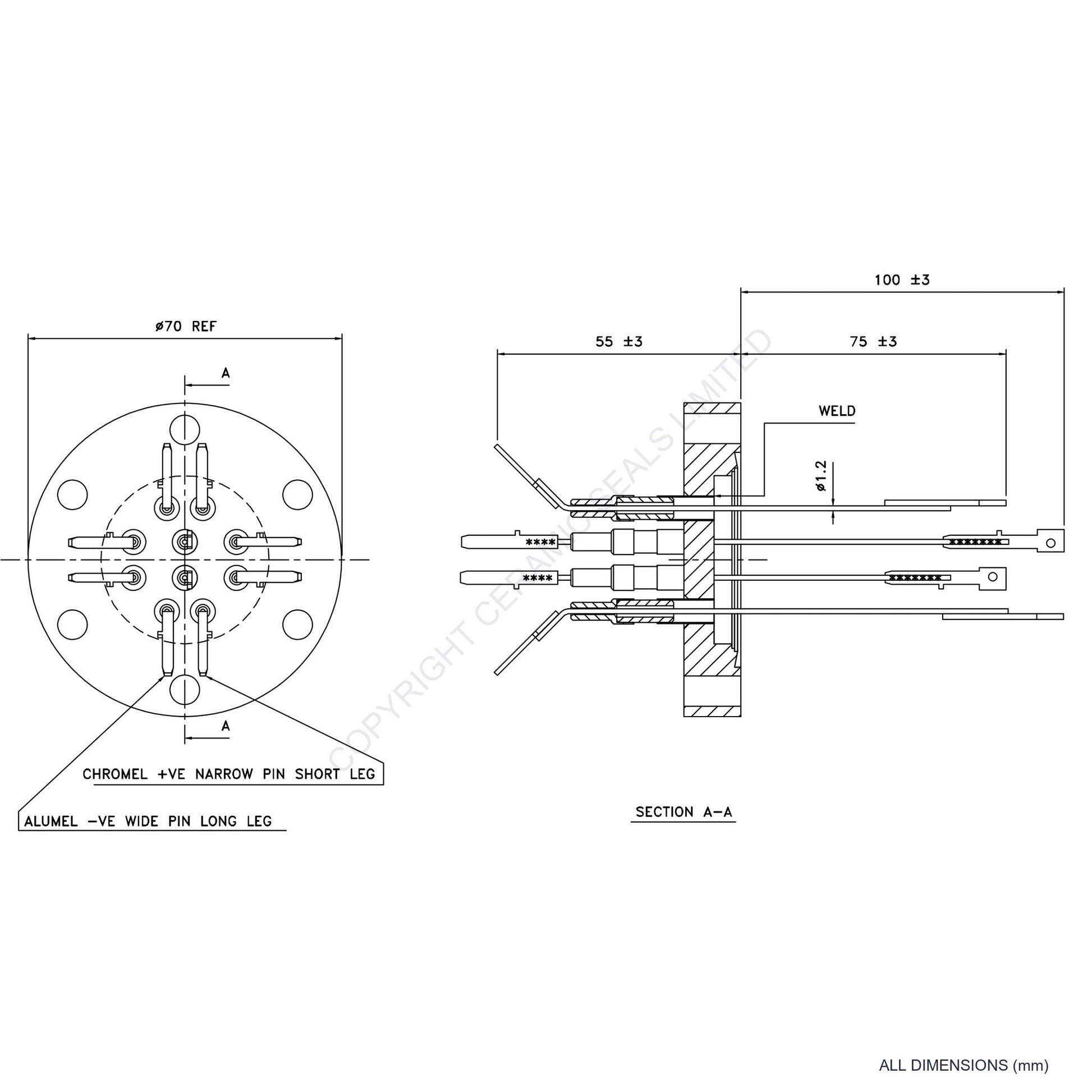

5 Pair Thermocouple Flanged Type K
Type K thermocouple feedthrough with Chromel / Alumel conductors and Spade terminations. 70mm CF Flange mounting. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Conductor
Material
Chromel / Alumel
Feedthrough
Style
Pair
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Plug
D5009003
Termination
CF Flange
Termination
Size
70mm
Thermocouple
Range
0°C to 1100°C
Thermocouple
Termination
Spade
Thermocouple
Type
Type K
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
