500V 2 Way Double Ended BNC

Working Voltage: 500V

Current Rating: 3A

Conductor Material:

1 1
Product Code: C2007730
Estimated Lead Time: Confirmed on Request

Product Description

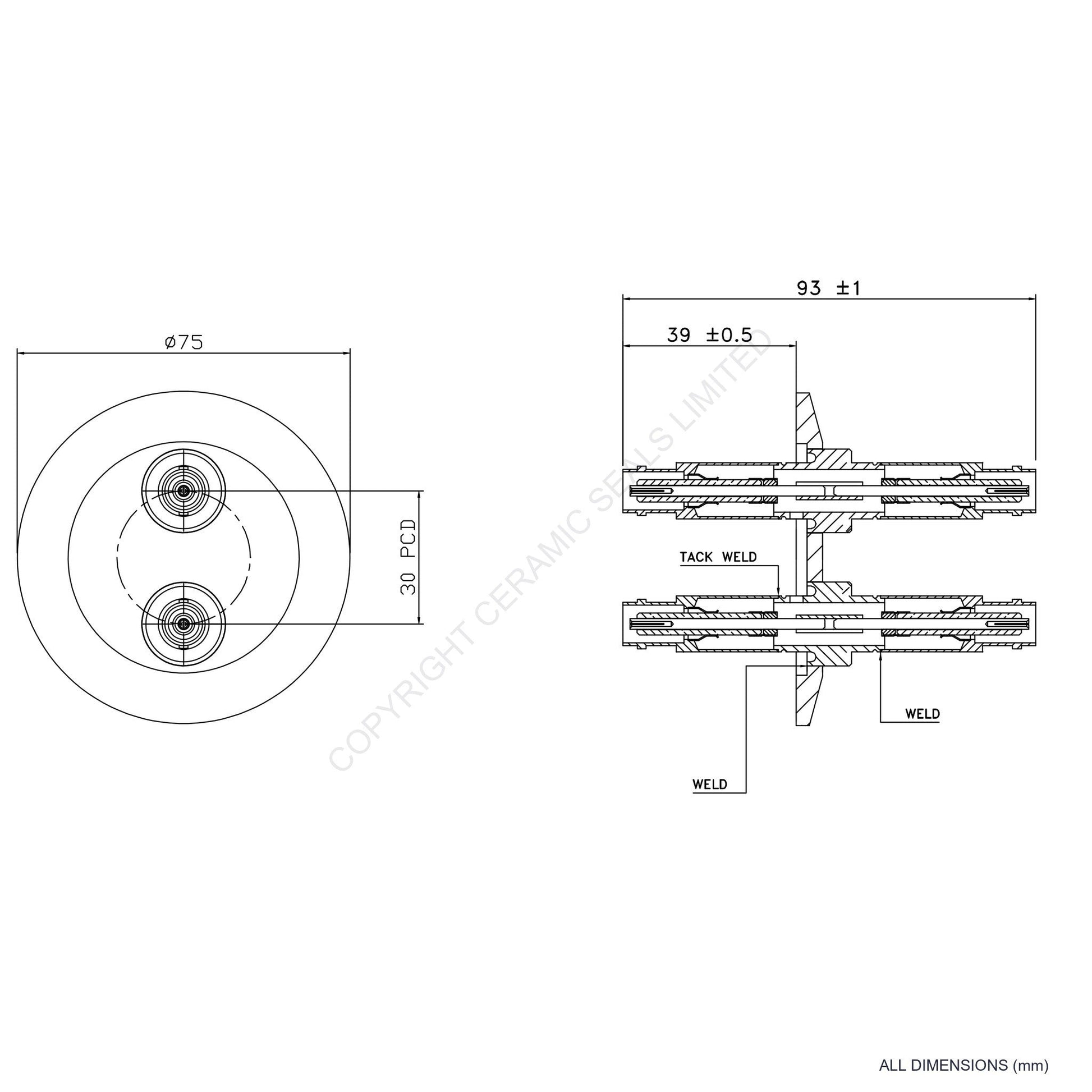

500V Double Ended BNC connector with 75mm Klein Flange termination. Rated for a working temperature of -20°C to 150°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Air Side Plug C2009001
Configuration Double Ended
Connector Type BNC
Current Rating 3A
Feedthrough Quantity 2
Flange Material Stainless Steel (1.4307)
Gasket Nitrile Material Nitrile
Insulating Material Alumina (96-98%)
Magnetic Yes
Shielding Grounded
Termination Klein Flange
Termination Size 75mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Vacuum Connector C2009001
Working Temperature -20°C to 150°C
Working Voltage 500V
