500V BNC 2 Way O-Ring Assembly
Working Voltage: 500V
Current Rating: 3A
Conductor Material:

General Specifications
Air
Side
Plug
C2009001
Configuration
Single Ended
Connector
Type
BNC
Current
Rating
3A
Feedthrough
Quantity
2
Flange
Material
Stainless Steel (1.4307)
Gasket
Nitrile
Material
Nitrile
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Klein Flange
Termination
Size
75mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-20°C to 150°C
Working
Voltage
500V
Product Code: C2007010

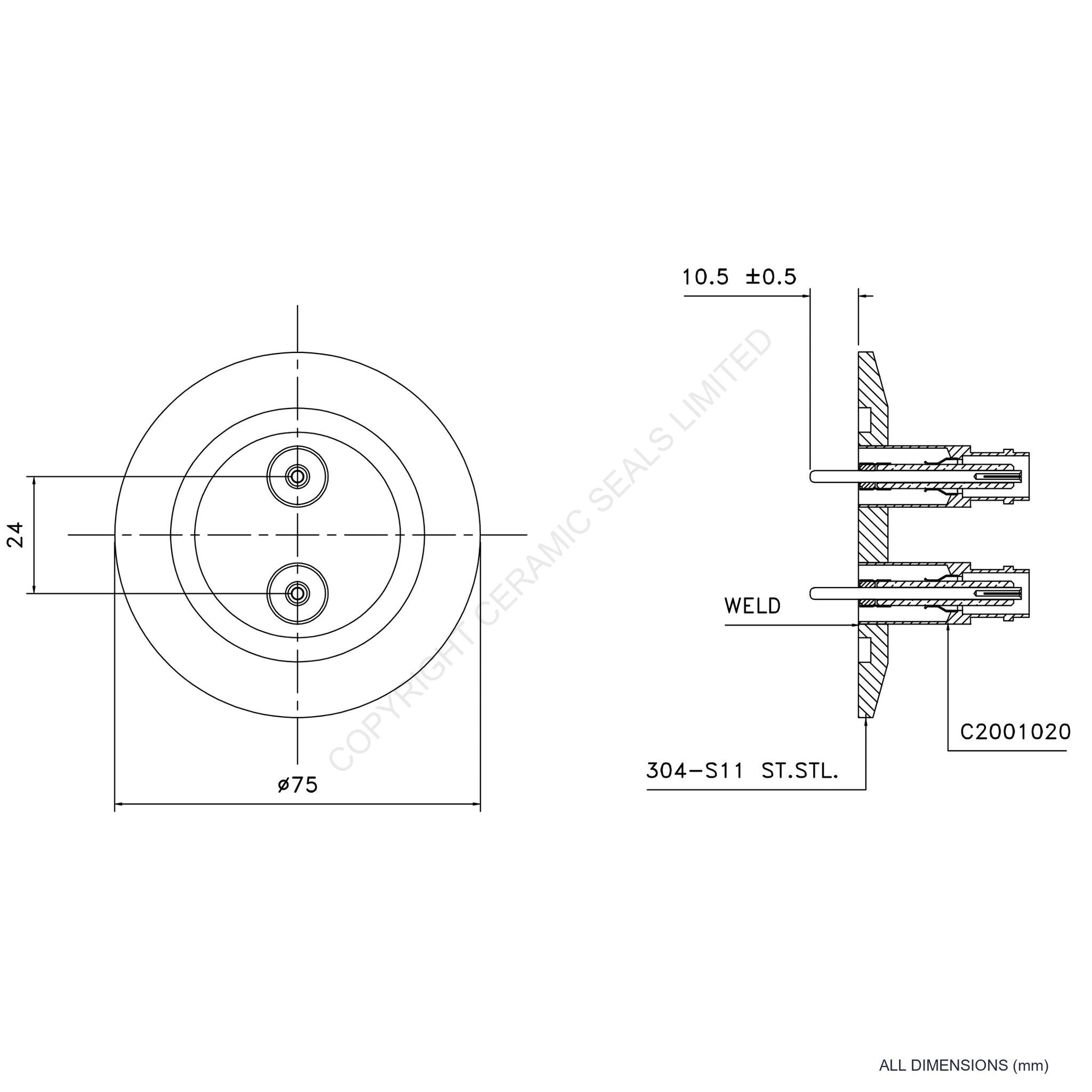

500V BNC 2 Way O-Ring Assembly
500V Single Ended BNC connector with 75mm Klein Flange termination. Rated for a working temperature of -20°C to 150°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Air
Side
Plug
C2009001
Configuration
Single Ended
Connector
Type
BNC
Current
Rating
3A
Feedthrough
Quantity
2
Flange
Material
Stainless Steel (1.4307)
Gasket
Nitrile
Material
Nitrile
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Klein Flange
Termination
Size
75mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-20°C to 150°C
Working
Voltage
500V
