500V Double Ended BNC
Working Voltage: 500V
Current Rating: 3A
Conductor Material:

General Specifications
Air
Side
Plug
C2009001
Configuration
Double Ended
Connector
Type
BNC
Current
Rating
3A
Feedthrough
Quantity
1
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Skirt (Weld)
Termination
Size
18.95/18.85mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Vacuum
Connector
C2009001
Working
Temperature
-196°C to 450°C
Working
Voltage
500V
Product Code: C2007510

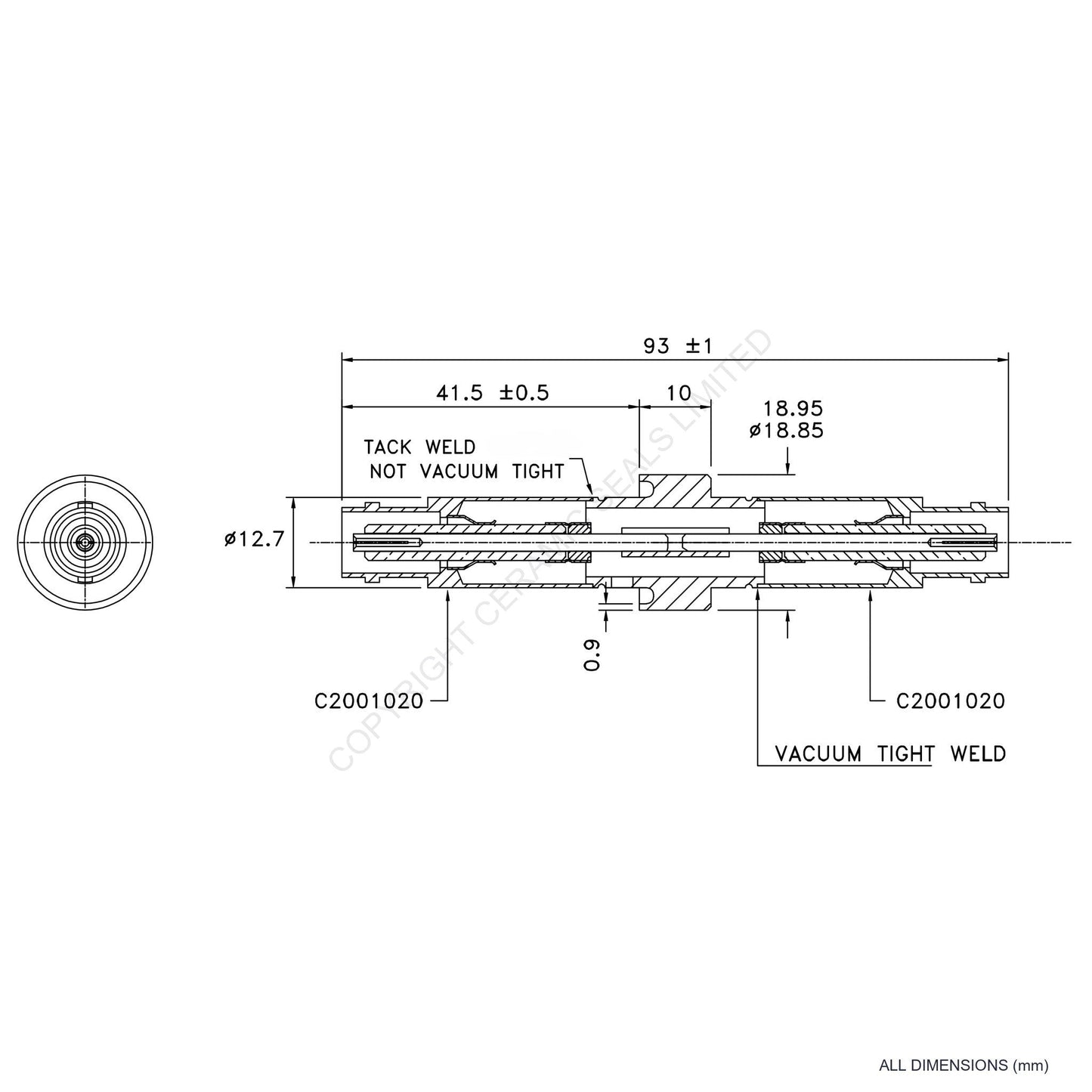

500V Double Ended BNC
500V Single Ended BNC connector with 18.95/18.85mm Skirt (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Air
Side
Plug
C2009001
Configuration
Double Ended
Connector
Type
BNC
Current
Rating
3A
Feedthrough
Quantity
1
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Skirt (Weld)
Termination
Size
18.95/18.85mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Vacuum
Connector
C2009001
Working
Temperature
-196°C to 450°C
Working
Voltage
500V
