500V Instrumentation Feedthrough

Working Voltage: 500V

Current Rating: 1A

Conductor Material: Stainless Steel

1 1
Product Code: B1000520
Estimated Lead Time: Confirmed on Request

Product Description

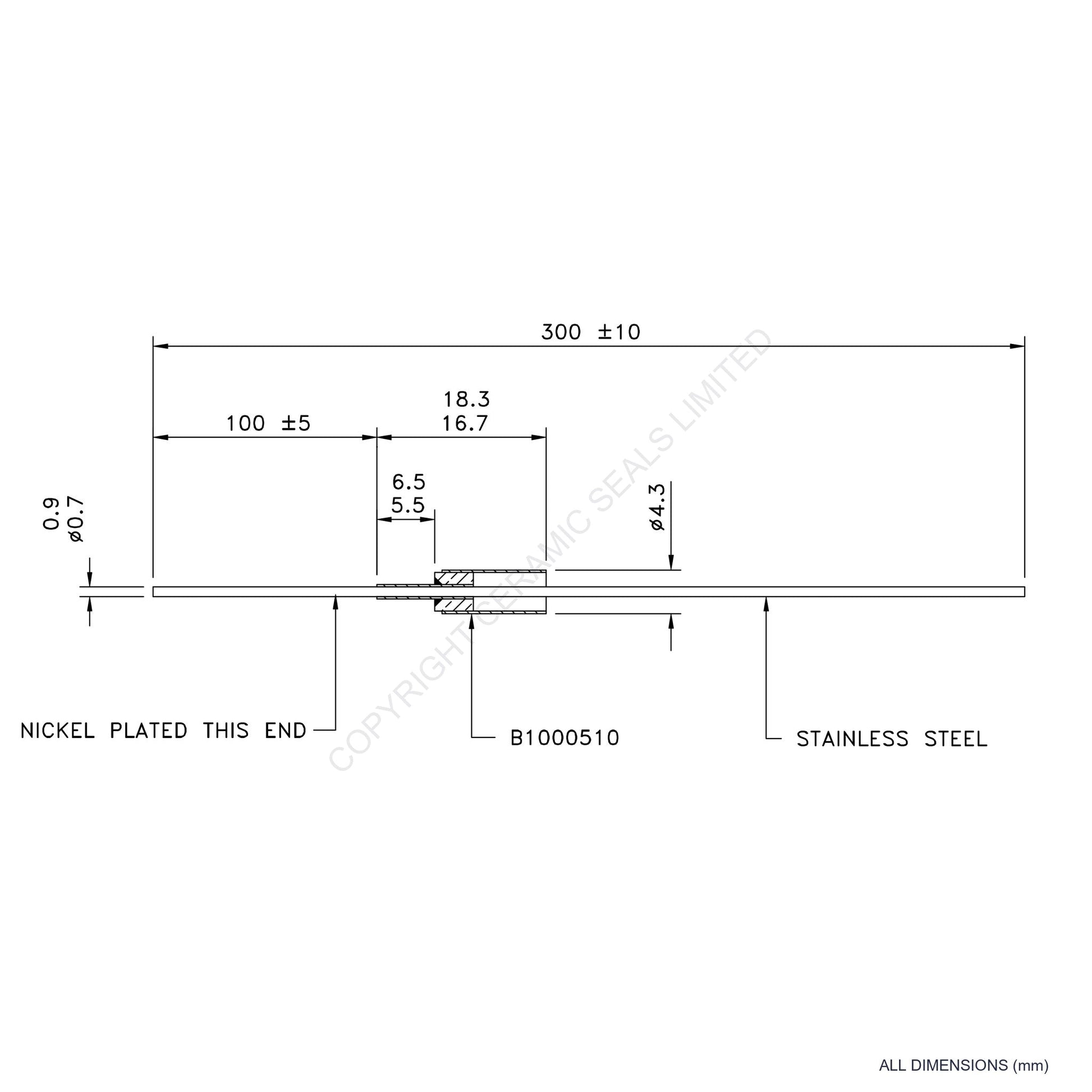

500V 1A Instrumentation feedthrough with 4.70/4.30mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Conductor Material Stainless Steel
Current Rating 1A
Insulating Material Alumina (96-98%)
Magnetic Yes
No Of Conductors 1
Termination Tube (Weld)
Termination Size 4.70/4.30mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
Working Voltage 500V
