5kV 2 Way Double Ended MHV O-Ring Flanged
Working Voltage: 5.0kV
Current Rating: 3A
Conductor Material:

General Specifications
Air
Side
Plug
C3009001
Configuration
Double Ended
Connector
Type
MHV
Current
Rating
3A
Feedthrough
Quantity
2
Flange
Material
Stainless Steel (1.4307)
Gasket
Nitrile
Material
Nitrile
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Klein Flange
Termination
Size
75mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Vacuum
Connector
C3009001
Working
Temperature
-20°C to 150°C
Working
Voltage
5.0kV
Product Code: C3007730
5kV 2 Way Double Ended MHV O-Ring Flanged

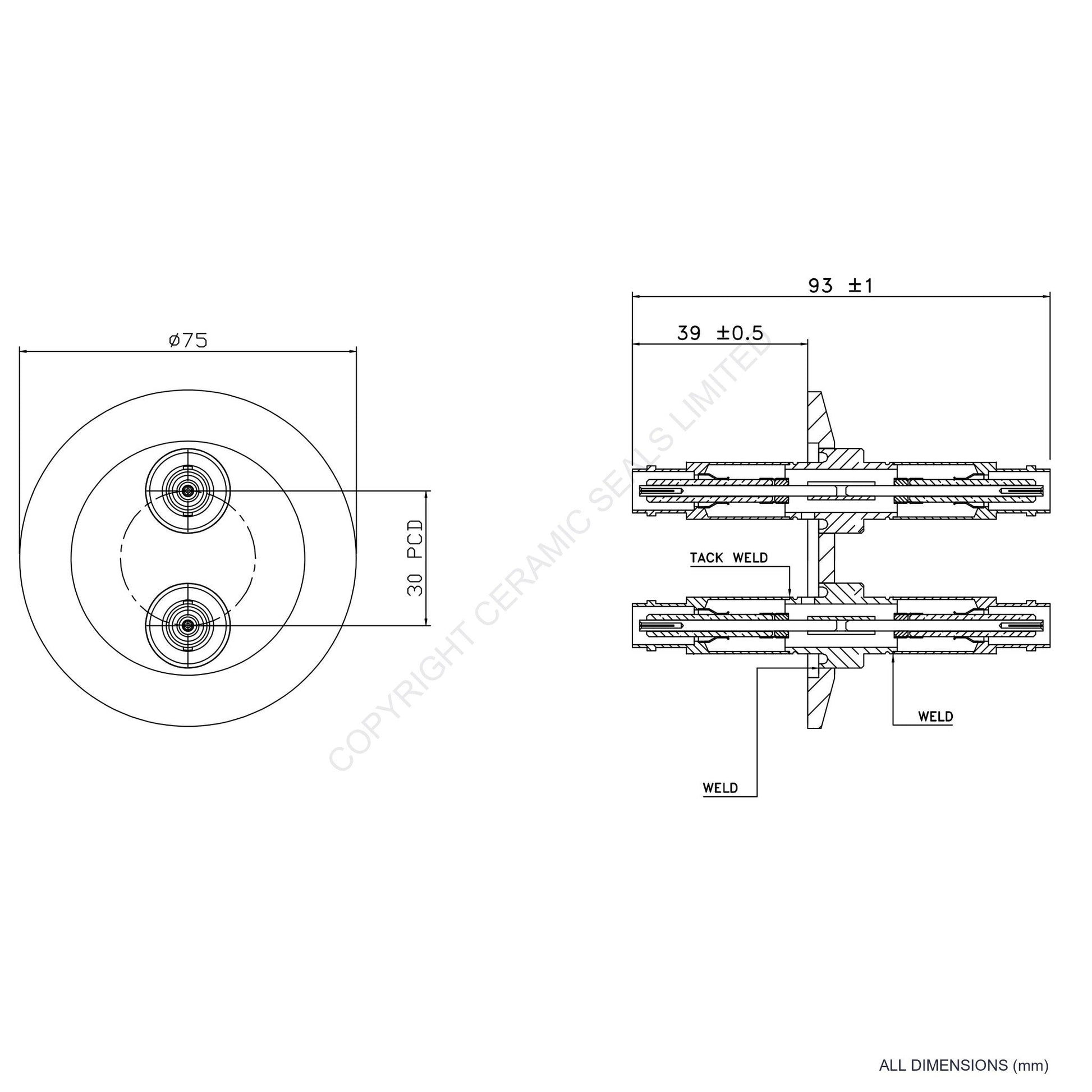

5.0kV Double Ended MHV connector with 75mm Klein Flange termination. Rated for a working temperature of -20°C to 150°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Air
Side
Plug
C3009001
Configuration
Double Ended
Connector
Type
MHV
Current
Rating
3A
Feedthrough
Quantity
2
Flange
Material
Stainless Steel (1.4307)
Gasket
Nitrile
Material
Nitrile
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Klein Flange
Termination
Size
75mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Vacuum
Connector
C3009001
Working
Temperature
-20°C to 150°C
Working
Voltage
5.0kV
