5kV 4 Way Double Ended MHV Flanged Assembly

Working Voltage: 5.0kV

Current Rating: 3A

Conductor Material:

1 1
Product Code: C3007640
Estimated Lead Time: Confirmed on Request

Product Description

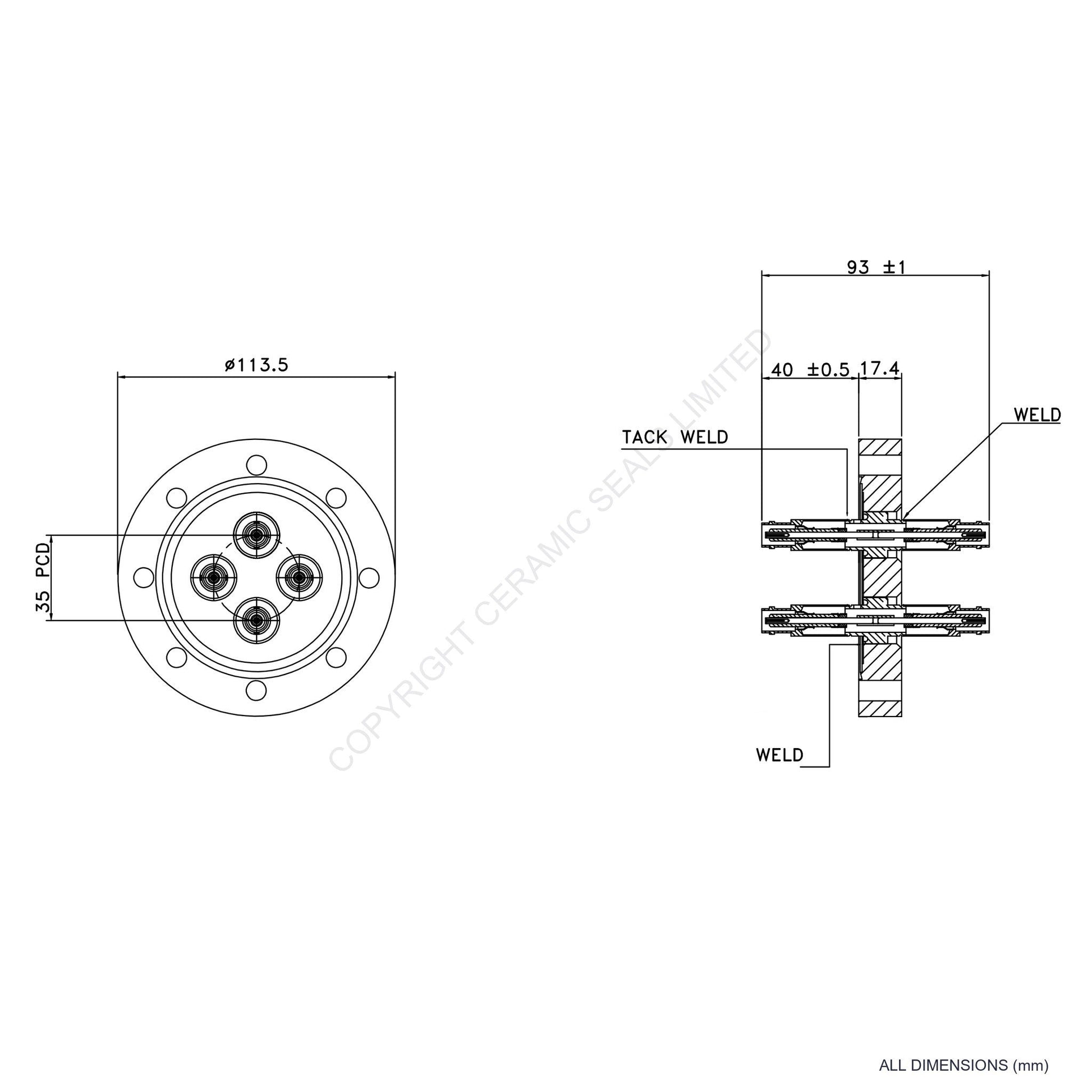

5.0kV Double Ended MHV connector with 114mm CF Flange termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Air Side Plug C3009001
Configuration Double Ended
Connector Type MHV
Current Rating 3A
Feedthrough Quantity 4
Flange Material Stainless Steel (1.4307)
Gasket Nitrile Material Copper
Insulating Material Alumina (96-98%)
Magnetic Yes
Shielding Grounded
Termination CF Flange
Termination Size 114mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Vacuum Connector C3009001
Working Temperature -196°C to 450°C
Working Voltage 5.0kV
