5kV Double Ended MHV
Working Voltage: 5.0kV
Current Rating: 3A
Conductor Material:

General Specifications
Air
Side
Plug
C3009001
Configuration
Double Ended
Connector
Type
MHV
Current
Rating
3A
Feedthrough
Quantity
1
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Skirt (Weld)
Termination
Size
18.95/18.85mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Vacuum
Connector
C3009001
Working
Temperature
-196°C to 450°C
Working
Voltage
5.0kV

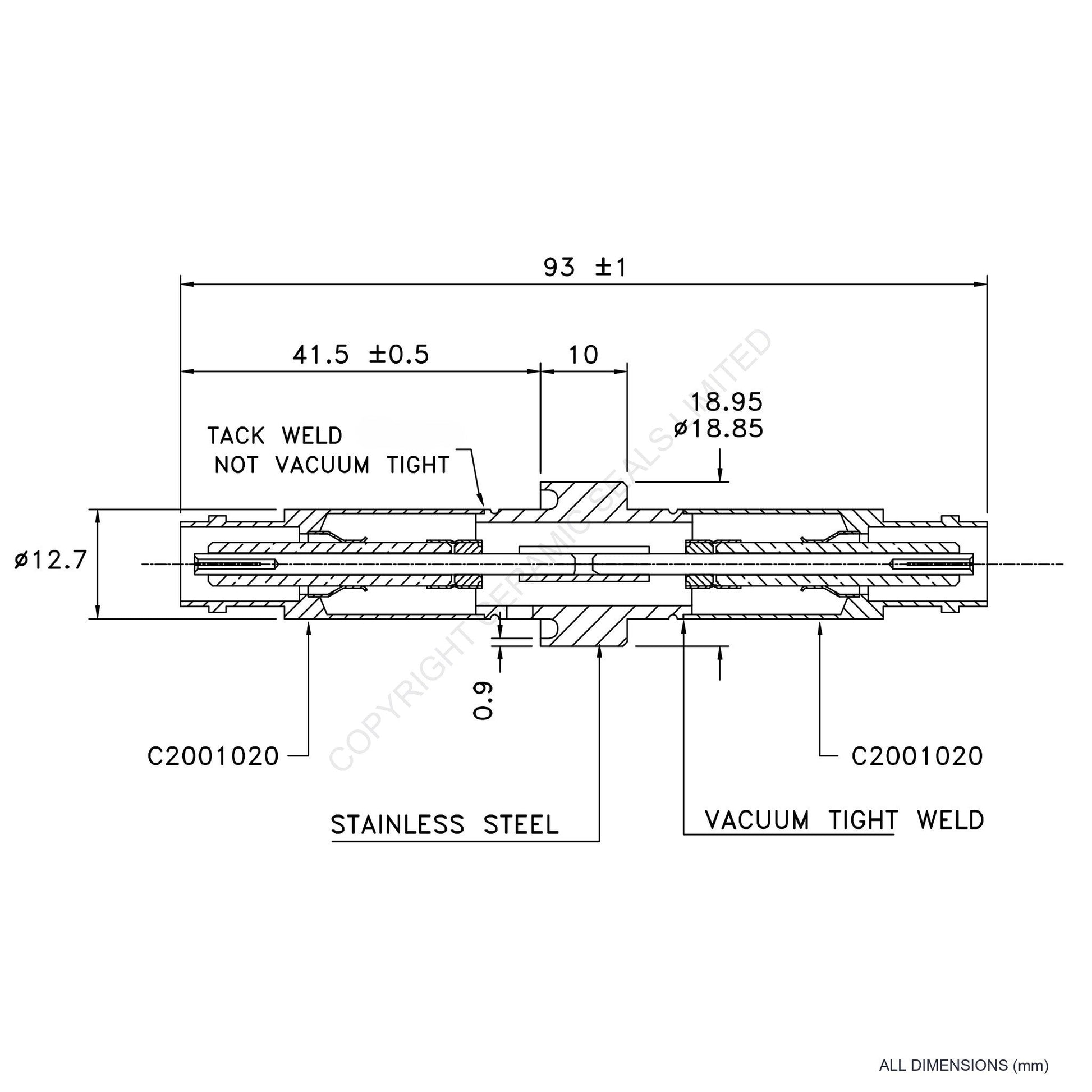

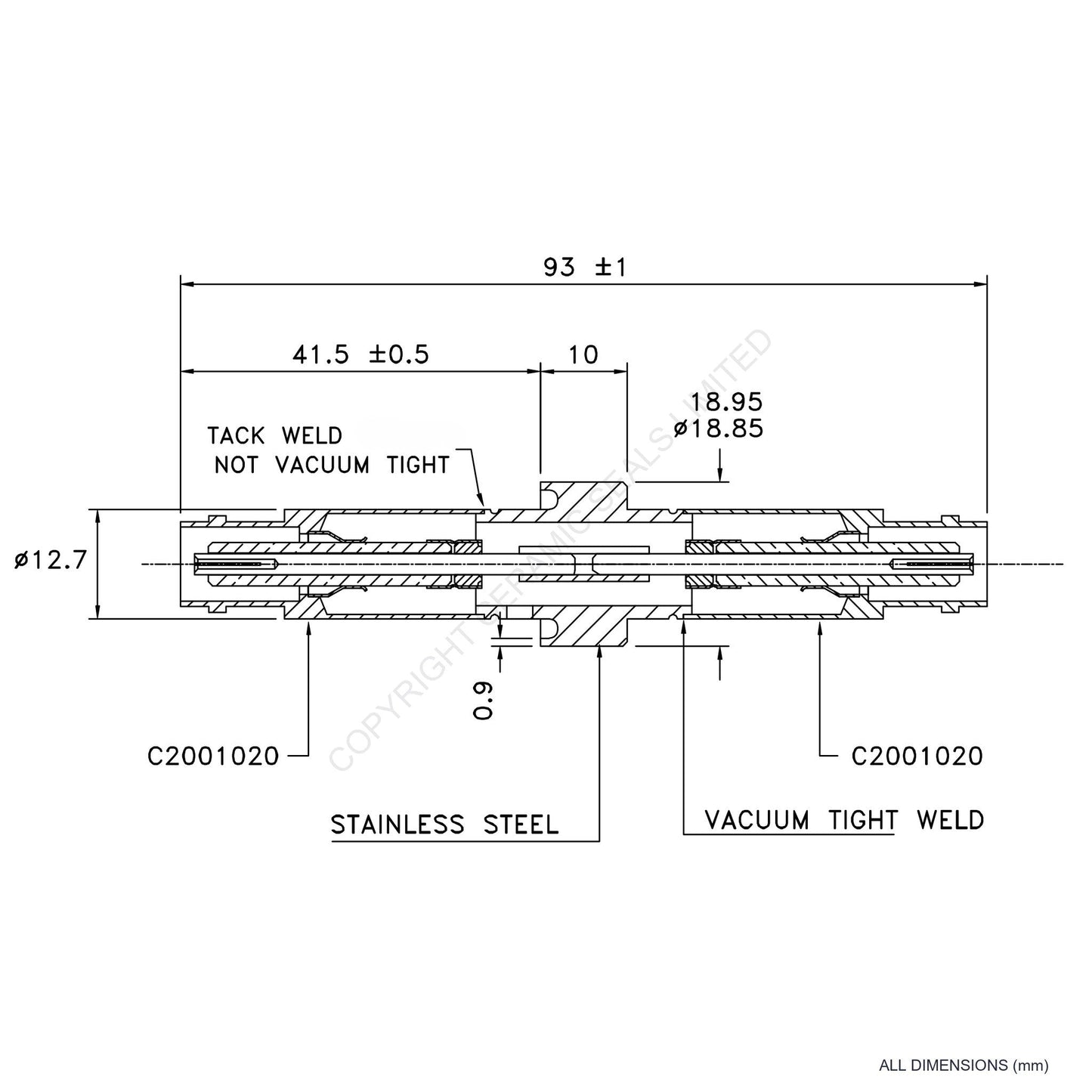

Product Code: C3007510
5kV Double Ended MHV
5.0kV Single Ended MHV connector with 18.95/18.85mm Skirt (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Air
Side
Plug
C3009001
Configuration
Double Ended
Connector
Type
MHV
Current
Rating
3A
Feedthrough
Quantity
1
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Skirt (Weld)
Termination
Size
18.95/18.85mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Vacuum
Connector
C3009001
Working
Temperature
-196°C to 450°C
Working
Voltage
5.0kV
