5kV Feedthrough

Working Voltage: 5.0kV

Current Rating: 250A

Conductor Material: OFHC Copper

Skip to product information
1 of 1
Product Code: B2503030
Estimated Lead Time: Confirmed on Request

Product Description

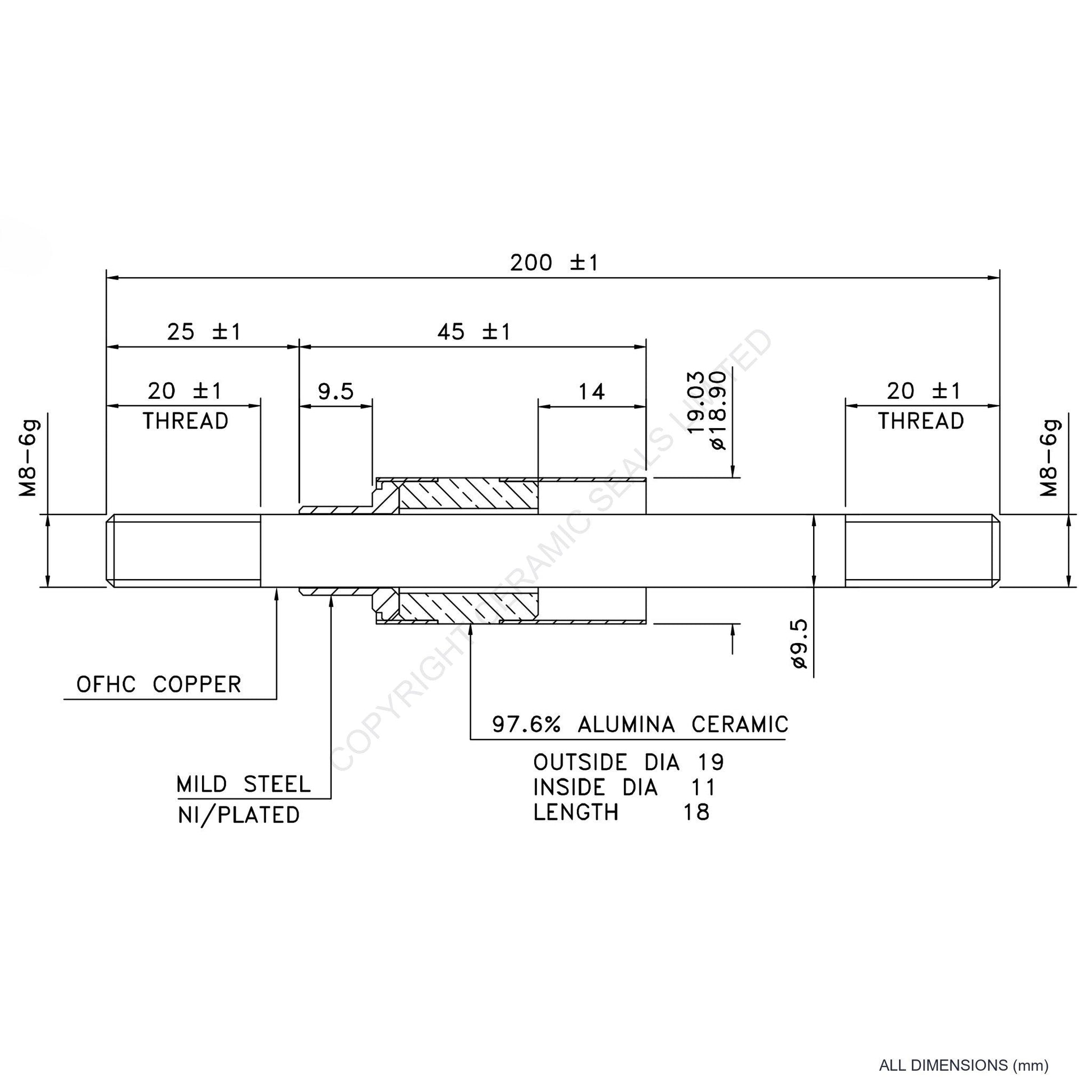

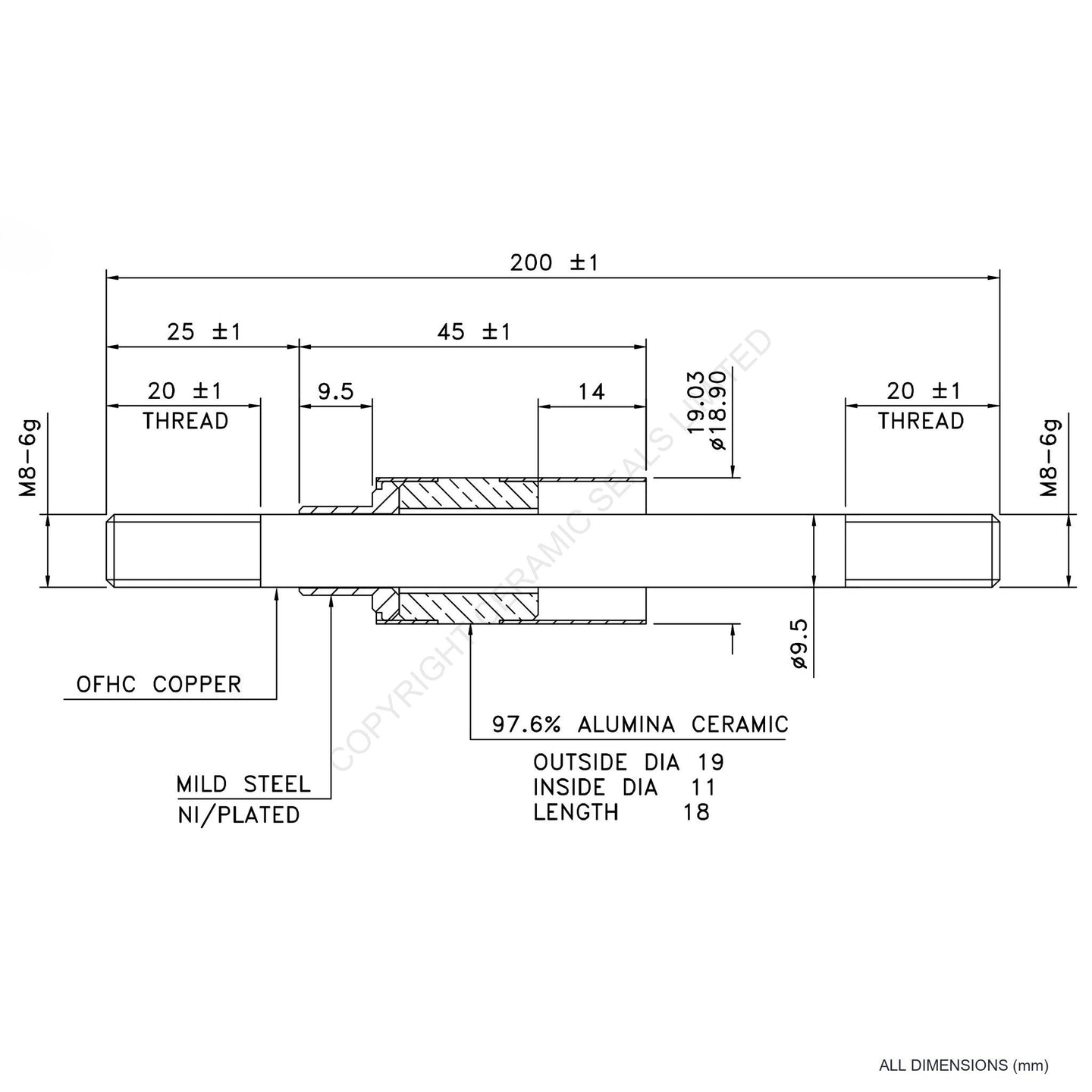

5.0kV 250A Power feedthrough with 19.03/18.90mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

View full details

General Specifications

Conductor Material OFHC Copper
Current Rating 250A
Insulating Material Alumina (96-98%)
Magnetic Yes
No Of Conductors 1
Termination Tube (Weld)
Termination Size 19.03/18.90mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
Working Voltage 5.0kV
