5kV Metal Ceramic Seal

Working Voltage: 5.0kV

Current Rating: 70A

Conductor Material: Nickel (Alloy 200)

Skip to product information
1 of 1
Product Code: B2002020
Estimated Lead Time: Confirmed on Request

Product Description

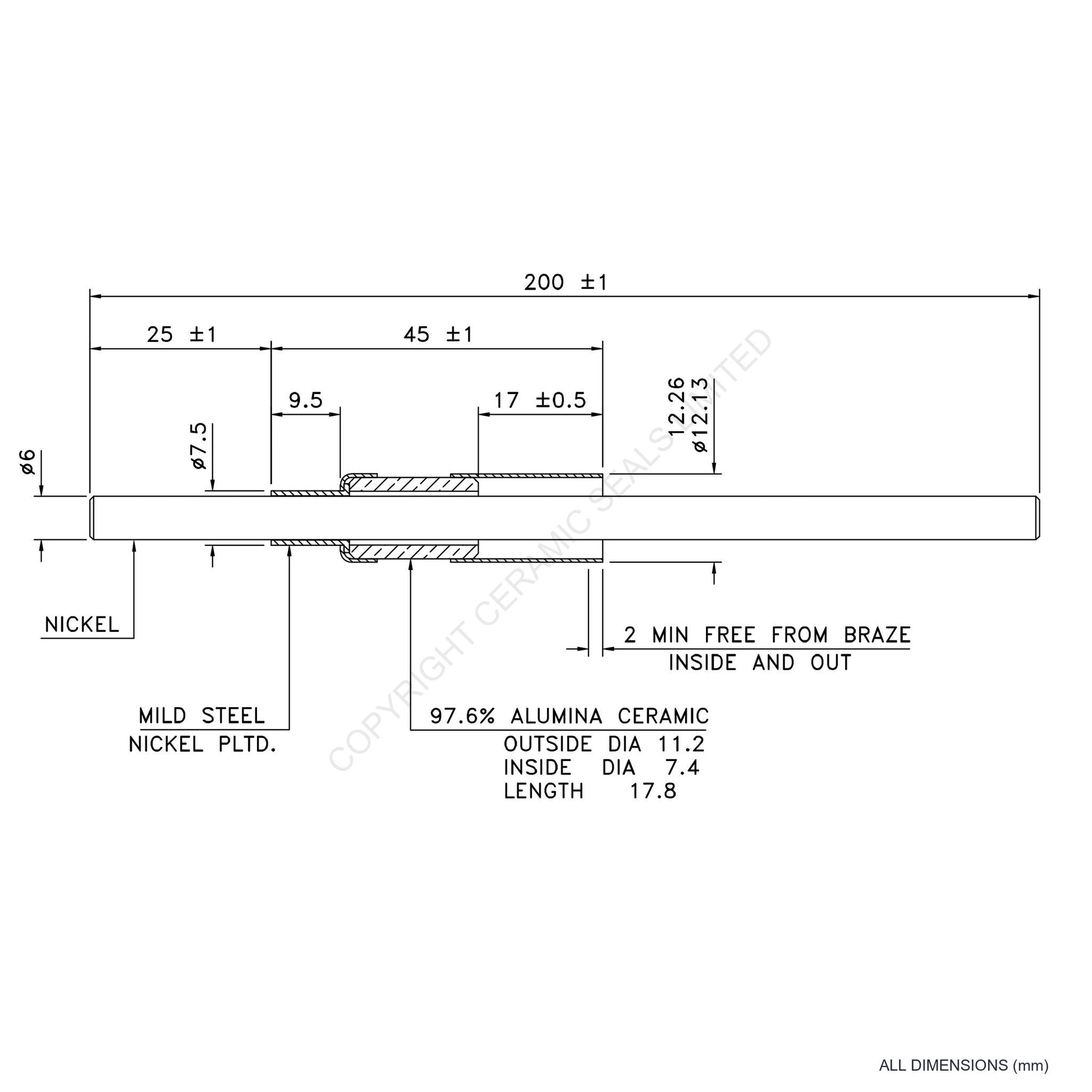

5.0kV 70A Power feedthrough with 12.26/12.13mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

View full details

General Specifications

Conductor Material Nickel (Alloy 200)
Current Rating 70A
Insulating Material Alumina (96-98%)
Magnetic Yes
No Of Conductors 1
Termination Tube (Weld)
Termination Size 12.26/12.13mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
Working Voltage 5.0kV
